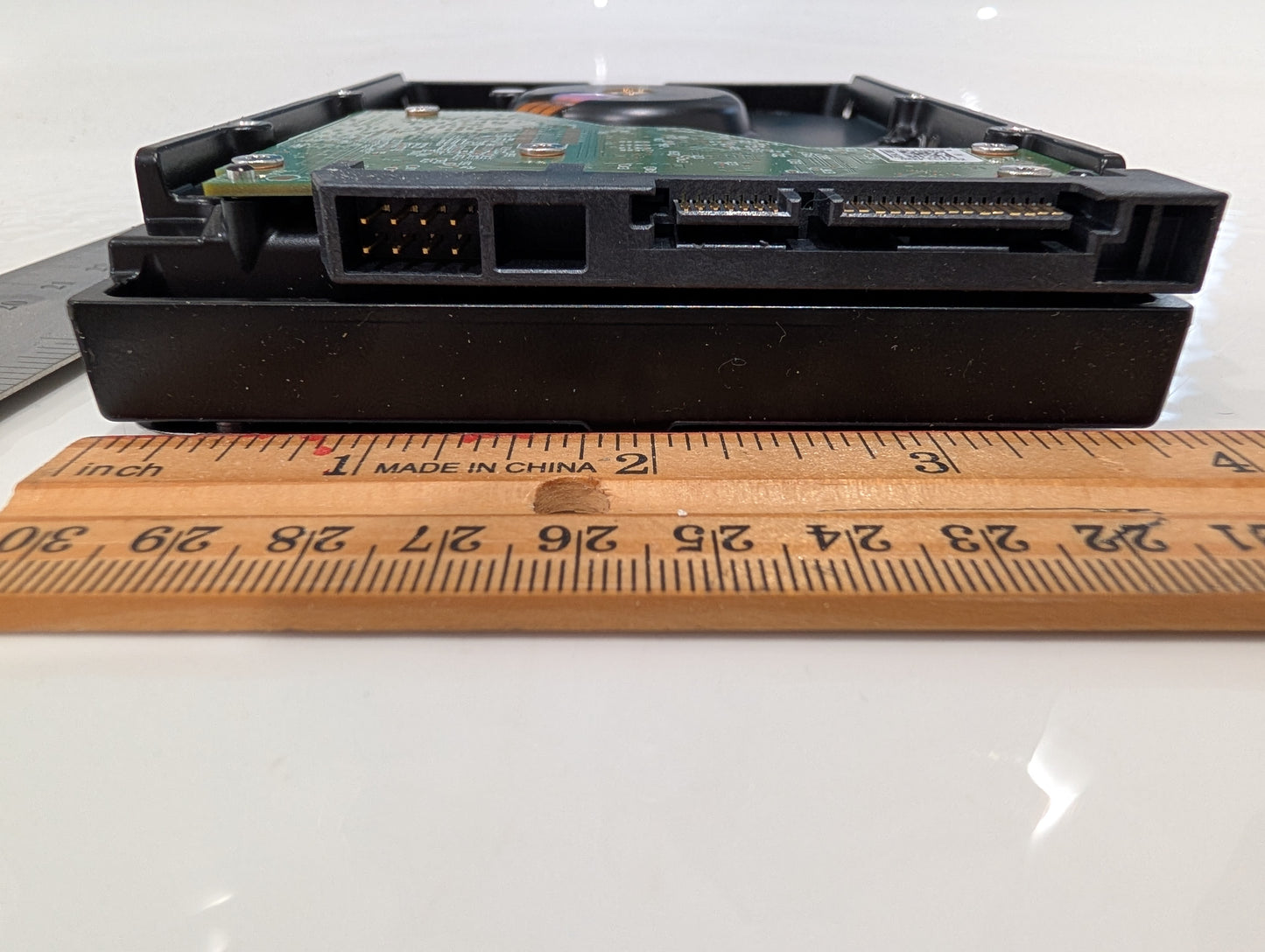

4TB Western Digital Red Plus (Used: 1485 Powered On Hours)
4TB Western Digital Red Plus (Used: 1485 Powered On Hours)
Regular price
$175.00 CAD
Regular price
Sale price
$175.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

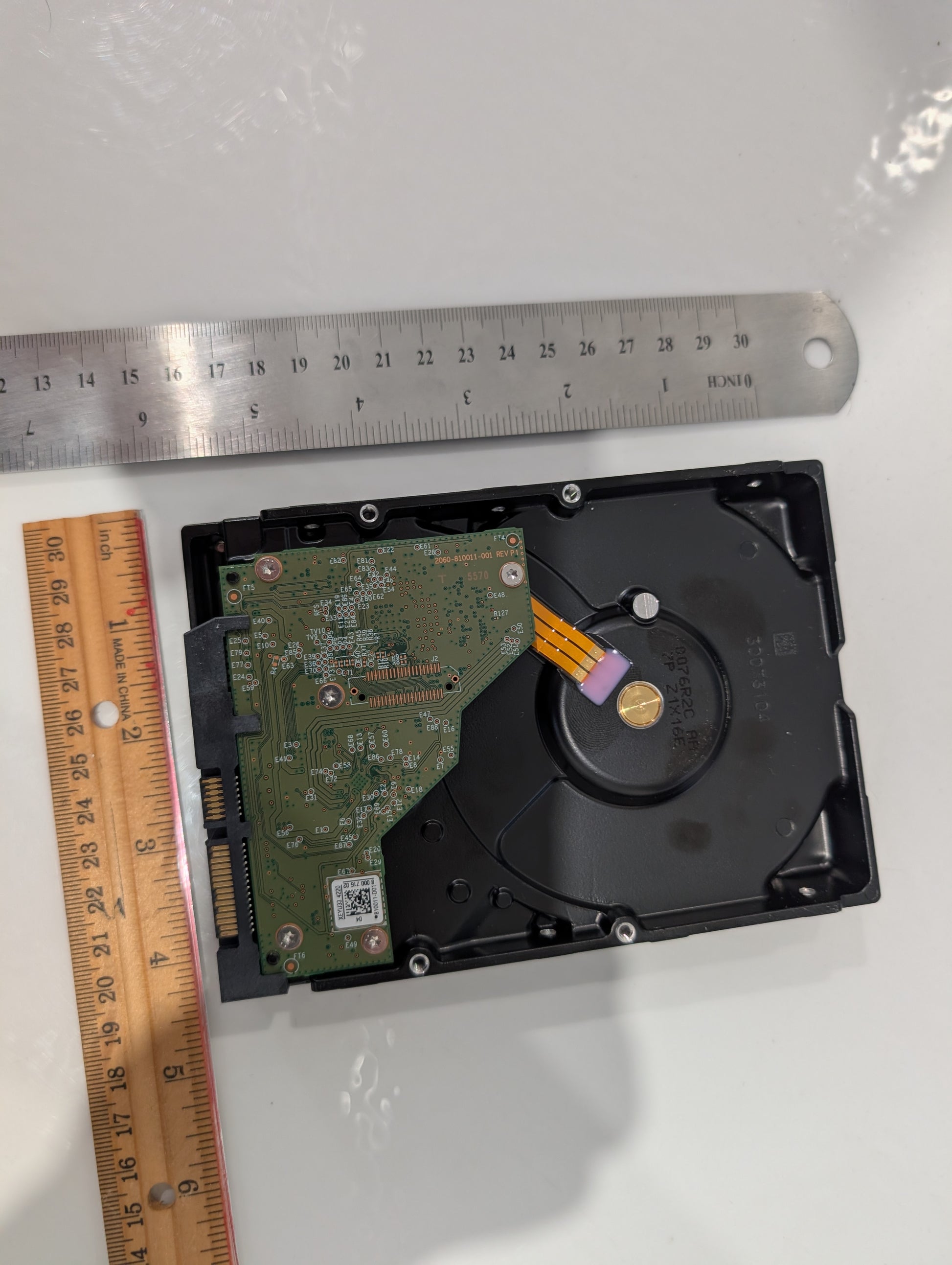

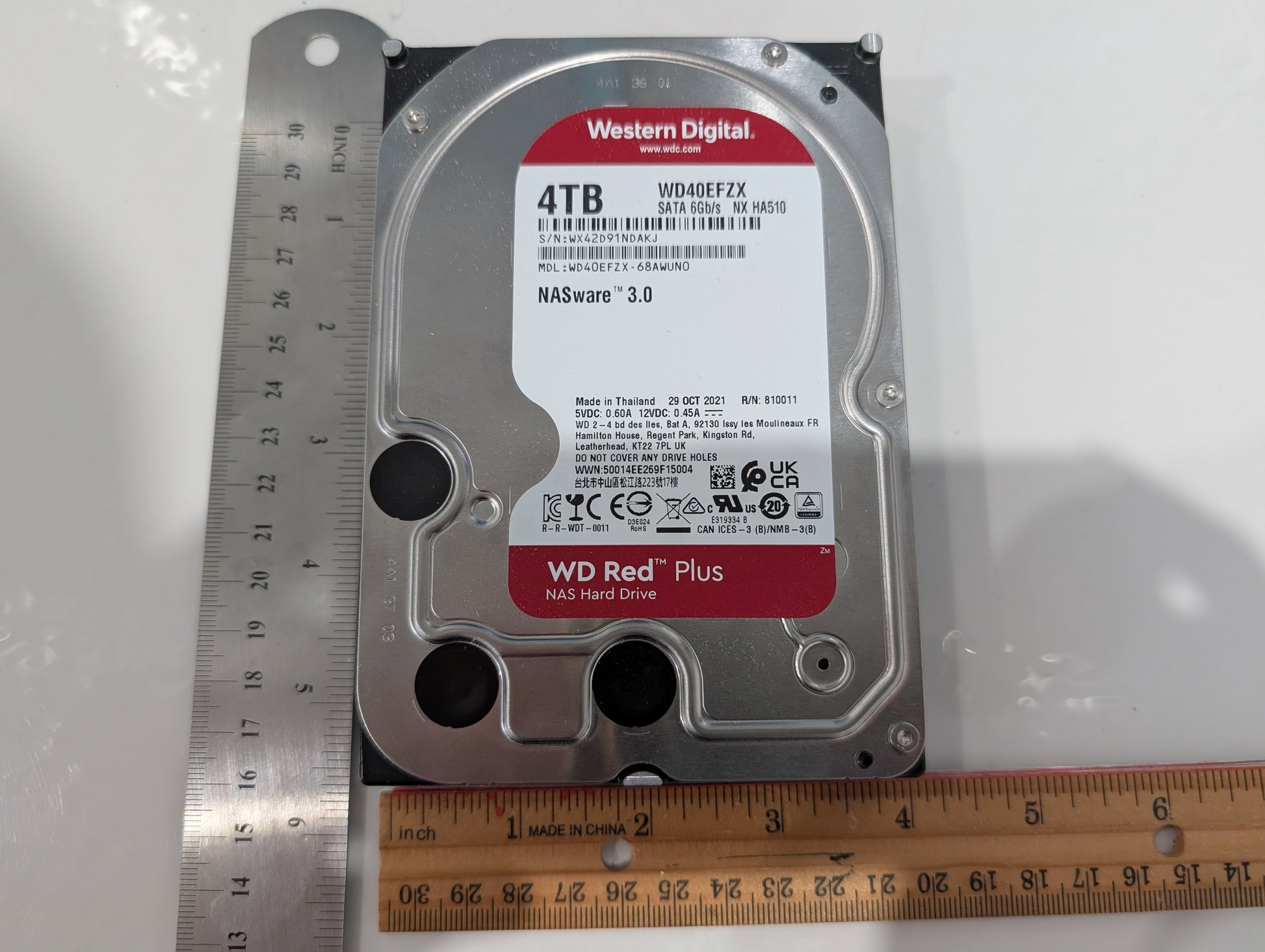

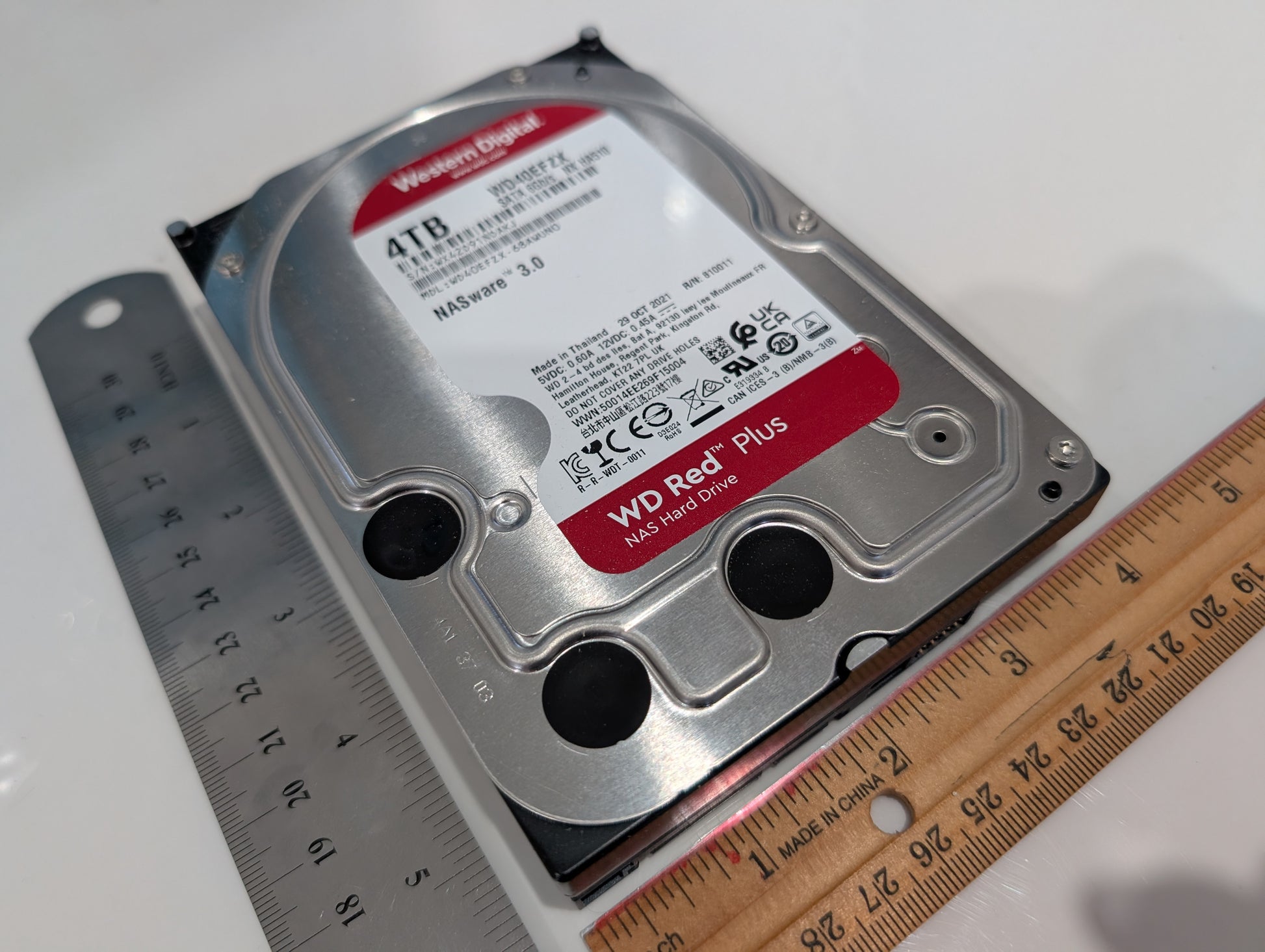

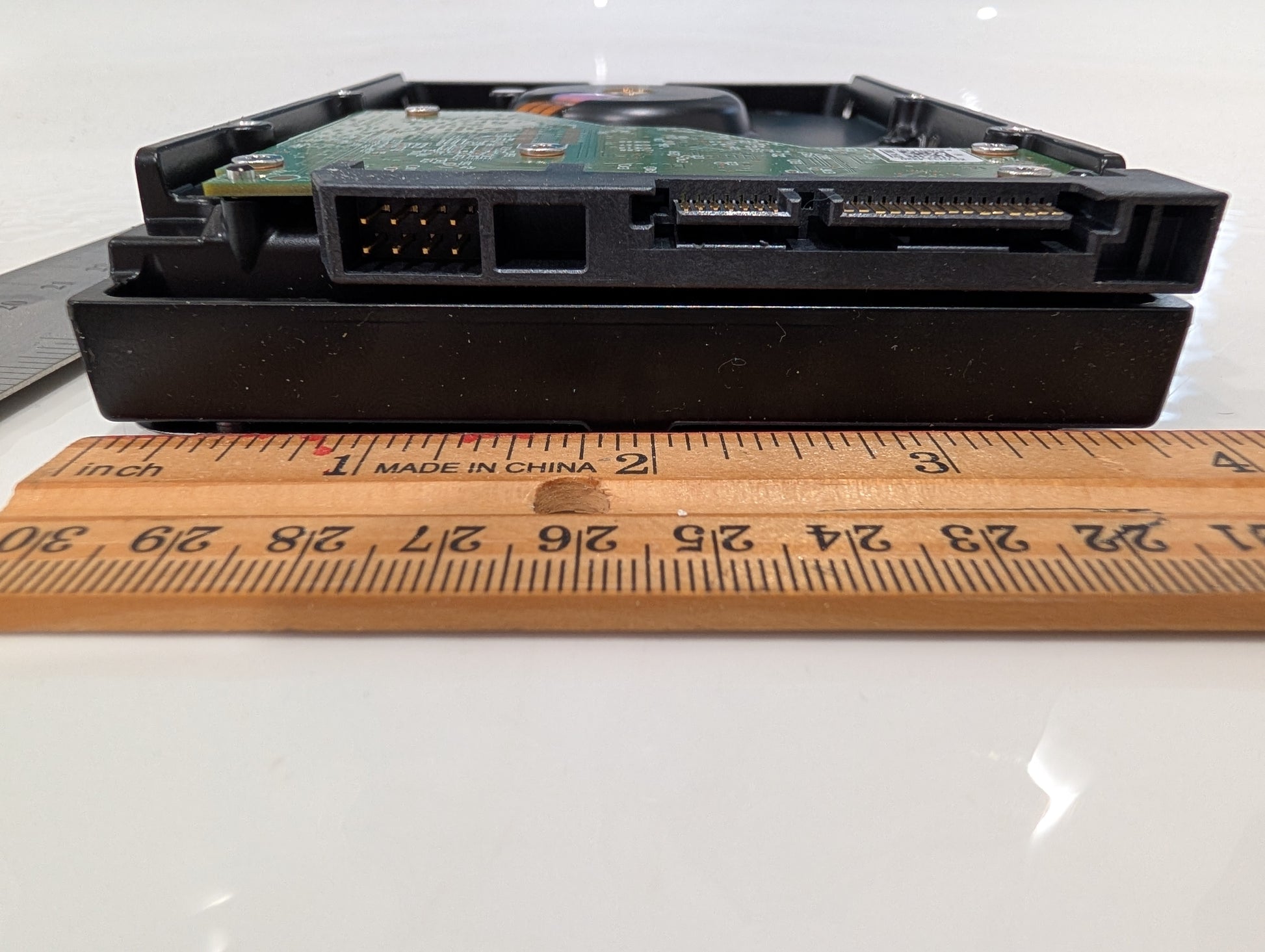

This is a used 4TB Western Digital Red Plus internal 3.5 5400RPM, 3.5", SATA III hard drive.
This drive still works perfectly and it passes multiple passes with badblocks and an extended smart test. It has ~1485 total hours powered on. I am selling this drive so I can replace it with a pool of much larger 16TB drives that take up less space.

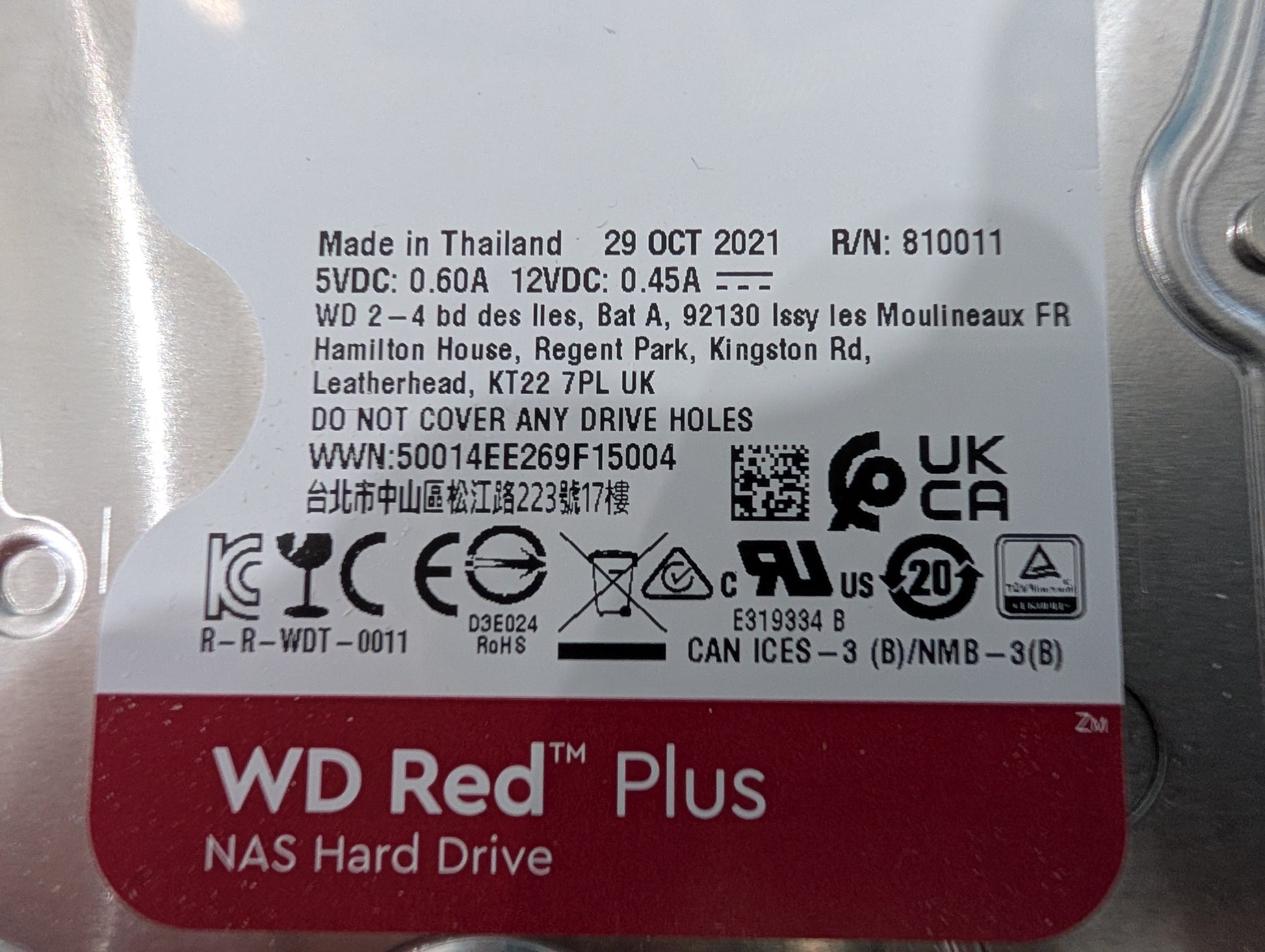

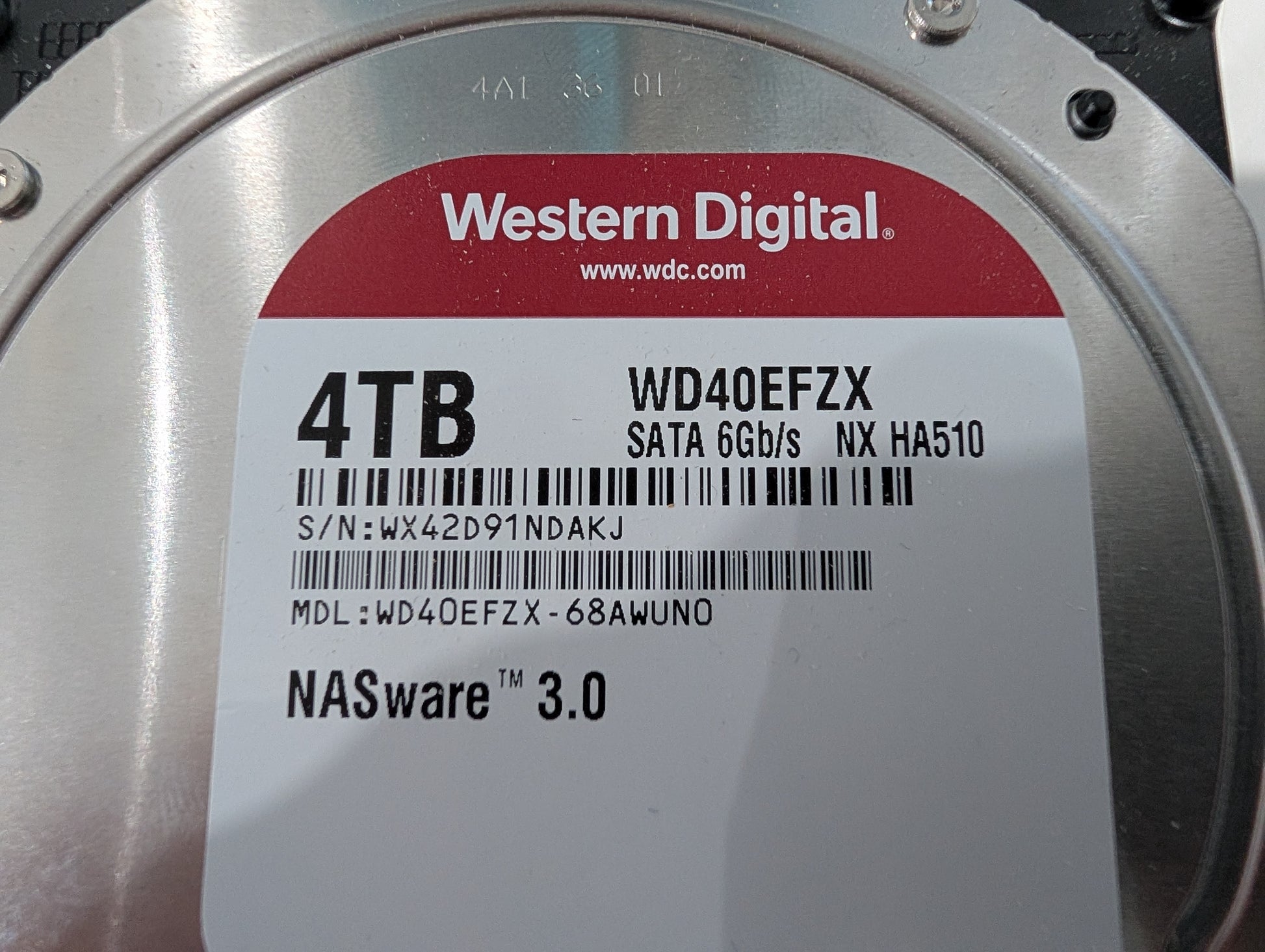

You will receive the exact same drive with the serial number shown in the images.
Since this is a used drive, it is being sold 'as is' and without warranty. I can personally certify that the output shown below is real and was actually run on this specific drive by me, and also that I ran badblocks tests on this specific drive and found no issues.
Here is the output from running fdisk -l /dev/sdc on this drive:
Disk /dev/sdc: 3.64 TiB, 4000787030016 bytes, 7814037168 sectors Disk model: EFZX-68AWUN0 Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 4096 bytes I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Here is the output from running hdparm -I /dev/sdc on this drive:
/dev/sdc:
ATA device, with non-removable media
Model Number: WDC WD40EFZX-68AWUN0
Serial Number: WD-WX42D91NDAKJ
Firmware Revision: 81.00B81
Transport: Serial, SATA 1.0a, SATA II Extensions, SATA Rev 2.5, SATA Rev 2.6, SATA Rev 3.0
Standards:
Used: unknown (minor revision code 0x006d)
Supported: 10 9 8 7 6 5
Likely used: 10
Configuration:
Logical max current
cylinders 16383 0
heads 16 0
sectors/track 63 0
--
LBA user addressable sectors: 268435455
LBA48 user addressable sectors: 7814037168
Logical Sector size: 512 bytes
Physical Sector size: 4096 bytes
Logical Sector-0 offset: 0 bytes
device size with M = 1024*1024: 3815447 MBytes
device size with M = 1000*1000: 4000787 MBytes (4000 GB)
cache/buffer size = unknown
Form Factor: 3.5 inch
Nominal Media Rotation Rate: 5400
Capabilities:
LBA, IORDY(can be disabled)
Queue depth: 32
Standby timer values: spec'd by Standard, with device specific minimum
R/W multiple sector transfer: Max = 16 Current = 16
DMA: mdma0 mdma1 mdma2 udma0 udma1 udma2 udma3 udma4 udma5 *udma6
Cycle time: min=120ns recommended=120ns
PIO: pio0 pio1 pio2 pio3 pio4
Cycle time: no flow control=120ns IORDY flow control=120ns
Commands/features:
Enabled Supported:
* SMART feature set
Security Mode feature set
* Power Management feature set
* Write cache
* Look-ahead
* WRITE_BUFFER command
* READ_BUFFER command
* NOP cmd
* DOWNLOAD_MICROCODE
* 48-bit Address feature set
* Device Configuration Overlay feature set
* Mandatory FLUSH_CACHE
* FLUSH_CACHE_EXT
* SMART error logging
* SMART self-test
* General Purpose Logging feature set
* 64-bit World wide name
* IDLE_IMMEDIATE with UNLOAD
* WRITE_UNCORRECTABLE_EXT command
* {READ,WRITE}_DMA_EXT_GPL commands
* Segmented DOWNLOAD_MICROCODE
* Gen1 signaling speed (1.5Gb/s)
* Gen2 signaling speed (3.0Gb/s)
* Gen3 signaling speed (6.0Gb/s)
* Native Command Queueing (NCQ)
* Host-initiated interface power management
* Phy event counters
* Idle-Unload when NCQ is active
* NCQ priority information
* READ_LOG_DMA_EXT equivalent to READ_LOG_EXT
Device-initiated interface power management
* Software settings preservation
* SMART Command Transport (SCT) feature set
* SCT Write Same (AC2)
* SCT Error Recovery Control (AC3)
* SCT Features Control (AC4)
* SCT Data Tables (AC5)
unknown 206[12] (vendor specific)
unknown 206[13] (vendor specific)
* DOWNLOAD MICROCODE DMA command
* WRITE BUFFER DMA command
* READ BUFFER DMA command
Security:
Master password revision code = 65534
supported
not enabled
not locked
not frozen
not expired: security count
supported: enhanced erase
448min for SECURITY ERASE UNIT. 448min for ENHANCED SECURITY ERASE UNIT.
Logical Unit WWN Device Identifier: 50014ee269f15004
NAA : 5
IEEE OUI : 0014ee
Unique ID : 269f15004
Checksum: correct
And here is the result from running smartctl -x /dev/sdc on this drive:
smartctl 7.5 2025-04-30 r5714 [x86_64-linux-7.0.0-14-generic] (local build)
Copyright (C) 2002-25, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Western Digital Red (CMR)
Device Model: WDC WD40EFZX-68AWUN0
Serial Number: WD-WX42D91NDAKJ
LU WWN Device Id: 5 0014ee 269f15004
Firmware Version: 81.00B81
User Capacity: 4,000,787,030,016 bytes [4.00 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Rotation Rate: 5400 rpm
Form Factor: 3.5 inches
Device is: In smartctl database 7.5/5706
ATA Version is: ACS-3 T13/2161-D revision 5
SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Thu Aug 6 20:23:42 2026 UTC
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Unavailable
APM feature is: Unavailable
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, NOT FROZEN [SEC1]
=== START OF READ SMART DATA SECTION ===
SMART Status not supported: Incomplete response, ATA output registers missing
SMART overall-health self-assessment test result: PASSED
Warning: This result is based on an Attribute check.
General SMART Values:
Offline data collection status: (0x00) Offline data collection activity
was never started.
Auto Offline Data Collection: Disabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: (40980) seconds.
Offline data collection
capabilities: (0x11) SMART execute Offline immediate.
No Auto Offline data collection support.
Suspend Offline collection upon new
command.
No Offline surface scan supported.
Self-test supported.
No Conveyance Self-test supported.
No Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 435) minutes.
SCT capabilities: (0x303d) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate POSR-K 200 200 051 - 0
3 Spin_Up_Time POS--K 234 225 021 - 3291
4 Start_Stop_Count -O--CK 100 100 000 - 119
5 Reallocated_Sector_Ct PO--CK 200 200 140 - 0
7 Seek_Error_Rate -OSR-K 200 200 000 - 0
9 Power_On_Hours -O--CK 098 098 000 - 1485
10 Spin_Retry_Count -O--CK 100 100 000 - 0
11 Calibration_Retry_Count -O--CK 100 100 000 - 0
12 Power_Cycle_Count -O--CK 100 100 000 - 110
192 Power-Off_Retract_Count -O--CK 200 200 000 - 54
193 Load_Cycle_Count -O--CK 200 200 000 - 407
194 Temperature_Celsius -O---K 115 108 000 - 35
196 Reallocated_Event_Count -O--CK 200 200 000 - 0
197 Current_Pending_Sector -O--CK 200 200 000 - 0
198 Offline_Uncorrectable ----CK 100 253 000 - 0
199 UDMA_CRC_Error_Count -O--CK 200 200 000 - 0
200 Multi_Zone_Error_Rate ---R-- 200 200 000 - 0
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x02 SL R/O 5 Comprehensive SMART error log
0x03 GPL R/O 6 Ext. Comprehensive SMART error log
0x04 GPL,SL R/O 8 Device Statistics log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x09 SL R/W 1 Selective self-test log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x30 GPL,SL R/O 9 IDENTIFY DEVICE data log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xa0-0xa7 GPL,SL VS 16 Device vendor specific log
0xa8-0xb6 GPL,SL VS 1 Device vendor specific log
0xb7 GPL,SL VS 78 Device vendor specific log
0xbd GPL,SL VS 1 Device vendor specific log
0xc0 GPL,SL VS 1 Device vendor specific log
0xc1 GPL VS 93 Device vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (6 sectors)
No Errors Logged
SMART Extended Self-test Log Version: 1 (1 sectors)
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Extended offline Completed without error 00% 1478 -
# 2 Extended offline Completed without error 00% 1372 -
Selective Self-tests/Logging not supported
SCT Status Version: 3
SCT Version (vendor specific): 258 (0x0102)
Device State: Active (0)
Current Temperature: 35 Celsius
Power Cycle Min/Max Temperature: 30/41 Celsius
Lifetime Min/Max Temperature: 18/42 Celsius
Under/Over Temperature Limit Count: 0/0
Vendor specific:
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SCT Temperature History Version: 2
Temperature Sampling Period: 1 minute
Temperature Logging Interval: 1 minute
Min/Max recommended Temperature: 0/65 Celsius
Min/Max Temperature Limit: -41/85 Celsius
Temperature History Size (Index): 478 (244)
Index Estimated Time Temperature Celsius
245 2026-08-06 12:26 34 ***************
... ..( 42 skipped). .. ***************
288 2026-08-06 13:09 34 ***************
289 2026-08-06 13:10 35 ****************
... ..( 4 skipped). .. ****************
294 2026-08-06 13:15 35 ****************
295 2026-08-06 13:16 37 ******************
... ..( 63 skipped). .. ******************
359 2026-08-06 14:20 37 ******************
360 2026-08-06 14:21 38 *******************
... ..( 4 skipped). .. *******************
365 2026-08-06 14:26 38 *******************
366 2026-08-06 14:27 37 ******************
... ..( 2 skipped). .. ******************
369 2026-08-06 14:30 37 ******************
370 2026-08-06 14:31 36 *****************
... ..( 3 skipped). .. *****************
374 2026-08-06 14:35 36 *****************
375 2026-08-06 14:36 35 ****************
... ..( 4 skipped). .. ****************
380 2026-08-06 14:41 35 ****************
381 2026-08-06 14:42 34 ***************
... ..( 10 skipped). .. ***************
392 2026-08-06 14:53 34 ***************
393 2026-08-06 14:54 33 **************
... ..( 27 skipped). .. **************
421 2026-08-06 15:22 33 **************
422 2026-08-06 15:23 32 *************
423 2026-08-06 15:24 33 **************
... ..( 9 skipped). .. **************
433 2026-08-06 15:34 33 **************
434 2026-08-06 15:35 34 ***************
... ..( 23 skipped). .. ***************
458 2026-08-06 15:59 34 ***************
459 2026-08-06 16:00 35 ****************
... ..( 79 skipped). .. ****************
61 2026-08-06 17:20 35 ****************
62 2026-08-06 17:21 34 ***************
... ..( 20 skipped). .. ***************
83 2026-08-06 17:42 34 ***************
84 2026-08-06 17:43 33 **************
... ..(125 skipped). .. **************
210 2026-08-06 19:49 33 **************
211 2026-08-06 19:50 34 ***************
... ..( 32 skipped). .. ***************
244 2026-08-06 20:23 34 ***************
SMART WRITE LOG does not return COUNT and LBA_LOW register
SCT (Get) Error Recovery Control command failed
Device Statistics (GP Log 0x04)
Page Offset Size Value Flags Description
0x01 ===== = = === == General Statistics (rev 1) ==
0x01 0x008 4 110 --- Lifetime Power-On Resets
0x01 0x010 4 1485 --- Power-on Hours
0x01 0x018 6 89692281251 --- Logical Sectors Written
0x01 0x020 6 514157931 --- Number of Write Commands
0x01 0x028 6 127178538145 --- Logical Sectors Read
0x01 0x030 6 597117351 --- Number of Read Commands
0x01 0x038 6 1051032704 --- Date and Time TimeStamp
0x03 ===== = = === == Rotating Media Statistics (rev 1) ==
0x03 0x008 4 1480 --- Spindle Motor Power-on Hours
0x03 0x010 4 911 --- Head Flying Hours
0x03 0x018 4 462 --- Head Load Events
0x03 0x020 4 0 --- Number of Reallocated Logical Sectors
0x03 0x028 4 0 --- Read Recovery Attempts
0x03 0x030 4 0 --- Number of Mechanical Start Failures
0x03 0x038 4 0 --- Number of Realloc. Candidate Logical Sectors
0x03 0x040 4 54 --- Number of High Priority Unload Events
0x04 ===== = = === == General Errors Statistics (rev 1) ==
0x04 0x008 4 0 --- Number of Reported Uncorrectable Errors
0x04 0x010 4 0 --- Resets Between Cmd Acceptance and Completion
0x05 ===== = = === == Temperature Statistics (rev 1) ==
0x05 0x008 1 36 --- Current Temperature
0x05 0x010 1 36 --- Average Short Term Temperature
0x05 0x018 1 34 --- Average Long Term Temperature
0x05 0x020 1 42 --- Highest Temperature
0x05 0x028 1 22 --- Lowest Temperature
0x05 0x030 1 39 --- Highest Average Short Term Temperature
0x05 0x038 1 29 --- Lowest Average Short Term Temperature
0x05 0x040 1 34 --- Highest Average Long Term Temperature
0x05 0x048 1 32 --- Lowest Average Long Term Temperature
0x05 0x050 4 0 --- Time in Over-Temperature
0x05 0x058 1 65 --- Specified Maximum Operating Temperature
0x05 0x060 4 0 --- Time in Under-Temperature
0x05 0x068 1 0 --- Specified Minimum Operating Temperature
0x06 ===== = = === == Transport Statistics (rev 1) ==
0x06 0x008 4 669 --- Number of Hardware Resets
0x06 0x010 4 249 --- Number of ASR Events
0x06 0x018 4 0 --- Number of Interface CRC Errors
|||_ C monitored condition met
||__ D supports DSN
|___ N normalized value
Pending Defects log (GP Log 0x0c) not supported
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x0001 2 0 Command failed due to ICRC error
0x0002 2 0 R_ERR response for data FIS
0x0003 2 0 R_ERR response for device-to-host data FIS
0x0004 2 0 R_ERR response for host-to-device data FIS
0x0005 2 0 R_ERR response for non-data FIS
0x0006 2 0 R_ERR response for device-to-host non-data FIS
0x0007 2 0 R_ERR response for host-to-device non-data FIS
0x0008 2 0 Device-to-host non-data FIS retries
0x0009 2 33 Transition from drive PhyRdy to drive PhyNRdy
0x000a 2 34 Device-to-host register FISes sent due to a COMRESET
0x000b 2 0 CRC errors within host-to-device FIS
0x000d 2 0 Non-CRC errors within host-to-device FIS
0x000f 2 0 R_ERR response for host-to-device data FIS, CRC
0x0012 2 0 R_ERR response for host-to-device non-data FIS, CRC
0x8000 4 107919 Vendor specific
Share
