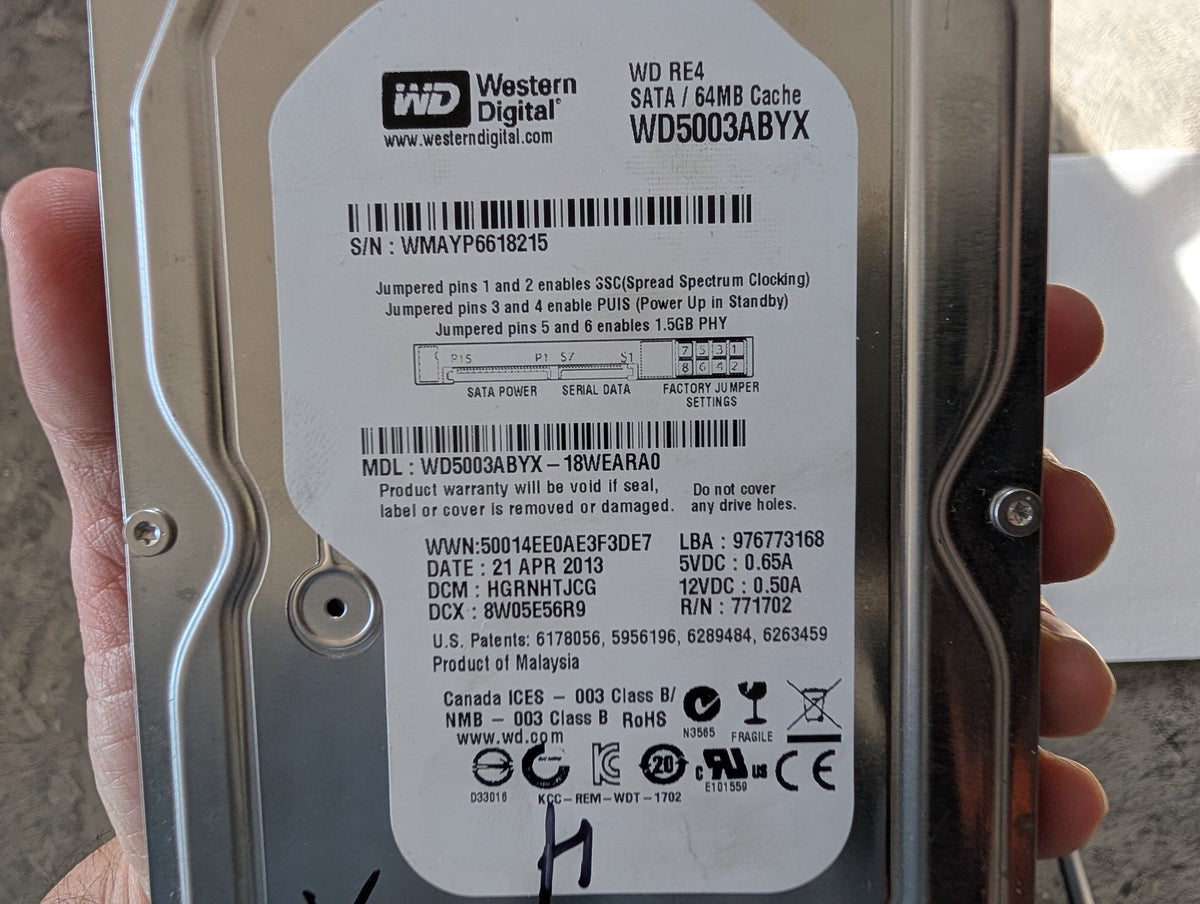

500GB Western Digital, WDC WD5003ABYX-18WERA0, (smart_error_count=5)
500GB Western Digital, WDC WD5003ABYX-18WERA0, (smart_error_count=5)
Regular price
$8.35 CAD
Regular price
Sale price
$8.35 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
500GB, Western Digital WDC WD5003ABYX-18WERA0, used hard drive, 7200 RPM, SATA 2.6, 3.0 Gb/s, with 55853 powered-on hours.
Diagnostic notes: smart_error_count=5. Review the recorded results below before purchase.
Important notes
- This drive weighs 462 grams.
- Pending sectors: 0
- Reallocated sectors: 0
- Logged SMART errors: 5
- CRC errors: 0
- spin_retry_count: 0
- Reallocation events: 0
- Offline uncorrectable sectors: 0
- Power cycles: 104
- Load cycles: 15
- SMART overall health: PASSED
- Latest Extended offline self-test: Completed without error
- Badblocks was run using the standard four-pass pattern test, and 0 bad blocks were found.

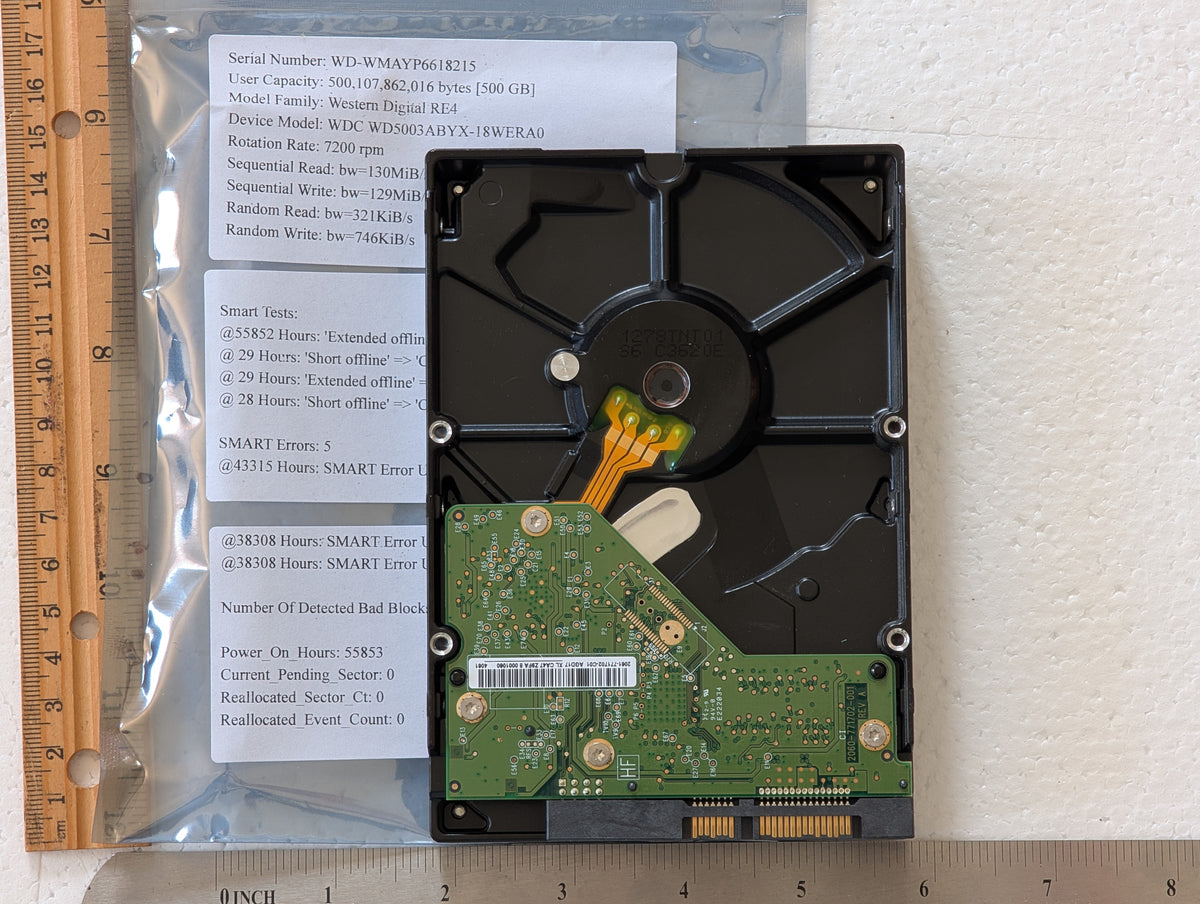

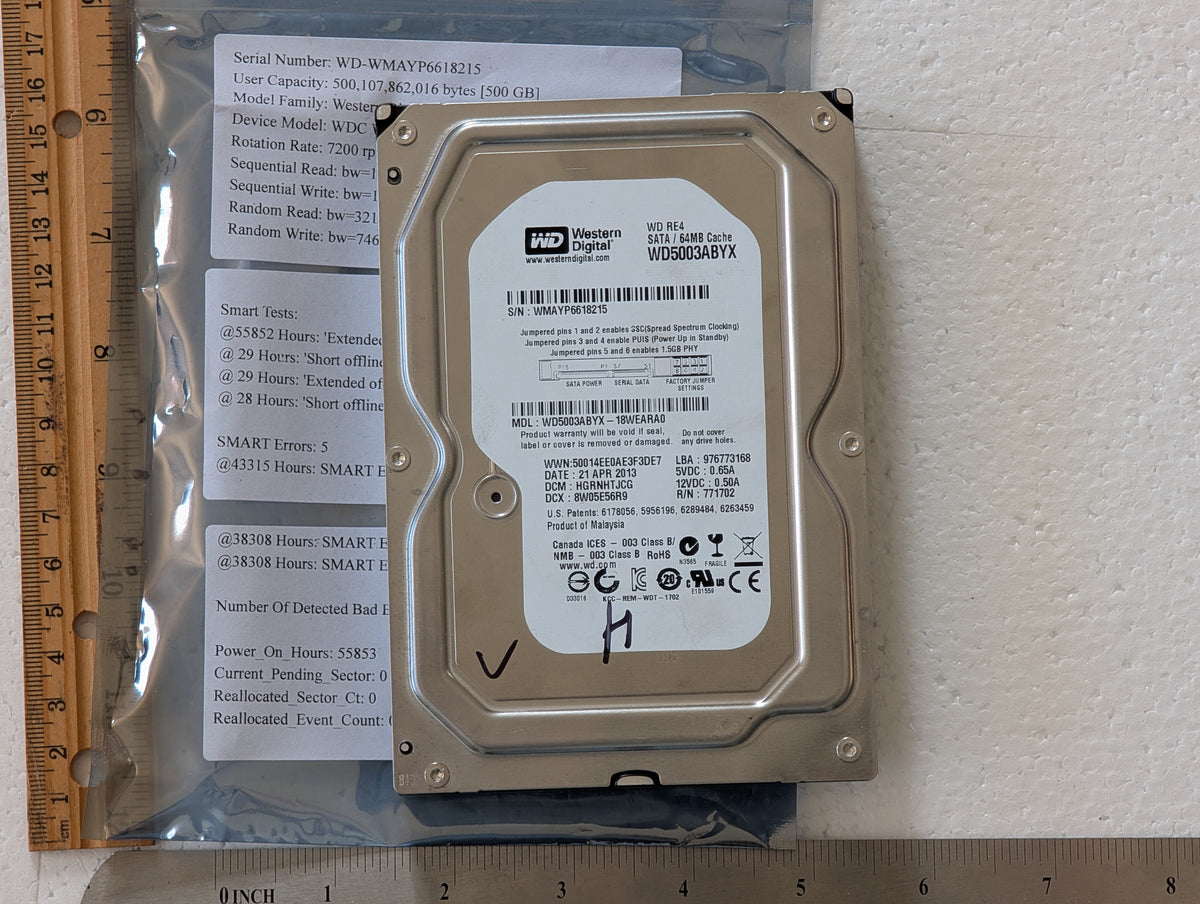

You will receive this specific drive, identified in this listing as serial WD-WMAYP6618215.
This used drive is sold 'as is', with no warranty on its functionality. I do warrant that the testing described in this listing was actually performed on this specific drive and that the SMART output reproduced below is the output obtained from this drive. In general, SMART data can be erased or tampered with, for example to reset the reported powered-on hours to zero. I certify that I have not erased, reset, or otherwise tampered with this drive's SMART data, but I cannot certify that a previous owner has not done so.
Counters such as powered-on hours and power-cycle counts may differ slightly from the recorded output because the drive may have been powered on again between the time the SMART output was captured and packaging for shipment.
Recorded fio performance tests
These tests were performed over a USB interface. The demonstrated transfer speeds may be artificially limited by the USB 3 interface.
SEQUENTIAL READ: bw=130MiB/s (136MB/s) SEQUENTIAL WRITE: bw=129MiB/s (136MB/s) RANDOM READ: bw=321KiB/s (329kB/s) RANDOM WRITE: bw=746KiB/s (764kB/s) RANDOM READ (Queue Depth=1): bw=315KiB/s (322kB/s)
Output from fdisk -l /dev/sdd
Disk /dev/sdd: 465.76 GiB, 500107862016 bytes, 976773168 sectors Disk model: USB3.0 DISK02 Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes
Output from hdparm -I /dev/sdd
/dev/sdd:
ATA device, with non-removable media
Model Number: WDC WD5003ABYX-18WERA0
Serial Number: WD-WMAYP6618215
Firmware Revision: 01.01S03
Transport: Serial, SATA 1.0a, SATA II Extensions, SATA Rev 2.5, SATA Rev 2.6
Standards:
Supported: 8 7 6 5
Likely used: 8
Configuration:
Logical max current
cylinders 16383 16383
heads 16 16
sectors/track 63 63
--
CHS current addressable sectors: 16514064
LBA user addressable sectors: 268435455
LBA48 user addressable sectors: 976773168
Logical/Physical Sector size: 512 bytes
device size with M = 1024*1024: 476940 MBytes
device size with M = 1000*1000: 500107 MBytes (500 GB)
cache/buffer size = unknown
Nominal Media Rotation Rate: 7200
Capabilities:
LBA, IORDY(can be disabled)
Queue depth: 32
Standby timer values: spec'd by Standard, with device specific minimum
R/W multiple sector transfer: Max = 16 Current = 0
Advanced power management level: 128
DMA: mdma0 mdma1 mdma2 udma0 udma1 udma2 udma3 udma4 udma5 *udma6
Cycle time: min=120ns recommended=120ns
PIO: pio0 pio1 pio2 pio3 pio4
Cycle time: no flow control=120ns IORDY flow control=120ns
Commands/features:
Enabled Supported:
* SMART feature set
Security Mode feature set
* Power Management feature set
* Write cache
* Look-ahead
* Host Protected Area feature set
* WRITE_BUFFER command
* READ_BUFFER command
* NOP cmd
* DOWNLOAD_MICROCODE
* Advanced Power Management feature set
Power-Up In Standby feature set
* SET_FEATURES required to spinup after power up
SET_MAX security extension
* 48-bit Address feature set
* Device Configuration Overlay feature set
* Mandatory FLUSH_CACHE
* FLUSH_CACHE_EXT
* SMART error logging
* SMART self-test
* General Purpose Logging feature set
* WRITE_{DMA|MULTIPLE}_FUA_EXT
* 64-bit World wide name
* IDLE_IMMEDIATE with UNLOAD
* WRITE_UNCORRECTABLE_EXT command
* {READ,WRITE}_DMA_EXT_GPL commands
* Segmented DOWNLOAD_MICROCODE
* Gen1 signaling speed (1.5Gb/s)
* Gen2 signaling speed (3.0Gb/s)
* Native Command Queueing (NCQ)
* Phy event counters
* Idle-Unload when NCQ is active
* NCQ priority information
DMA Setup Auto-Activate optimization
* Software settings preservation
* SMART Command Transport (SCT) feature set
* SCT Read/Write Long (AC1), obsolete
* SCT Write Same (AC2)
* SCT Error Recovery Control (AC3)
* SCT Features Control (AC4)
* SCT Data Tables (AC5)
unknown 206[12] (vendor specific)
unknown 206[13] (vendor specific)
Security:
Master password revision code = 65534
supported
not enabled
not locked
not frozen
not expired: security count
supported: enhanced erase
82min for SECURITY ERASE UNIT. 82min for ENHANCED SECURITY ERASE UNIT.
Logical Unit WWN Device Identifier: 50014ee0ae4f8625
NAA : 5
IEEE OUI : 0014ee
Unique ID : 0ae4f8625
Checksum: correct
Output from smartctl -x /dev/sdd
smartctl 7.5 2025-04-30 r5714 [x86_64-linux-7.0.0-31-generic] (local build)
Copyright (C) 2002-25, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Western Digital RE4
Device Model: WDC WD5003ABYX-18WERA0
Serial Number: WD-WMAYP6618215
LU WWN Device Id: 5 0014ee 0ae4f8625
Add. Product Id: DELL(tm)
Firmware Version: 01.01S03
User Capacity: 500,107,862,016 bytes [500 GB]
Sector Size: 512 bytes logical/physical
Rotation Rate: 7200 rpm
Device is: In smartctl database 7.5/5706
ATA Version is: ATA8-ACS (minor revision not indicated)
SATA Version is: SATA 2.6, 3.0 Gb/s
Local Time is: Tue Sep 15 03:03:27 2026 UTC
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Unavailable
APM level is: 128 (minimum power consumption without standby)
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, NOT FROZEN [SEC1]
=== START OF READ SMART DATA SECTION ===
SMART Status not supported: Incomplete response, ATA output registers missing
SMART overall-health self-assessment test result: PASSED
Warning: This result is based on an Attribute check.
General SMART Values:
Offline data collection status: (0x82) Offline data collection activity
was completed without error.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 8160) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 87) minutes.
Conveyance self-test routine
recommended polling time: ( 5) minutes.
SCT capabilities: (0x303f) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate POSR-K 200 200 051 - 40
3 Spin_Up_Time POS--K 141 137 021 - 3916
4 Start_Stop_Count -O--CK 100 100 000 - 119
5 Reallocated_Sector_Ct PO--CK 200 200 140 - 0
7 Seek_Error_Rate -OSR-K 200 200 000 - 0
9 Power_On_Hours -O--CK 024 024 000 - 55853
10 Spin_Retry_Count -O--CK 100 100 000 - 0
11 Calibration_Retry_Count -O--CK 100 100 000 - 0
12 Power_Cycle_Count -O--CK 100 100 000 - 104
192 Power-Off_Retract_Count -O--CK 200 200 000 - 103
193 Load_Cycle_Count -O--CK 200 200 000 - 15
194 Temperature_Celsius -O---K 106 102 000 - 37 (Min/Max 23/42)
196 Reallocated_Event_Count -O--CK 200 200 000 - 0
197 Current_Pending_Sector -O--CK 200 200 000 - 0
198 Offline_Uncorrectable ----CK 200 200 000 - 0
199 UDMA_CRC_Error_Count -O--CK 200 200 000 - 0
200 Multi_Zone_Error_Rate ---R-- 200 200 000 - 0
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x02 SL R/O 5 Comprehensive SMART error log
0x03 GPL R/O 6 Ext. Comprehensive SMART error log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x09 SL R/W 1 Selective self-test log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xa0-0xa7 GPL,SL VS 16 Device vendor specific log
0xa8-0xb5 GPL,SL VS 1 Device vendor specific log
0xb6 GPL VS 1 Device vendor specific log
0xb7 GPL,SL VS 1 Device vendor specific log
0xbd GPL,SL VS 1 Device vendor specific log
0xc0 GPL,SL VS 1 Device vendor specific log
0xc1 GPL VS 24 Device vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (6 sectors)
Device Error Count: 5
CR = Command Register
FEATR = Features Register
COUNT = Count (was: Sector Count) Register
LBA_48 = Upper bytes of LBA High/Mid/Low Registers ] ATA-8
LH = LBA High (was: Cylinder High) Register ] LBA
LM = LBA Mid (was: Cylinder Low) Register ] Register
LL = LBA Low (was: Sector Number) Register ]
DV = Device (was: Device/Head) Register
DC = Device Control Register
ER = Error register
ST = Status register
Powered_Up_Time is measured from power on, and printed as
DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,
SS=sec, and sss=millisec. It "wraps" after 49.710 days.
Error 5 [4] occurred at disk power-on lifetime: 43315 hours (1804 days + 19 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 51 02 80 00 00 18 08 9a bc 40 00 Error: UNC at LBA = 0x18089abc = 403217084
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
60 02 80 00 00 00 00 18 08 98 d2 40 00 17:41:02.285 READ FPDMA QUEUED
60 02 80 00 00 00 00 18 08 96 52 40 00 17:41:02.282 READ FPDMA QUEUED
60 02 80 00 00 00 00 18 08 93 d2 40 00 17:41:02.280 READ FPDMA QUEUED
60 02 80 00 00 00 00 18 08 91 52 40 00 17:41:02.276 READ FPDMA QUEUED
60 02 80 00 00 00 00 18 08 8e d2 40 00 17:41:02.274 READ FPDMA QUEUED
Error 4 [3] occurred at disk power-on lifetime: 38308 hours (1596 days + 4 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 51 00 08 00 00 16 38 89 2c 40 00 Error: UNC at LBA = 0x1638892c = 372803884
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
60 00 08 00 00 00 00 16 38 89 2a 40 00 06:19:22.635 READ FPDMA QUEUED
60 00 08 00 00 00 00 16 3a 82 da 40 00 06:19:22.635 READ FPDMA QUEUED
60 00 90 00 08 00 00 17 2a 88 82 40 00 06:19:22.611 READ FPDMA QUEUED
60 00 80 00 00 00 00 17 2a 88 02 40 00 06:19:22.611 READ FPDMA QUEUED
60 00 08 00 08 00 00 17 2a 87 fa 40 00 06:19:22.601 READ FPDMA QUEUED
Error 3 [2] occurred at disk power-on lifetime: 38308 hours (1596 days + 4 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 51 00 08 00 00 15 4c 87 b6 40 00 Error: UNC at LBA = 0x154c87b6 = 357337014
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
60 00 08 00 00 00 00 15 4c 87 b2 40 00 06:16:51.056 READ FPDMA QUEUED
60 00 04 00 00 00 00 15 4c 87 b2 40 00 06:16:51.040 READ FPDMA QUEUED
2f 00 00 00 01 00 00 00 00 00 10 40 00 06:16:50.981 READ LOG EXT
60 00 08 00 00 00 00 15 4c 87 b2 40 00 06:16:48.234 READ FPDMA QUEUED
60 00 80 00 08 00 00 15 65 88 7a 40 00 06:16:48.206 READ FPDMA QUEUED
Error 2 [1] occurred at disk power-on lifetime: 38308 hours (1596 days + 4 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 51 00 08 00 00 15 4c 87 b6 40 00 Error: UNC at LBA = 0x154c87b6 = 357337014
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
60 00 08 00 00 00 00 15 4c 87 b2 40 00 06:16:48.234 READ FPDMA QUEUED
60 00 80 00 08 00 00 15 65 88 7a 40 00 06:16:48.206 READ FPDMA QUEUED
60 00 80 00 00 00 00 15 65 87 fa 40 00 06:16:48.206 READ FPDMA QUEUED
60 00 08 00 08 00 00 15 65 87 f2 40 00 06:16:48.206 READ FPDMA QUEUED
60 00 40 00 00 00 00 15 65 87 b2 40 00 06:16:48.206 READ FPDMA QUEUED
Error 1 [0] occurred at disk power-on lifetime: 38308 hours (1596 days + 4 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 51 00 08 00 00 15 14 87 a7 40 00 Error: UNC at LBA = 0x151487a7 = 353666983
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
60 00 08 00 00 00 00 15 14 87 a2 40 00 06:14:53.981 READ FPDMA QUEUED
60 00 08 00 00 00 00 16 c0 87 b2 40 00 06:14:53.207 READ FPDMA QUEUED
60 00 10 00 20 00 00 1a 45 d4 02 40 00 06:14:53.171 READ FPDMA QUEUED
60 00 38 00 18 00 00 1a 45 8c 5a 40 00 06:14:53.171 READ FPDMA QUEUED
60 00 10 00 10 00 00 1a 45 4a 82 40 00 06:14:53.171 READ FPDMA QUEUED
SMART Extended Self-test Log Version: 1 (1 sectors)
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Extended offline Completed without error 00% 55852 -
# 2 Short offline Completed without error 00% 29 -
# 3 Extended offline Completed without error 00% 29 -
# 4 Short offline Completed without error 00% 28 -
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
SCT Status Version: 3
SCT Version (vendor specific): 258 (0x0102)
Device State: Active (0)
Current Temperature: 37 Celsius
Power Cycle Min/Max Temperature: 23/42 Celsius
Lifetime Min/Max Temperature: 23/42 Celsius
Under/Over Temperature Limit Count: 0/0
SCT Temperature History Version: 2
Temperature Sampling Period: 1 minute
Temperature Logging Interval: 1 minute
Min/Max recommended Temperature: 0/60 Celsius
Min/Max Temperature Limit: -41/85 Celsius
Temperature History Size (Index): 478 (216)
Index Estimated Time Temperature Celsius
217 2026-09-14 19:06 38 *******************
... ..( 7 skipped). .. *******************
225 2026-09-14 19:14 38 *******************
226 2026-09-14 19:15 39 ********************
... ..( 3 skipped). .. ********************
230 2026-09-14 19:19 39 ********************
231 2026-09-14 19:20 40 *********************
... ..( 68 skipped). .. *********************
300 2026-09-14 20:29 40 *********************
301 2026-09-14 20:30 41 **********************
... ..( 9 skipped). .. **********************
311 2026-09-14 20:40 41 **********************
312 2026-09-14 20:41 40 *********************
... ..( 5 skipped). .. *********************
318 2026-09-14 20:47 40 *********************
319 2026-09-14 20:48 39 ********************
... ..( 13 skipped). .. ********************
333 2026-09-14 21:02 39 ********************
334 2026-09-14 21:03 38 *******************
... ..( 25 skipped). .. *******************
360 2026-09-14 21:29 38 *******************
361 2026-09-14 21:30 37 ******************
... ..( 14 skipped). .. ******************
376 2026-09-14 21:45 37 ******************
377 2026-09-14 21:46 38 *******************
... ..(141 skipped). .. *******************
41 2026-09-15 00:08 38 *******************
42 2026-09-15 00:09 37 ******************
... ..(152 skipped). .. ******************
195 2026-09-15 02:42 37 ******************
196 2026-09-15 02:43 38 *******************
... ..( 2 skipped). .. *******************
199 2026-09-15 02:46 38 *******************
200 2026-09-15 02:47 39 ********************
... ..( 4 skipped). .. ********************
205 2026-09-15 02:52 39 ********************
206 2026-09-15 02:53 38 *******************
... ..( 9 skipped). .. *******************
216 2026-09-15 03:03 38 *******************
SMART WRITE LOG does not return COUNT and LBA_LOW register
SCT (Get) Error Recovery Control command failed
Device Statistics (GP/SMART Log 0x04) not supported
Pending Defects log (GP Log 0x0c) not supported
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x0001 2 0 Command failed due to ICRC error
0x0002 2 0 R_ERR response for data FIS
0x0003 2 0 R_ERR response for device-to-host data FIS
0x0004 2 0 R_ERR response for host-to-device data FIS
0x0005 2 0 R_ERR response for non-data FIS
0x0006 2 0 R_ERR response for device-to-host non-data FIS
0x0007 2 0 R_ERR response for host-to-device non-data FIS
0x000a 2 13 Device-to-host register FISes sent due to a COMRESET
0x000b 2 0 CRC errors within host-to-device FIS
0x8000 4 282290 Vendor specific
Share
