Robert Elder Software Inc's Store

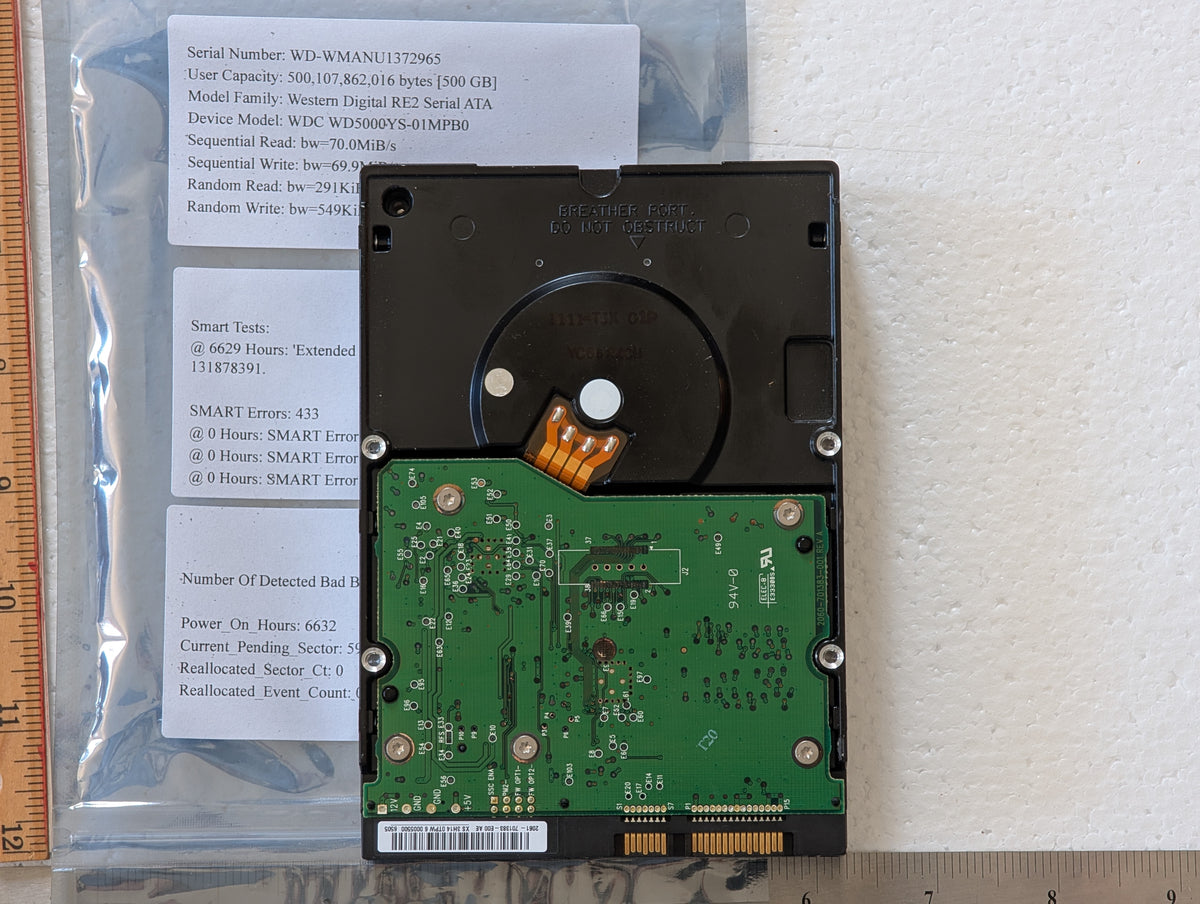

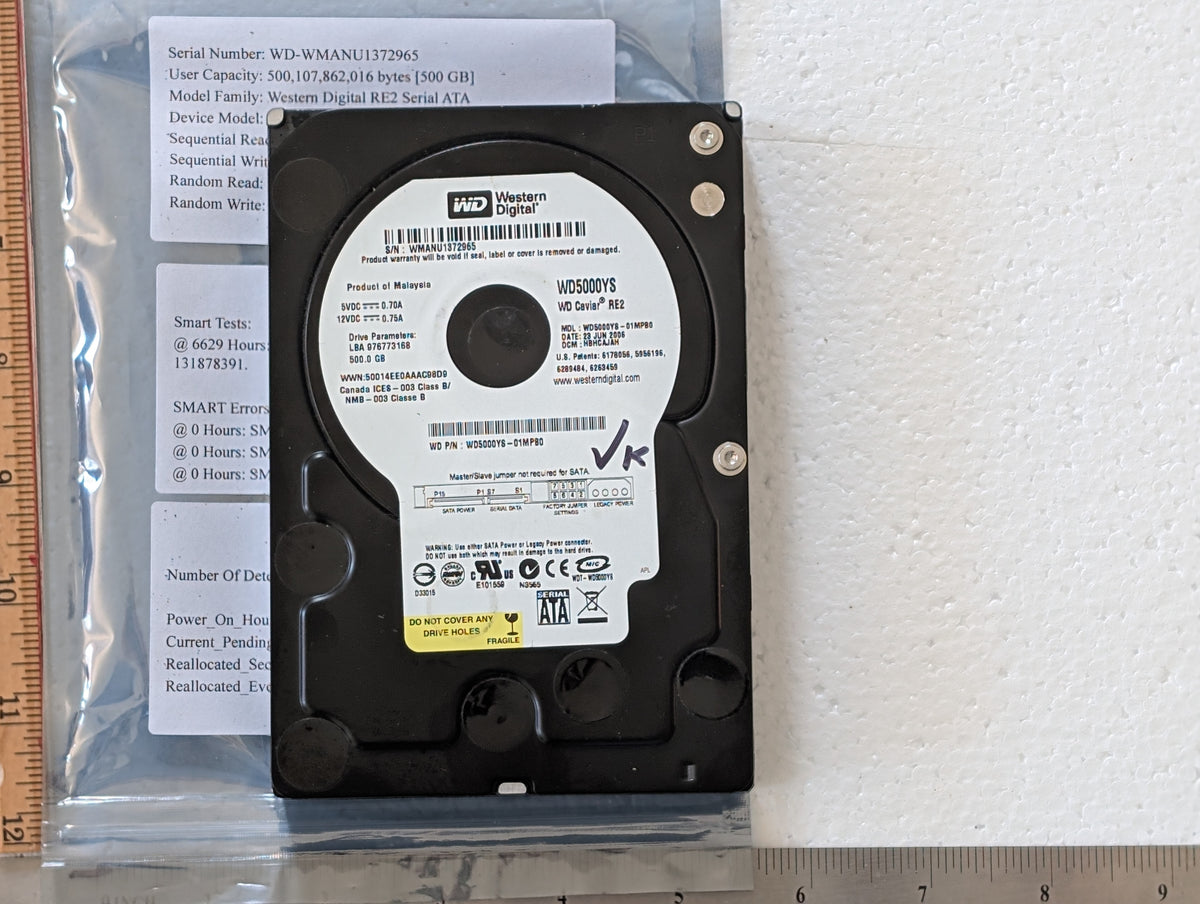

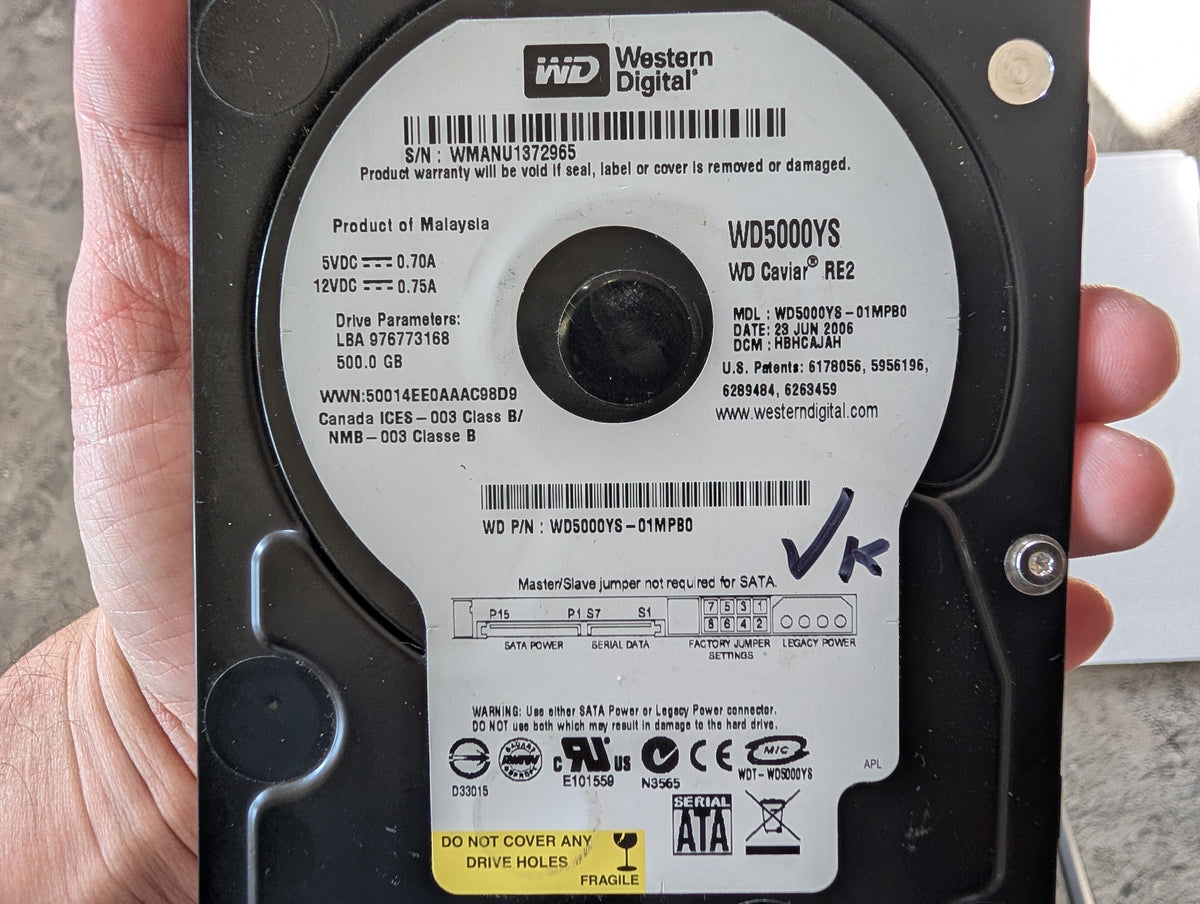

500GB Western Digital, WDC WD5000YS-01MPB0, (SMART FAIL)
500GB Western Digital, WDC WD5000YS-01MPB0, (SMART FAIL)
Regular price
$3.00 CAD
Regular price
Sale price
$3.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
500GB, Western Digital WDC WD5000YS-01MPB0, used hard drive, with 6632 powered-on hours.
This drive has a failed SMART health assessment or self-test. It is offered for parts or repair, not as reliable storage.
Important notes
- This drive weighs 701 grams.
- Pending sectors: 59
- Reallocated sectors: 0
- Logged SMART errors: 433
- CRC errors: 0
- spin_retry_count: 0
- Reallocation events: 0
- Offline uncorrectable sectors: 0
- Power cycles: 582
- SMART overall health: PASSED
- Latest Extended offline self-test: Completed: read failure
- Badblocks log: 307 bad-block entries.
You will receive this specific drive, identified in this listing as serial WD-WMANU1372965.
This used drive is sold 'as is', with no warranty on its functionality. I do warrant that the testing described in this listing was actually performed on this specific drive and that the SMART output reproduced below is the output obtained from this drive. In general, SMART data can be erased or tampered with, for example to reset the reported powered-on hours to zero. I certify that I have not erased, reset, or otherwise tampered with this drive's SMART data, but I cannot certify that a previous owner has not done so.
Counters such as powered-on hours and power-cycle counts may differ slightly from the recorded output because the drive may have been powered on again between the time the SMART output was captured and packaging for shipment.
Recorded fio performance tests
These tests were performed over a USB interface. The demonstrated transfer speeds may be artificially limited by the USB 3 interface.
SEQUENTIAL READ: bw=70.0MiB/s (73.4MB/s) SEQUENTIAL WRITE: bw=69.9MiB/s (73.3MB/s) RANDOM READ: bw=291KiB/s (298kB/s) RANDOM WRITE: bw=549KiB/s (563kB/s) RANDOM READ (Queue Depth=1): bw=286KiB/s (293kB/s)
Output from fdisk -l /dev/sdf
Disk /dev/sdf: 465.76 GiB, 500107862016 bytes, 976773168 sectors Disk model: USB3.0 DISK04 Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes
Output from hdparm -I /dev/sdf
/dev/sdf:
ATA device, with non-removable media
Model Number: WDC WD5000YS-01MPB0
Serial Number: WD-WMANU1372965
Firmware Revision: 09.02E09
Standards:
Supported: 7 6 5 4
Likely used: 8
Configuration:
Logical max current
cylinders 16383 16383
heads 16 16
sectors/track 63 63
--
CHS current addressable sectors: 16514064
LBA user addressable sectors: 268435455
LBA48 user addressable sectors: 976773168
Logical/Physical Sector size: 512 bytes
device size with M = 1024*1024: 476940 MBytes
device size with M = 1000*1000: 500107 MBytes (500 GB)
cache/buffer size = 16384 KBytes
Capabilities:
LBA, IORDY(can be disabled)
Queue depth: 32
Standby timer values: spec'd by Standard, with device specific minimum
R/W multiple sector transfer: Max = 16 Current = 0
Recommended acoustic management value: 128, current value: 254
DMA: mdma0 mdma1 mdma2 udma0 udma1 udma2 udma3 udma4 udma5 *udma6
Cycle time: min=120ns recommended=120ns
PIO: pio0 pio1 pio2 pio3 pio4
Cycle time: no flow control=120ns IORDY flow control=120ns
Commands/features:
Enabled Supported:
* SMART feature set
Security Mode feature set
* Power Management feature set
* Write cache
* Look-ahead
* Host Protected Area feature set
* WRITE_BUFFER command
* READ_BUFFER command
* NOP cmd
* DOWNLOAD_MICROCODE
Power-Up In Standby feature set
* SET_FEATURES required to spinup after power up
SET_MAX security extension
Automatic Acoustic Management feature set
* 48-bit Address feature set
* Device Configuration Overlay feature set
* Mandatory FLUSH_CACHE
* FLUSH_CACHE_EXT
* SMART error logging
* SMART self-test
* General Purpose Logging feature set
* WRITE_{DMA|MULTIPLE}_FUA_EXT
* 64-bit World wide name
* Gen1 signaling speed (1.5Gb/s)
* Gen2 signaling speed (3.0Gb/s)
* Native Command Queueing (NCQ)
* Host-initiated interface power management
* Phy event counters
DMA Setup Auto-Activate optimization
* Software settings preservation
* SMART Command Transport (SCT) feature set
* SCT Read/Write Long (AC1), obsolete
* SCT Write Same (AC2)
* SCT Error Recovery Control (AC3)
* SCT Features Control (AC4)
* SCT Data Tables (AC5)
unknown 206[12] (vendor specific)
Security:
Master password revision code = 65534
supported
not enabled
not locked
not frozen
not expired: security count
not supported: enhanced erase
138min for SECURITY ERASE UNIT.
Logical Unit WWN Device Identifier: 50014ee0aaac98d9
NAA : 5
IEEE OUI : 0014ee
Unique ID : 0aaac98d9
Checksum: correct
Output from smartctl -x /dev/sdf
smartctl 7.5 2025-04-30 r5714 [x86_64-linux-7.0.0-31-generic] (local build)
Copyright (C) 2002-25, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Western Digital RE2 Serial ATA
Device Model: WDC WD5000YS-01MPB0
Serial Number: WD-WMANU1372965
LU WWN Device Id: 5 0014ee 0aaac98d9
Firmware Version: 09.02E09
User Capacity: 500,107,862,016 bytes [500 GB]
Sector Size: 512 bytes logical/physical
Device is: In smartctl database 7.5/5706
ATA Version is: ATA/ATAPI-7 (minor revision not indicated)
Local Time is: Sat Sep 19 22:28:29 2026 UTC
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Disabled
APM feature is: Unavailable
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, NOT FROZEN [SEC1]
=== START OF READ SMART DATA SECTION ===
SMART Status not supported: Incomplete response, ATA output registers missing
SMART overall-health self-assessment test result: PASSED
Warning: This result is based on an Attribute check.
General SMART Values:
Offline data collection status: (0x00) Offline data collection activity
was never started.
Auto Offline Data Collection: Disabled.
Self-test execution status: ( 121) The previous self-test completed having
the read element of the test failed.
Total time to complete Offline
data collection: (13560) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 170) minutes.
Conveyance self-test routine
recommended polling time: ( 6) minutes.
SCT capabilities: (0x103f) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate POSR-- 195 194 051 - 1087
3 Spin_Up_Time PO---- 217 214 021 - 6141
4 Start_Stop_Count -O--CK 100 100 000 - 588
5 Reallocated_Sector_Ct PO--CK 200 200 140 - 0
7 Seek_Error_Rate POSR-- 200 200 051 - 0
9 Power_On_Hours -O--CK 091 091 000 - 6632
10 Spin_Retry_Count PO--C- 100 100 051 - 0
11 Calibration_Retry_Count -O--C- 100 100 051 - 0
12 Power_Cycle_Count -O--CK 100 100 000 - 582
194 Temperature_Celsius -O---K 109 107 000 - 43
196 Reallocated_Event_Count -O--CK 200 200 000 - 0
197 Current_Pending_Sector -O--C- 200 200 000 - 59
198 Offline_Uncorrectable ----C- 100 253 000 - 0
199 UDMA_CRC_Error_Count -OSRCK 200 200 000 - 0
200 Multi_Zone_Error_Rate P--R-- 100 253 051 - 0
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x02 SL R/O 5 Comprehensive SMART error log
0x03 GPL R/O 6 Ext. Comprehensive SMART error log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x09 SL R/W 1 Selective self-test log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xa0-0xa7 GPL,SL VS 16 Device vendor specific log
0xa8-0xb7 GPL,SL VS 1 Device vendor specific log
0xc0 GPL,SL VS 1 Device vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (6 sectors)
Device Error Count: 433 (device log contains only the most recent 24 errors)
CR = Command Register
FEATR = Features Register
COUNT = Count (was: Sector Count) Register
LBA_48 = Upper bytes of LBA High/Mid/Low Registers ] ATA-8
LH = LBA High (was: Cylinder High) Register ] LBA
LM = LBA Mid (was: Cylinder Low) Register ] Register
LL = LBA Low (was: Sector Number) Register ]
DV = Device (was: Device/Head) Register
DC = Device Control Register
ER = Error register
ST = Status register
Powered_Up_Time is measured from power on, and printed as
DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,
SS=sec, and sss=millisec. It "wraps" after 49.710 days.
Error 433 [0] occurred at disk power-on lifetime: 0 hours (0 days + 0 hours)
When the command that caused the error occurred, the device was in an unknown state.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 00 01 08 00 51 00 00 40 01 00 00
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
00 91 25 43 e0 00 00 00 00 00 11 00 08 00:00:00.000 NOP [Reserved subcommand] [OBS-ACS-2]
00 08 00 00 30 43 96 08 d8 25 00 11 00 00:00:12.296 NOP [Abort queued commands]
08 b0 25 43 c5 00 08 00 30 00 11 00 08 3d+08:27:36.370 DEVICE RESET
00 08 00 00 30 43 9a 08 bd 25 00 11 00 00:00:12.296 NOP [Abort queued commands]
Error 432 [23] occurred at disk power-on lifetime: 0 hours (0 days + 0 hours)
When the command that caused the error occurred, the device was in an unknown state.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 00 01 08 00 51 00 00 40 01 00 00
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
00 96 25 43 d8 00 00 00 00 00 11 00 08 00:00:00.000 NOP [Reserved subcommand] [OBS-ACS-2]
00 08 00 00 30 43 32 08 ce 25 00 11 00 00:00:12.296 NOP [Abort queued commands]
08 9a 25 43 bd 00 08 00 30 00 11 00 08 3d+08:27:34.192 DEVICE RESET
00 08 00 00 28 43 99 08 bd 25 00 11 00 00:00:12.296 NOP [Abort queued commands]
Error 431 [22] occurred at disk power-on lifetime: 0 hours (0 days + 0 hours)
When the command that caused the error occurred, the device was in an unknown state.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 00 01 08 00 51 00 00 40 01 00 00
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
00 32 25 43 ce 00 00 00 00 00 11 00 08 00:00:00.000 NOP [Reserved subcommand] [OBS-ACS-2]
00 08 00 00 30 43 b0 08 c5 25 00 11 00 00:00:12.296 NOP [Abort queued commands]
08 99 25 43 bd 00 08 00 30 00 11 00 08 3d+08:27:32.122 DEVICE RESET
00 08 00 00 20 43 99 08 bd 25 00 11 00 00:00:10.248 NOP [Abort queued commands]
Error 430 [21] occurred at disk power-on lifetime: 0 hours (0 days + 0 hours)
When the command that caused the error occurred, the device was in an unknown state.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 00 01 08 00 51 00 00 40 01 00 00
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
00 b0 25 43 c5 00 00 00 00 00 11 00 08 00:00:00.000 NOP [Reserved subcommand] [OBS-ACS-2]
00 08 00 00 30 43 9a 08 bd 25 00 11 00 00:00:12.296 NOP [Abort queued commands]
08 99 25 43 bd 00 08 00 28 00 11 00 08 3d+08:27:32.121 DEVICE RESET
00 08 00 00 18 43 99 08 bd 25 00 11 00 00:00:08.200 NOP [Abort queued commands]
Error 429 [20] occurred at disk power-on lifetime: 0 hours (0 days + 0 hours)
When the command that caused the error occurred, the device was in an unknown state.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 00 01 08 00 51 00 00 40 01 00 00
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
00 9a 25 43 bd 00 00 00 00 00 11 00 08 00:00:00.000 NOP [Reserved subcommand] [OBS-ACS-2]
00 08 00 00 28 43 99 08 bd 25 00 11 00 00:00:12.296 NOP [Abort queued commands]
08 99 25 43 bd 00 08 00 20 00 11 00 08 3d+08:27:32.121 DEVICE RESET
00 08 00 00 10 43 98 08 bd 25 00 11 00 00:00:06.152 NOP [Abort queued commands]
Error 428 [19] occurred at disk power-on lifetime: 0 hours (0 days + 0 hours)
When the command that caused the error occurred, the device was in an unknown state.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 00 01 08 00 51 00 00 40 01 00 00
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
00 89 25 42 6a 00 00 00 00 00 11 00 08 00:00:00.000 NOP [Reserved subcommand] [OBS-ACS-2]
00 08 00 00 30 42 d1 08 60 25 00 11 00 00:00:12.296 NOP [Abort queued commands]
08 a9 25 42 4d 00 08 00 30 00 11 00 08 3d+08:26:00.631 DEVICE RESET
00 08 00 00 30 42 22 08 45 25 00 11 00 00:00:12.296 NOP [Abort queued commands]
Error 427 [18] occurred at disk power-on lifetime: 0 hours (0 days + 0 hours)
When the command that caused the error occurred, the device was in an unknown state.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 00 01 08 00 51 00 00 40 01 00 00
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
00 d1 25 42 60 00 00 00 00 00 11 00 08 00:00:00.000 NOP [Reserved subcommand] [OBS-ACS-2]
00 08 00 00 30 42 37 08 58 25 00 11 00 00:00:12.296 NOP [Abort queued commands]
08 22 25 42 45 00 08 00 30 00 11 00 08 3d+08:25:57.929 DEVICE RESET
00 08 00 00 28 42 18 08 40 25 00 11 00 00:00:12.296 NOP [Abort queued commands]
Error 426 [17] occurred at disk power-on lifetime: 0 hours (0 days + 0 hours)
When the command that caused the error occurred, the device was in an unknown state.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 00 01 08 00 51 00 00 40 01 00 00
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
00 37 25 42 58 00 00 00 00 00 11 00 08 00:00:00.000 NOP [Reserved subcommand] [OBS-ACS-2]
00 08 00 00 30 42 a9 08 4d 25 00 11 00 00:00:12.296 NOP [Abort queued commands]
08 18 25 42 40 00 08 00 30 00 11 00 08 3d+08:25:55.746 DEVICE RESET
00 08 00 00 28 42 71 08 38 25 00 11 00 00:00:10.248 NOP [Abort queued commands]
SMART Extended Self-test Log Version: 1 (1 sectors)
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Extended offline Completed: read failure 90% 6629 131878391
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
SCT Status Version: 2
SCT Version (vendor specific): 258 (0x0102)
Device State: Active (0)
Current Temperature: 43 Celsius
Power Cycle Min/Max Temperature: --/46 Celsius
Lifetime Min/Max Temperature: --/46 Celsius
SCT Temperature History Version: 2
Temperature Sampling Period: 1 minute
Temperature Logging Interval: 1 minute
Min/Max recommended Temperature: 5/65 Celsius
Min/Max Temperature Limit: 1/70 Celsius
Temperature History Size (Index): 128 (32)
Index Estimated Time Temperature Celsius
33 2026-09-19 20:21 43 ************************
... ..( 22 skipped). .. ************************
56 2026-09-19 20:44 43 ************************
57 2026-09-19 20:45 44 *************************
58 2026-09-19 20:46 44 *************************
59 2026-09-19 20:47 43 ************************
60 2026-09-19 20:48 44 *************************
61 2026-09-19 20:49 44 *************************
62 2026-09-19 20:50 43 ************************
63 2026-09-19 20:51 44 *************************
64 2026-09-19 20:52 44 *************************
65 2026-09-19 20:53 43 ************************
66 2026-09-19 20:54 44 *************************
67 2026-09-19 20:55 44 *************************
68 2026-09-19 20:56 44 *************************
69 2026-09-19 20:57 43 ************************
70 2026-09-19 20:58 44 *************************
... ..( 2 skipped). .. *************************
73 2026-09-19 21:01 44 *************************
74 2026-09-19 21:02 43 ************************
75 2026-09-19 21:03 44 *************************
... ..( 7 skipped). .. *************************
83 2026-09-19 21:11 44 *************************
84 2026-09-19 21:12 43 ************************
85 2026-09-19 21:13 44 *************************
86 2026-09-19 21:14 44 *************************
87 2026-09-19 21:15 44 *************************
88 2026-09-19 21:16 43 ************************
89 2026-09-19 21:17 44 *************************
90 2026-09-19 21:18 44 *************************
91 2026-09-19 21:19 43 ************************
92 2026-09-19 21:20 43 ************************
93 2026-09-19 21:21 44 *************************
94 2026-09-19 21:22 43 ************************
... ..( 27 skipped). .. ************************
122 2026-09-19 21:50 43 ************************
123 2026-09-19 21:51 42 ***********************
124 2026-09-19 21:52 43 ************************
125 2026-09-19 21:53 43 ************************
126 2026-09-19 21:54 43 ************************
127 2026-09-19 21:55 42 ***********************
0 2026-09-19 21:56 43 ************************
1 2026-09-19 21:57 42 ***********************
2 2026-09-19 21:58 43 ************************
... ..( 29 skipped). .. ************************
32 2026-09-19 22:28 43 ************************
SMART WRITE LOG does not return COUNT and LBA_LOW register
SCT (Get) Error Recovery Control command failed
Device Statistics (GP/SMART Log 0x04) not supported
Pending Defects log (GP Log 0x0c) not supported
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x0001 2 0 Command failed due to ICRC error
0x000a 2 13 Device-to-host register FISes sent due to a COMRESET
0x8000 4 326279 Vendor specific
Share
