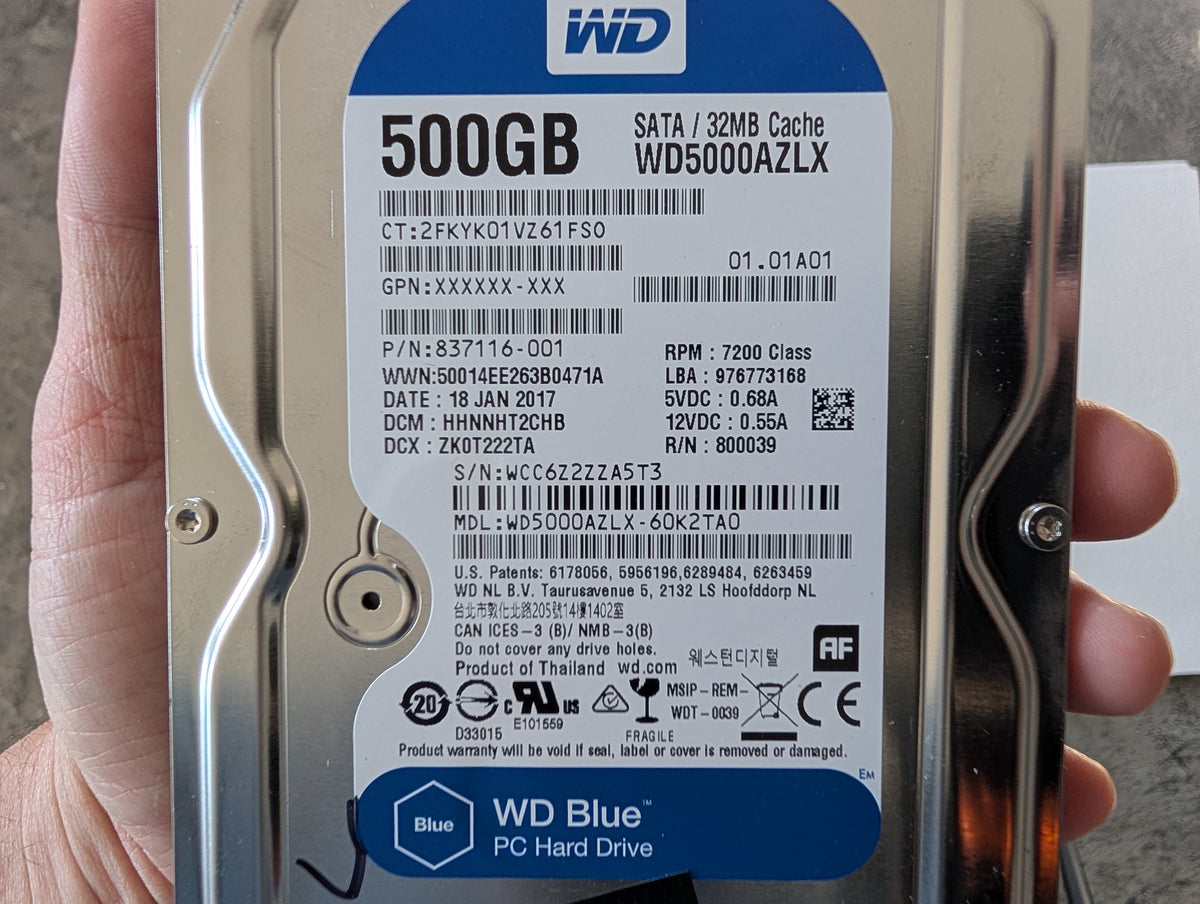

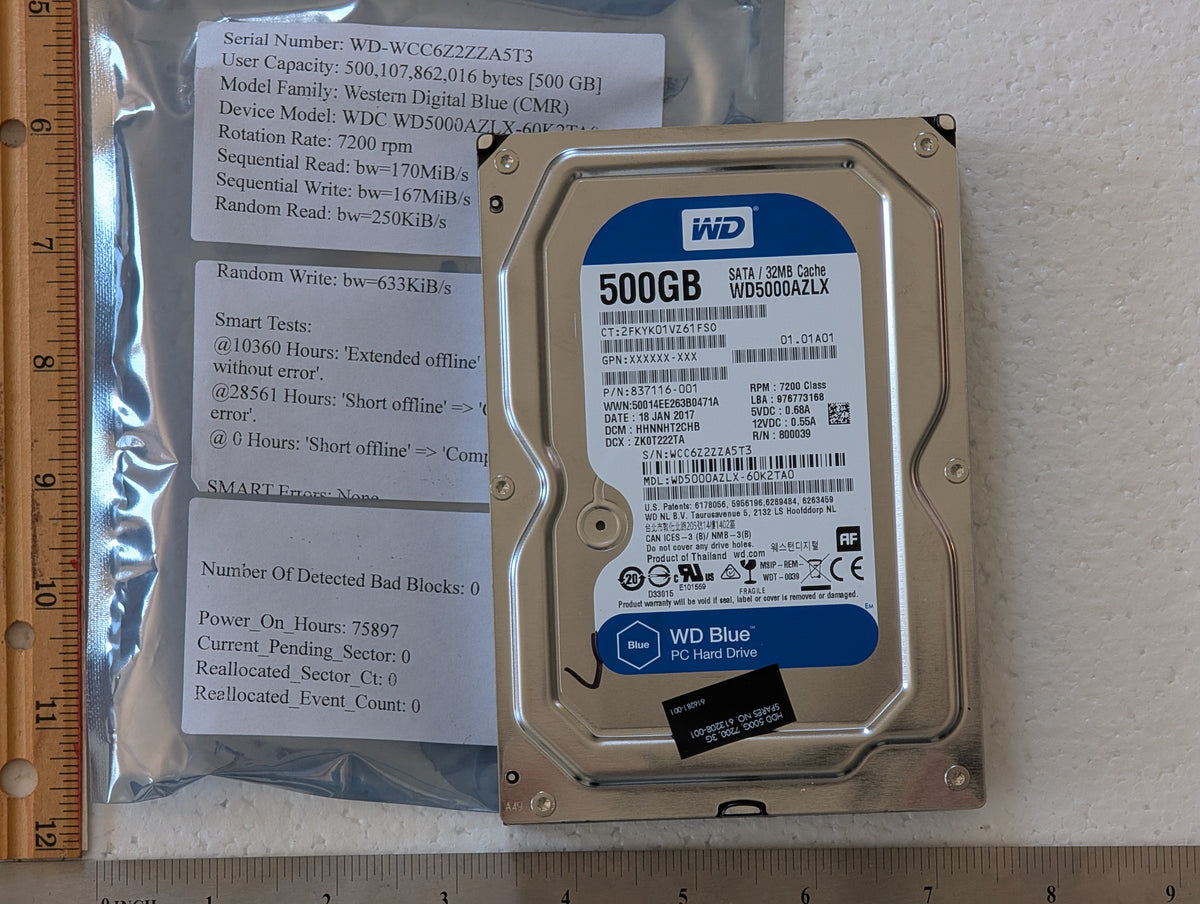

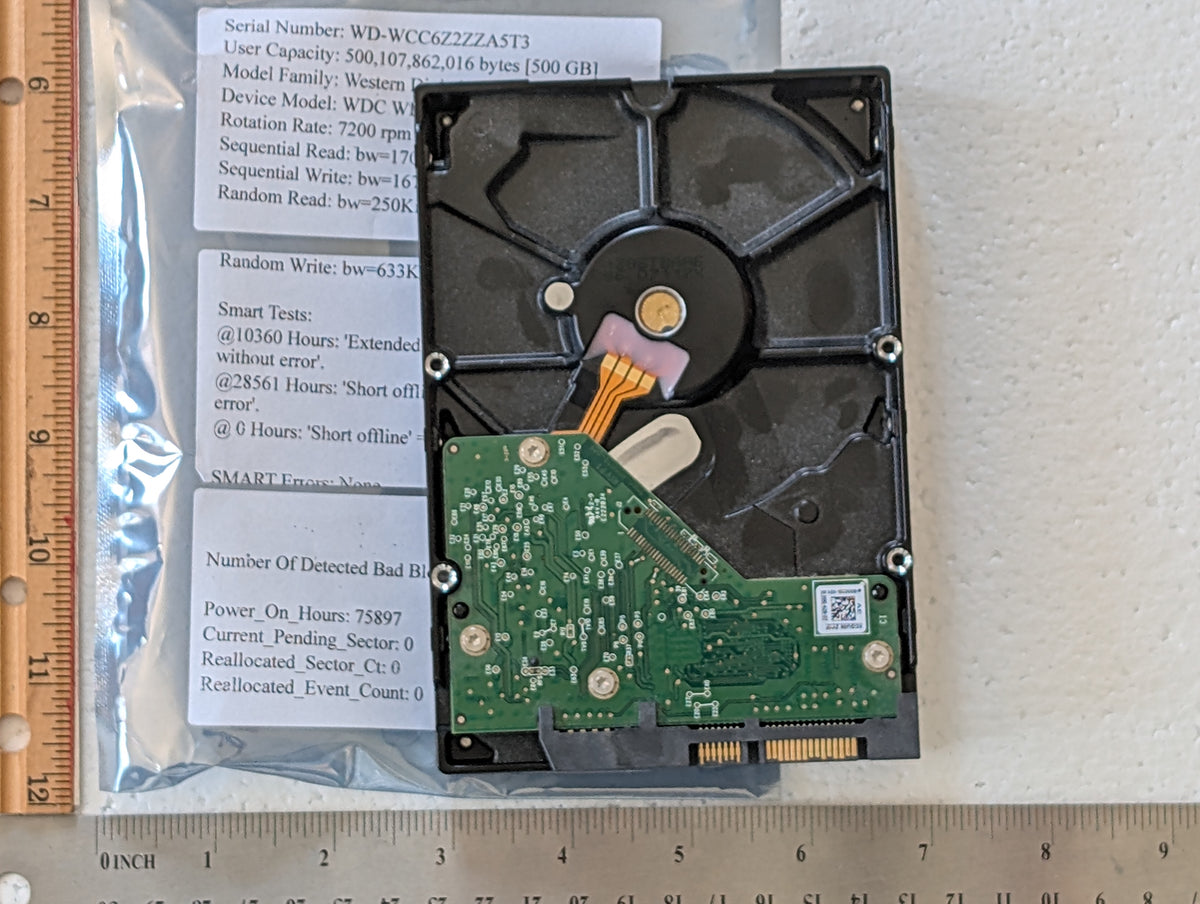

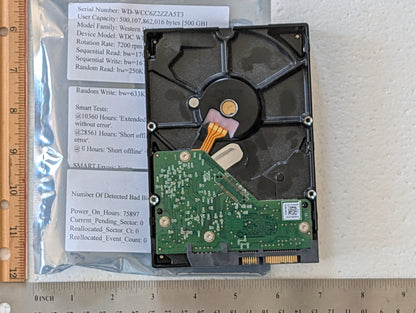

500GB Western Digital, WDC WD5000AZLX-60K2TA0, (75897 Powered On Hours)
500GB Western Digital, WDC WD5000AZLX-60K2TA0, (75897 Powered On Hours)
Regular price
$7.35 CAD
Regular price
Sale price
$7.35 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
500GB, Western Digital WDC WD5000AZLX-60K2TA0, used hard drive, 7200 RPM, SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s), with 75897 powered-on hours.
The recorded SMART overall-health assessment and latest logged self-test passed. This describes the saved test results, not a guarantee of future reliability.
Important notes
- This drive weighs 450 grams.
- Pending sectors: 0
- Reallocated sectors: 0
- Logged SMART errors: 0
- CRC errors: 0
- spin_retry_count: 0
- Reallocation events: 0
- Offline uncorrectable sectors: 0
- Reported uncorrectable errors: 0
- Device Statistics reported uncorrectable errors: 0
- Power cycles: 55
- Load cycles: 92
- SMART overall health: PASSED
- Latest Extended offline self-test: Completed without error
- Badblocks was run using the standard four-pass pattern test, and 0 bad blocks were found.
You will receive this specific drive, identified in this listing as serial WD-WCC6Z2ZZA5T3.
This used drive is sold 'as is', with no warranty on its functionality. I do warrant that the testing described in this listing was actually performed on this specific drive and that the SMART output reproduced below is the output obtained from this drive. In general, SMART data can be erased or tampered with, for example to reset the reported powered-on hours to zero. I certify that I have not erased, reset, or otherwise tampered with this drive's SMART data, but I cannot certify that a previous owner has not done so.
Counters such as powered-on hours and power-cycle counts may differ slightly from the recorded output because the drive may have been powered on again between the time the SMART output was captured and packaging for shipment.
Recorded fio performance tests
These tests were performed over a USB interface. The demonstrated transfer speeds may be artificially limited by the USB 3 interface.
SEQUENTIAL READ: bw=170MiB/s (179MB/s) SEQUENTIAL WRITE: bw=167MiB/s (175MB/s) RANDOM READ: bw=250KiB/s (256kB/s) RANDOM WRITE: bw=633KiB/s (648kB/s) RANDOM READ (Queue Depth=1): bw=244KiB/s (250kB/s)
Output from fdisk -l /dev/sdb
Disk /dev/sdb: 465.76 GiB, 500107862016 bytes, 976773168 sectors Disk model: USB3.0 DISK00 Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes
Output from hdparm -I /dev/sdb
/dev/sdb:
ATA device, with non-removable media
Model Number: WDC WD5000AZLX-60K2TA0
Serial Number: WD-WCC6Z2ZZA5T3
Firmware Revision: 01.01A01
Transport: Serial, SATA 1.0a, SATA II Extensions, SATA Rev 2.5, SATA Rev 2.6, SATA Rev 3.0
Standards:
Used: unknown (minor revision code 0x006d)
Supported: 10 9 8 7 6 5
Likely used: 10
Configuration:
Logical max current
cylinders 16383 0
heads 16 0
sectors/track 63 0
--
LBA user addressable sectors: 268435455
LBA48 user addressable sectors: 976773168
Logical Sector size: 512 bytes
Physical Sector size: 4096 bytes
device size with M = 1024*1024: 476940 MBytes
device size with M = 1000*1000: 500107 MBytes (500 GB)
cache/buffer size = unknown
Form Factor: 3.5 inch
Nominal Media Rotation Rate: 7200
Capabilities:
LBA, IORDY(can be disabled)
Queue depth: 32
Standby timer values: spec'd by Standard, with device specific minimum
R/W multiple sector transfer: Max = 16 Current = 16
Advanced power management level: 128
DMA: *mdma0 mdma1 mdma2 udma0 udma1 udma2 udma3 udma4 udma5
Cycle time: min=120ns recommended=120ns
PIO: pio0 pio1 pio2 pio3 pio4
Cycle time: no flow control=120ns IORDY flow control=120ns
Commands/features:
Enabled Supported:
* SMART feature set
Security Mode feature set
* Power Management feature set
* Write cache
* Look-ahead
* WRITE_BUFFER command
* READ_BUFFER command
* NOP cmd
* DOWNLOAD_MICROCODE
* Advanced Power Management feature set
Power-Up In Standby feature set
* 48-bit Address feature set
* Device Configuration Overlay feature set
* Mandatory FLUSH_CACHE
* FLUSH_CACHE_EXT
* SMART error logging
* SMART self-test
* General Purpose Logging feature set
* 64-bit World wide name
* IDLE_IMMEDIATE with UNLOAD
* WRITE_UNCORRECTABLE_EXT command
* {READ,WRITE}_DMA_EXT_GPL commands
* Segmented DOWNLOAD_MICROCODE
unknown 119[6]
unknown 119[7]
* Gen1 signaling speed (1.5Gb/s)
* Gen2 signaling speed (3.0Gb/s)
* Gen3 signaling speed (6.0Gb/s)
* Native Command Queueing (NCQ)
* Phy event counters
* READ_LOG_DMA_EXT equivalent to READ_LOG_EXT
DMA Setup Auto-Activate optimization
Device-initiated interface power management
* Software settings preservation
unknown 78[7]
* SMART Command Transport (SCT) feature set
* SCT Write Same (AC2)
* SCT Error Recovery Control (AC3)
* SCT Features Control (AC4)
* SCT Data Tables (AC5)
unknown 206[12] (vendor specific)
unknown 206[13] (vendor specific)
* SANITIZE feature set
* OVERWRITE_EXT command
* Extended number of user addressable sectors
* DOWNLOAD MICROCODE DMA command
* WRITE BUFFER DMA command
* READ BUFFER DMA command
* Long physical sector diagnostics
Security:
Master password revision code = 65534
supported
not enabled
not locked
not frozen
not expired: security count
supported: enhanced erase
66min for SECURITY ERASE UNIT. 66min for ENHANCED SECURITY ERASE UNIT.
Logical Unit WWN Device Identifier: 50014ee263b0471a
NAA : 5
IEEE OUI : 0014ee
Unique ID : 263b0471a
Checksum: correct
Output from smartctl -x /dev/sdb
smartctl 7.5 2025-04-30 r5714 [x86_64-linux-7.0.0-31-generic] (local build)
Copyright (C) 2002-25, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Western Digital Blue (CMR)
Device Model: WDC WD5000AZLX-60K2TA0
Serial Number: WD-WCC6Z2ZZA5T3
LU WWN Device Id: 5 0014ee 263b0471a
Firmware Version: 01.01A01
User Capacity: 500,107,862,016 bytes [500 GB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Device is: In smartctl database 7.5/5706
ATA Version is: ACS-3 T13/2161-D revision 5
SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Tue Sep 15 03:03:26 2026 UTC
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Unavailable
APM level is: 128 (minimum power consumption without standby)
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, NOT FROZEN [SEC1]
=== START OF READ SMART DATA SECTION ===
SMART Status not supported: Incomplete response, ATA output registers missing
SMART overall-health self-assessment test result: PASSED
Warning: This result is based on an Attribute check.
General SMART Values:
Offline data collection status: (0x82) Offline data collection activity
was completed without error.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 6000) seconds.
Offline data collection
capabilities: (0x5b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
No Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 65) minutes.
SCT capabilities: (0x303d) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate POSR-K 200 200 051 - 0
3 Spin_Up_Time POS--K 191 170 021 - 1416
4 Start_Stop_Count -O--CK 100 100 000 - 61
5 Reallocated_Sector_Ct PO--CK 200 200 140 - 0
7 Seek_Error_Rate POSR-K 200 200 051 - 0
9 Power_On_Hours -O--CK 001 001 000 - 75897
10 Spin_Retry_Count PO--CK 100 253 051 - 0
11 Calibration_Retry_Count -O--CK 100 253 000 - 0
12 Power_Cycle_Count -O--CK 100 100 000 - 55
183 Runtime_Bad_Block -O--CK 100 100 000 - 0
184 End-to-End_Error PO--CK 100 100 097 - 0
187 Reported_Uncorrect -O--CK 100 100 000 - 0
188 Command_Timeout -O--CK 100 100 000 - 0
190 Airflow_Temperature_Cel -O---K 065 058 040 - 35 (Min/Max 23/40)
192 Power-Off_Retract_Count -O--CK 200 200 000 - 29
193 Load_Cycle_Count -O--CK 200 200 000 - 92
194 Temperature_Celsius -O---K 108 101 000 - 35
196 Reallocated_Event_Count -O--CK 200 200 000 - 0
197 Current_Pending_Sector -O--CK 200 200 000 - 0
198 Offline_Uncorrectable ----CK 200 200 000 - 0
199 UDMA_CRC_Error_Count -O--CK 200 200 000 - 0
200 Multi_Zone_Error_Rate ---R-- 200 200 000 - 0
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x02 SL R/O 5 Comprehensive SMART error log
0x03 GPL R/O 6 Ext. Comprehensive SMART error log
0x04 GPL,SL R/O 8 Device Statistics log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x08 GPL R/O 2 Power Conditions log
0x09 SL R/W 1 Selective self-test log
0x0d GPL,SL R/O 8 LPS Mis-alignment log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x30 GPL,SL R/O 9 IDENTIFY DEVICE data log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xa0-0xa7 GPL,SL VS 16 Device vendor specific log
0xa8-0xb5 GPL,SL VS 1 Device vendor specific log
0xb6 GPL VS 8192 Device vendor specific log
0xb6 SL VS 1 Device vendor specific log
0xb7 GPL,SL VS 48 Device vendor specific log
0xbd GPL,SL VS 1 Device vendor specific log
0xc0 GPL,SL VS 1 Device vendor specific log
0xc1 GPL VS 93 Device vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (6 sectors)
No Errors Logged
SMART Extended Self-test Log Version: 1 (1 sectors)
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Extended offline Completed without error 00% 10360 -
# 2 Short offline Completed without error 00% 28561 -
# 3 Short offline Completed without error 00% 0 -
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
SCT Status Version: 3
SCT Version (vendor specific): 258 (0x0102)
Device State: Active (0)
Current Temperature: 35 Celsius
Power Cycle Min/Max Temperature: 23/41 Celsius
Lifetime Min/Max Temperature: 23/42 Celsius
Under/Over Temperature Limit Count: 0/0
Vendor specific:
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SCT Temperature History Version: 2
Temperature Sampling Period: 1 minute
Temperature Logging Interval: 1 minute
Min/Max recommended Temperature: 0/60 Celsius
Min/Max Temperature Limit: -41/85 Celsius
Temperature History Size (Index): 128 (7)
Index Estimated Time Temperature Celsius
8 2026-09-15 00:56 38 *******************
... ..( 33 skipped). .. *******************
42 2026-09-15 01:30 38 *******************
43 2026-09-15 01:31 39 ********************
44 2026-09-15 01:32 39 ********************
45 2026-09-15 01:33 40 *********************
46 2026-09-15 01:34 40 *********************
47 2026-09-15 01:35 41 **********************
48 2026-09-15 01:36 40 *********************
49 2026-09-15 01:37 40 *********************
50 2026-09-15 01:38 39 ********************
... ..( 3 skipped). .. ********************
54 2026-09-15 01:42 39 ********************
55 2026-09-15 01:43 38 *******************
... ..( 10 skipped). .. *******************
66 2026-09-15 01:54 38 *******************
67 2026-09-15 01:55 37 ******************
... ..( 30 skipped). .. ******************
98 2026-09-15 02:26 37 ******************
99 2026-09-15 02:27 36 *****************
... ..( 27 skipped). .. *****************
127 2026-09-15 02:55 36 *****************
0 2026-09-15 02:56 35 ****************
... ..( 6 skipped). .. ****************
7 2026-09-15 03:03 35 ****************
SMART WRITE LOG does not return COUNT and LBA_LOW register
SCT (Get) Error Recovery Control command failed
Device Statistics (GP Log 0x04)
Page Offset Size Value Flags Description
0x01 ===== = = === == General Statistics (rev 1) ==
0x01 0x008 4 55 --- Lifetime Power-On Resets
0x01 0x010 4 75897 --- Power-on Hours
0x01 0x018 6 73746493066 --- Logical Sectors Written
0x01 0x020 6 1770617704 --- Number of Write Commands
0x01 0x028 6 120238770494 --- Logical Sectors Read
0x01 0x030 6 1540779853 --- Number of Read Commands
0x01 0x038 6 2646260352 --- Date and Time TimeStamp
0x03 ===== = = === == Rotating Media Statistics (rev 1) ==
0x03 0x008 4 71732 --- Spindle Motor Power-on Hours
0x03 0x010 4 71664 --- Head Flying Hours
0x03 0x018 4 122 --- Head Load Events
0x03 0x020 4 0 --- Number of Reallocated Logical Sectors
0x03 0x028 4 0 --- Read Recovery Attempts
0x03 0x030 4 0 --- Number of Mechanical Start Failures
0x03 0x038 4 0 --- Number of Realloc. Candidate Logical Sectors
0x03 0x040 4 29 --- Number of High Priority Unload Events
0x04 ===== = = === == General Errors Statistics (rev 1) ==
0x04 0x008 4 0 --- Number of Reported Uncorrectable Errors
0x04 0x010 4 0 --- Resets Between Cmd Acceptance and Completion
0x05 ===== = = === == Temperature Statistics (rev 1) ==
0x05 0x008 1 35 --- Current Temperature
0x05 0x010 1 35 --- Average Short Term Temperature
0x05 0x018 1 34 --- Average Long Term Temperature
0x05 0x020 1 42 --- Highest Temperature
0x05 0x028 1 27 --- Lowest Temperature
0x05 0x030 1 38 --- Highest Average Short Term Temperature
0x05 0x038 1 30 --- Lowest Average Short Term Temperature
0x05 0x040 1 35 --- Highest Average Long Term Temperature
0x05 0x048 1 31 --- Lowest Average Long Term Temperature
0x05 0x050 4 0 --- Time in Over-Temperature
0x05 0x058 1 60 --- Specified Maximum Operating Temperature
0x05 0x060 4 0 --- Time in Under-Temperature
0x05 0x068 1 0 --- Specified Minimum Operating Temperature
0x06 ===== = = === == Transport Statistics (rev 1) ==
0x06 0x008 4 695 --- Number of Hardware Resets
0x06 0x010 4 626 --- Number of ASR Events
0x06 0x018 4 0 --- Number of Interface CRC Errors
|||_ C monitored condition met
||__ D supports DSN
|___ N normalized value
Pending Defects log (GP Log 0x0c) not supported
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x0001 2 0 Command failed due to ICRC error
0x0002 2 0 R_ERR response for data FIS
0x0003 2 0 R_ERR response for device-to-host data FIS
0x0004 2 0 R_ERR response for host-to-device data FIS
0x0005 2 0 R_ERR response for non-data FIS
0x0006 2 0 R_ERR response for device-to-host non-data FIS
0x0007 2 0 R_ERR response for host-to-device non-data FIS
0x0008 2 0 Device-to-host non-data FIS retries
0x0009 2 12 Transition from drive PhyRdy to drive PhyNRdy
0x000a 2 14 Device-to-host register FISes sent due to a COMRESET
0x000b 2 0 CRC errors within host-to-device FIS
0x000d 2 0 Non-CRC errors within host-to-device FIS
0x000f 2 0 R_ERR response for host-to-device data FIS, CRC
0x0012 2 0 R_ERR response for host-to-device non-data FIS, CRC
0x8000 4 282207 Vendor specific
Share
