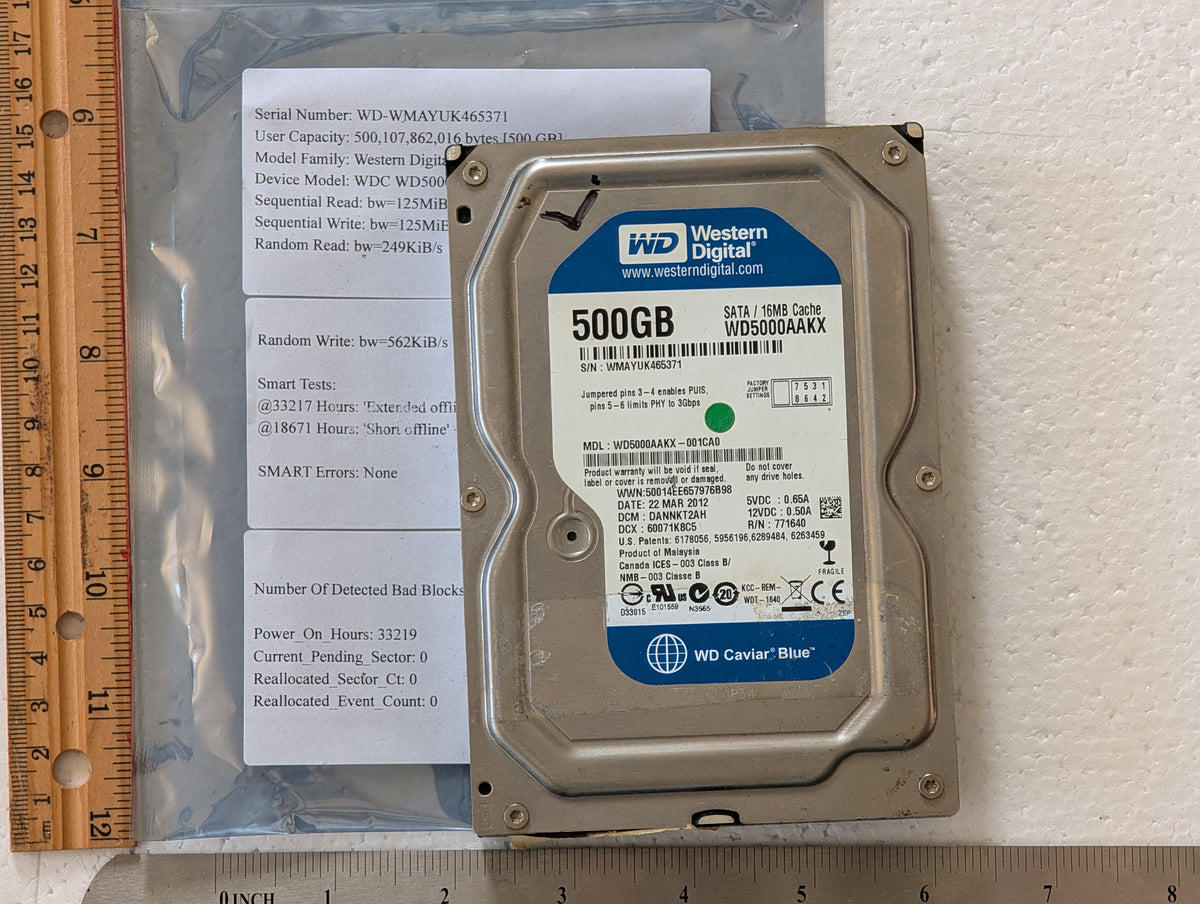

500GB Western Digital, WDC WD5000AAKX-001CA0, (33219 Powered On Hours)
500GB Western Digital, WDC WD5000AAKX-001CA0, (33219 Powered On Hours)
Regular price
$12.20 CAD
Regular price
Sale price
$12.20 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
500GB, Western Digital WDC WD5000AAKX-001CA0, used hard drive, SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s), with 33219 powered-on hours.
The recorded SMART overall-health assessment and latest logged self-test passed. This describes the saved test results, not a guarantee of future reliability.
Important notes
- This drive weighs 457 grams.
- Pending sectors: 0
- Reallocated sectors: 0
- Logged SMART errors: 0
- CRC errors: 0
- spin_retry_count: 0
- Reallocation events: 0
- Offline uncorrectable sectors: 0
- Power cycles: 853
- Load cycles: 593
- SMART overall health: PASSED
- Latest Extended offline self-test: Completed without error
- Badblocks was run using the standard four-pass pattern test, and 0 bad blocks were found.
You will receive this specific drive, identified in this listing as serial WD-WMAYUK465371.
This used drive is sold 'as is', with no warranty on its functionality. I do warrant that the testing described in this listing was actually performed on this specific drive and that the SMART output reproduced below is the output obtained from this drive. In general, SMART data can be erased or tampered with, for example to reset the reported powered-on hours to zero. I certify that I have not erased, reset, or otherwise tampered with this drive's SMART data, but I cannot certify that a previous owner has not done so.
Counters such as powered-on hours and power-cycle counts may differ slightly from the recorded output because the drive may have been powered on again between the time the SMART output was captured and packaging for shipment.
Recorded fio performance tests
These tests were performed over a USB interface. The demonstrated transfer speeds may be artificially limited by the USB 3 interface.
SEQUENTIAL READ: bw=125MiB/s (131MB/s) SEQUENTIAL WRITE: bw=125MiB/s (131MB/s) RANDOM READ: bw=249KiB/s (255kB/s) RANDOM WRITE: bw=562KiB/s (576kB/s) RANDOM READ (Queue Depth=1): bw=245KiB/s (251kB/s)
Output from fdisk -l /dev/sdf
Disk /dev/sdf: 465.76 GiB, 500107862016 bytes, 976773168 sectors Disk model: USB3.0 DISK04 Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes
Output from hdparm -I /dev/sdf
/dev/sdf:
ATA device, with non-removable media
Model Number: WDC WD5000AAKX-001CA0
Serial Number: WD-WMAYUK465371
Firmware Revision: 15.01H15
Transport: Serial, SATA 1.0a, SATA II Extensions, SATA Rev 2.5, SATA Rev 2.6, SATA Rev 3.0
Standards:
Supported: 8 7 6 5
Likely used: 8
Configuration:
Logical max current
cylinders 16383 16383
heads 16 16
sectors/track 63 63
--
CHS current addressable sectors: 16514064
LBA user addressable sectors: 268435455
LBA48 user addressable sectors: 976773168
Logical/Physical Sector size: 512 bytes
device size with M = 1024*1024: 476940 MBytes
device size with M = 1000*1000: 500107 MBytes (500 GB)
cache/buffer size = 16384 KBytes
Capabilities:
LBA, IORDY(can be disabled)
Queue depth: 32
Standby timer values: spec'd by Standard, with device specific minimum
R/W multiple sector transfer: Max = 16 Current = 0
DMA: mdma0 mdma1 mdma2 udma0 udma1 udma2 udma3 udma4 udma5 *udma6
Cycle time: min=120ns recommended=120ns
PIO: pio0 pio1 pio2 pio3 pio4
Cycle time: no flow control=120ns IORDY flow control=120ns
Commands/features:
Enabled Supported:
* SMART feature set
Security Mode feature set
* Power Management feature set
* Write cache
* Look-ahead
* Host Protected Area feature set
* WRITE_BUFFER command
* READ_BUFFER command
* NOP cmd
* DOWNLOAD_MICROCODE
Power-Up In Standby feature set
* SET_FEATURES required to spinup after power up
SET_MAX security extension
* 48-bit Address feature set
* Device Configuration Overlay feature set
* Mandatory FLUSH_CACHE
* FLUSH_CACHE_EXT
* SMART error logging
* SMART self-test
* General Purpose Logging feature set
* 64-bit World wide name
* {READ,WRITE}_DMA_EXT_GPL commands
* Segmented DOWNLOAD_MICROCODE
* Gen1 signaling speed (1.5Gb/s)
* Gen2 signaling speed (3.0Gb/s)
* Gen3 signaling speed (6.0Gb/s)
* Native Command Queueing (NCQ)
* Host-initiated interface power management
* Phy event counters
* NCQ priority information
DMA Setup Auto-Activate optimization
* Software settings preservation
* SMART Command Transport (SCT) feature set
* SCT Read/Write Long (AC1), obsolete
* SCT Write Same (AC2)
* SCT Features Control (AC4)
* SCT Data Tables (AC5)
unknown 206[12] (vendor specific)
unknown 206[13] (vendor specific)
Security:
Master password revision code = 65534
supported
not enabled
not locked
not frozen
not expired: security count
supported: enhanced erase
86min for SECURITY ERASE UNIT. 86min for ENHANCED SECURITY ERASE UNIT.
Logical Unit WWN Device Identifier: 50014ee657976b98
NAA : 5
IEEE OUI : 0014ee
Unique ID : 657976b98
Checksum: correct
Output from smartctl -x /dev/sdf
smartctl 7.5 2025-04-30 r5714 [x86_64-linux-7.0.0-31-generic] (local build)
Copyright (C) 2002-25, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Western Digital Blue (CMR)
Device Model: WDC WD5000AAKX-001CA0
Serial Number: WD-WMAYUK465371
LU WWN Device Id: 5 0014ee 657976b98
Firmware Version: 15.01H15
User Capacity: 500,107,862,016 bytes [500 GB]
Sector Size: 512 bytes logical/physical
Device is: In smartctl database 7.5/5706
ATA Version is: ATA8-ACS (minor revision not indicated)
SATA Version is: SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Wed Sep 23 17:22:37 2026 UTC
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Unavailable
APM feature is: Unavailable
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, NOT FROZEN [SEC1]
=== START OF READ SMART DATA SECTION ===
SMART Status not supported: Incomplete response, ATA output registers missing
SMART overall-health self-assessment test result: PASSED
Warning: This result is based on an Attribute check.
General SMART Values:
Offline data collection status: (0x82) Offline data collection activity
was completed without error.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 8580) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 87) minutes.
Conveyance self-test routine
recommended polling time: ( 5) minutes.
SCT capabilities: (0x3037) SCT Status supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate POSR-K 200 200 051 - 0
3 Spin_Up_Time POS--K 142 138 021 - 3875
4 Start_Stop_Count -O--CK 100 100 000 - 875
5 Reallocated_Sector_Ct PO--CK 200 200 140 - 0
7 Seek_Error_Rate -OSR-K 200 200 000 - 0
9 Power_On_Hours -O--CK 055 055 000 - 33219
10 Spin_Retry_Count -O--CK 100 100 000 - 0
11 Calibration_Retry_Count -O--CK 100 100 000 - 0
12 Power_Cycle_Count -O--CK 100 100 000 - 853
192 Power-Off_Retract_Count -O--CK 200 200 000 - 281
193 Load_Cycle_Count -O--CK 200 200 000 - 593
194 Temperature_Celsius -O---K 109 093 000 - 34
196 Reallocated_Event_Count -O--CK 200 200 000 - 0
197 Current_Pending_Sector -O--CK 200 200 000 - 0
198 Offline_Uncorrectable ----CK 200 200 000 - 0
199 UDMA_CRC_Error_Count -O--CK 200 200 000 - 0
200 Multi_Zone_Error_Rate ---R-- 200 200 000 - 0
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x02 SL R/O 5 Comprehensive SMART error log
0x03 GPL R/O 6 Ext. Comprehensive SMART error log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x09 SL R/W 1 Selective self-test log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xa0-0xa7 GPL,SL VS 16 Device vendor specific log
0xa8-0xb5 GPL,SL VS 1 Device vendor specific log
0xb6 GPL VS 1 Device vendor specific log
0xb7 GPL,SL VS 1 Device vendor specific log
0xbd GPL,SL VS 1 Device vendor specific log
0xc0 GPL,SL VS 1 Device vendor specific log
0xc1 GPL VS 24 Device vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (6 sectors)
No Errors Logged
SMART Extended Self-test Log Version: 1 (1 sectors)
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Extended offline Completed without error 00% 33217 -
# 2 Short offline Completed without error 00% 18671 -
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
SCT Status Version: 3
SCT Version (vendor specific): 258 (0x0102)
Device State: Active (0)
Current Temperature: 34 Celsius
Power Cycle Min/Max Temperature: 22/39 Celsius
Lifetime Min/Max Temperature: 0/50 Celsius
Under/Over Temperature Limit Count: 0/0
SCT Temperature History Version: 2
Temperature Sampling Period: 1 minute
Temperature Logging Interval: 1 minute
Min/Max recommended Temperature: 0/60 Celsius
Min/Max Temperature Limit: -41/85 Celsius
Temperature History Size (Index): 478 (267)
Index Estimated Time Temperature Celsius
268 2026-09-23 09:25 33 **************
... ..( 19 skipped). .. **************
288 2026-09-23 09:45 33 **************
289 2026-09-23 09:46 34 ***************
290 2026-09-23 09:47 33 **************
291 2026-09-23 09:48 33 **************
292 2026-09-23 09:49 33 **************
293 2026-09-23 09:50 34 ***************
294 2026-09-23 09:51 34 ***************
295 2026-09-23 09:52 34 ***************
296 2026-09-23 09:53 33 **************
297 2026-09-23 09:54 33 **************
298 2026-09-23 09:55 34 ***************
299 2026-09-23 09:56 34 ***************
300 2026-09-23 09:57 34 ***************
301 2026-09-23 09:58 33 **************
302 2026-09-23 09:59 34 ***************
... ..( 30 skipped). .. ***************
333 2026-09-23 10:30 34 ***************
334 2026-09-23 10:31 35 ****************
... ..( 27 skipped). .. ****************
362 2026-09-23 10:59 35 ****************
363 2026-09-23 11:00 34 ***************
364 2026-09-23 11:01 35 ****************
... ..( 14 skipped). .. ****************
379 2026-09-23 11:16 35 ****************
380 2026-09-23 11:17 36 *****************
... ..( 66 skipped). .. *****************
447 2026-09-23 12:24 36 *****************
448 2026-09-23 12:25 35 ****************
... ..( 76 skipped). .. ****************
47 2026-09-23 13:42 35 ****************
48 2026-09-23 13:43 34 ***************
49 2026-09-23 13:44 34 ***************
50 2026-09-23 13:45 35 ****************
51 2026-09-23 13:46 35 ****************
52 2026-09-23 13:47 34 ***************
... ..( 3 skipped). .. ***************
56 2026-09-23 13:51 34 ***************
57 2026-09-23 13:52 33 **************
... ..( 64 skipped). .. **************
122 2026-09-23 14:57 33 **************
123 2026-09-23 14:58 34 ***************
... ..( 4 skipped). .. ***************
128 2026-09-23 15:03 34 ***************
129 2026-09-23 15:04 35 ****************
... ..( 72 skipped). .. ****************
202 2026-09-23 16:17 35 ****************
203 2026-09-23 16:18 36 *****************
... ..( 5 skipped). .. *****************
209 2026-09-23 16:24 36 *****************
210 2026-09-23 16:25 35 ****************
... ..( 4 skipped). .. ****************
215 2026-09-23 16:30 35 ****************
216 2026-09-23 16:31 34 ***************
... ..( 17 skipped). .. ***************
234 2026-09-23 16:49 34 ***************
235 2026-09-23 16:50 33 **************
236 2026-09-23 16:51 34 ***************
237 2026-09-23 16:52 34 ***************
238 2026-09-23 16:53 34 ***************
239 2026-09-23 16:54 33 **************
240 2026-09-23 16:55 34 ***************
241 2026-09-23 16:56 33 **************
... ..( 25 skipped). .. **************
267 2026-09-23 17:22 33 **************
SCT Error Recovery Control command not supported
Device Statistics (GP/SMART Log 0x04) not supported
Pending Defects log (GP Log 0x0c) not supported
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x0001 2 0 Command failed due to ICRC error
0x0002 2 0 R_ERR response for data FIS
0x0003 2 0 R_ERR response for device-to-host data FIS
0x0004 2 0 R_ERR response for host-to-device data FIS
0x0005 2 0 R_ERR response for non-data FIS
0x0006 2 0 R_ERR response for device-to-host non-data FIS
0x0007 2 0 R_ERR response for host-to-device non-data FIS
0x000a 2 11 Device-to-host register FISes sent due to a COMRESET
0x000b 2 0 CRC errors within host-to-device FIS
0x8000 4 251761 Vendor specific
Share
