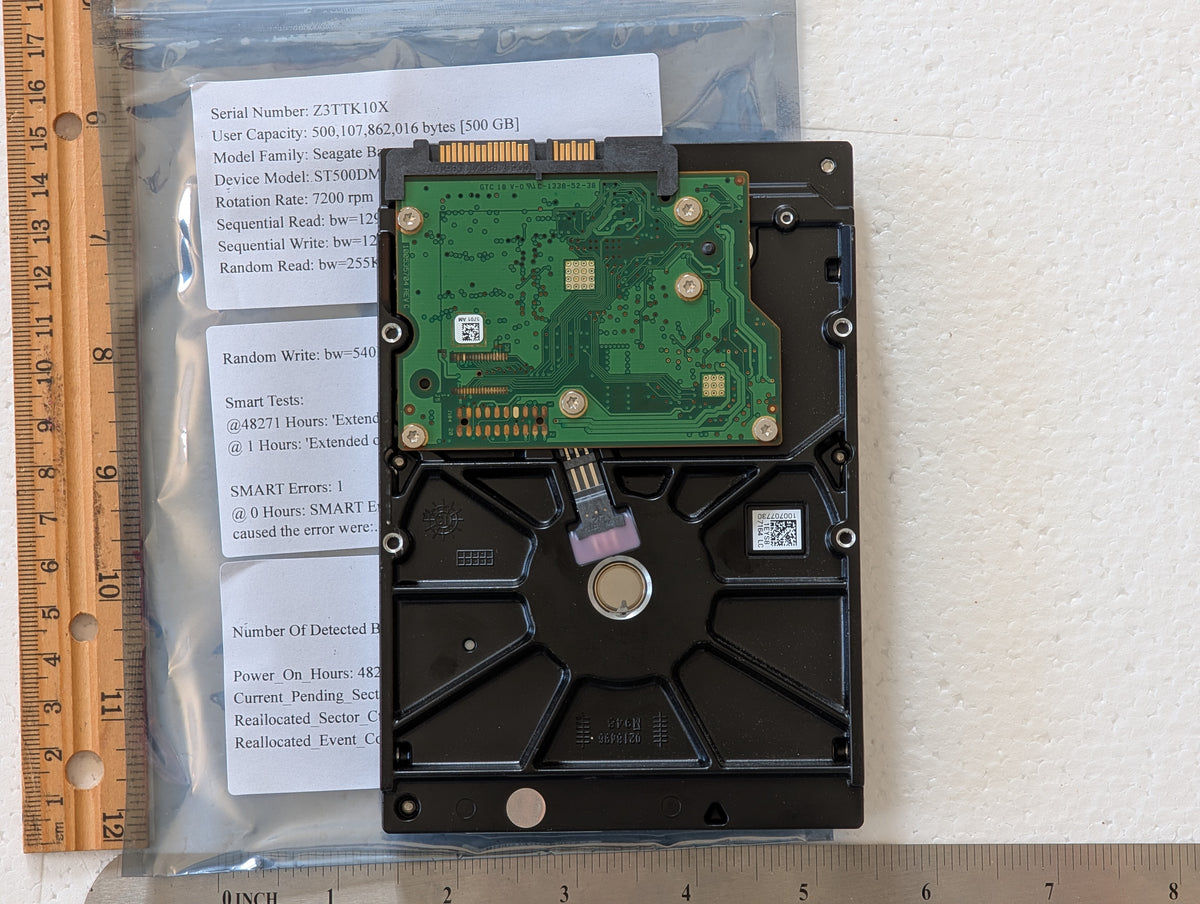

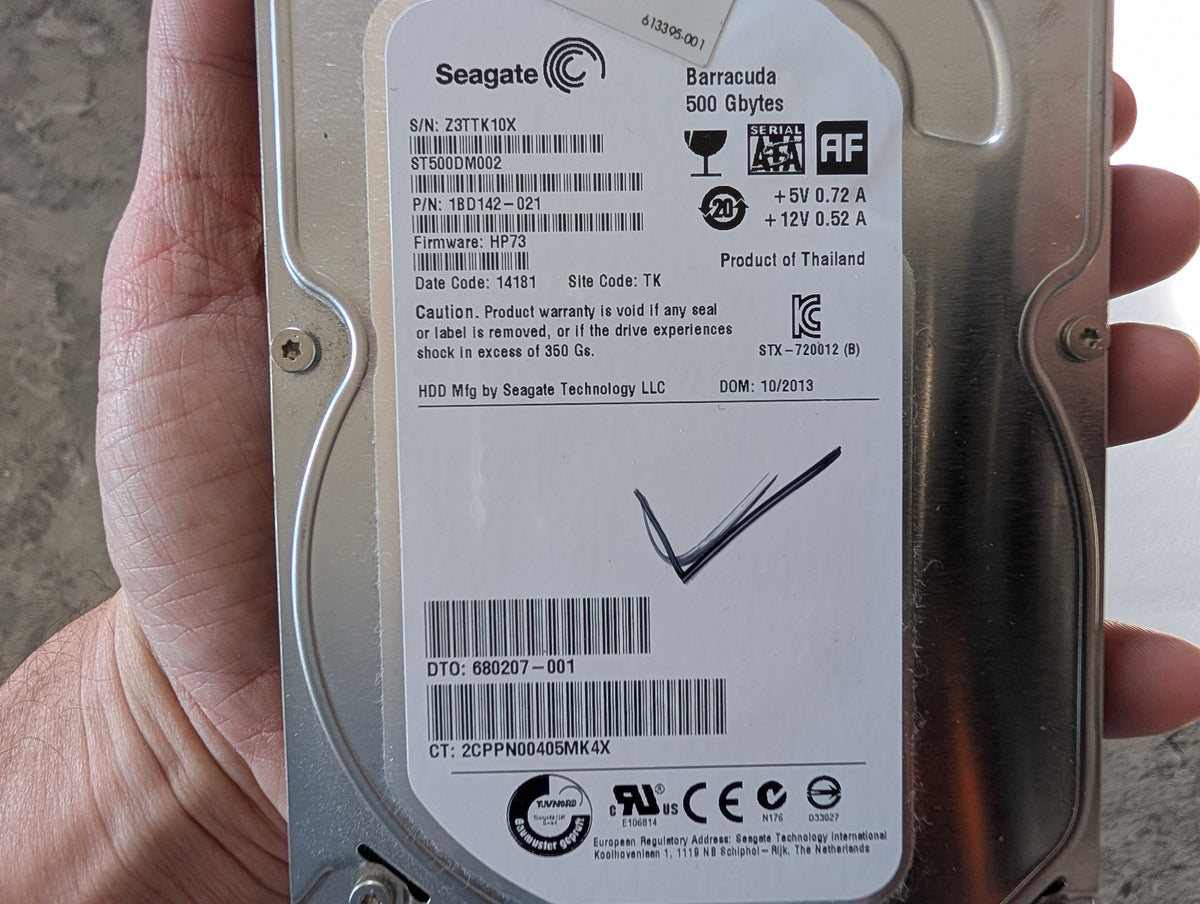

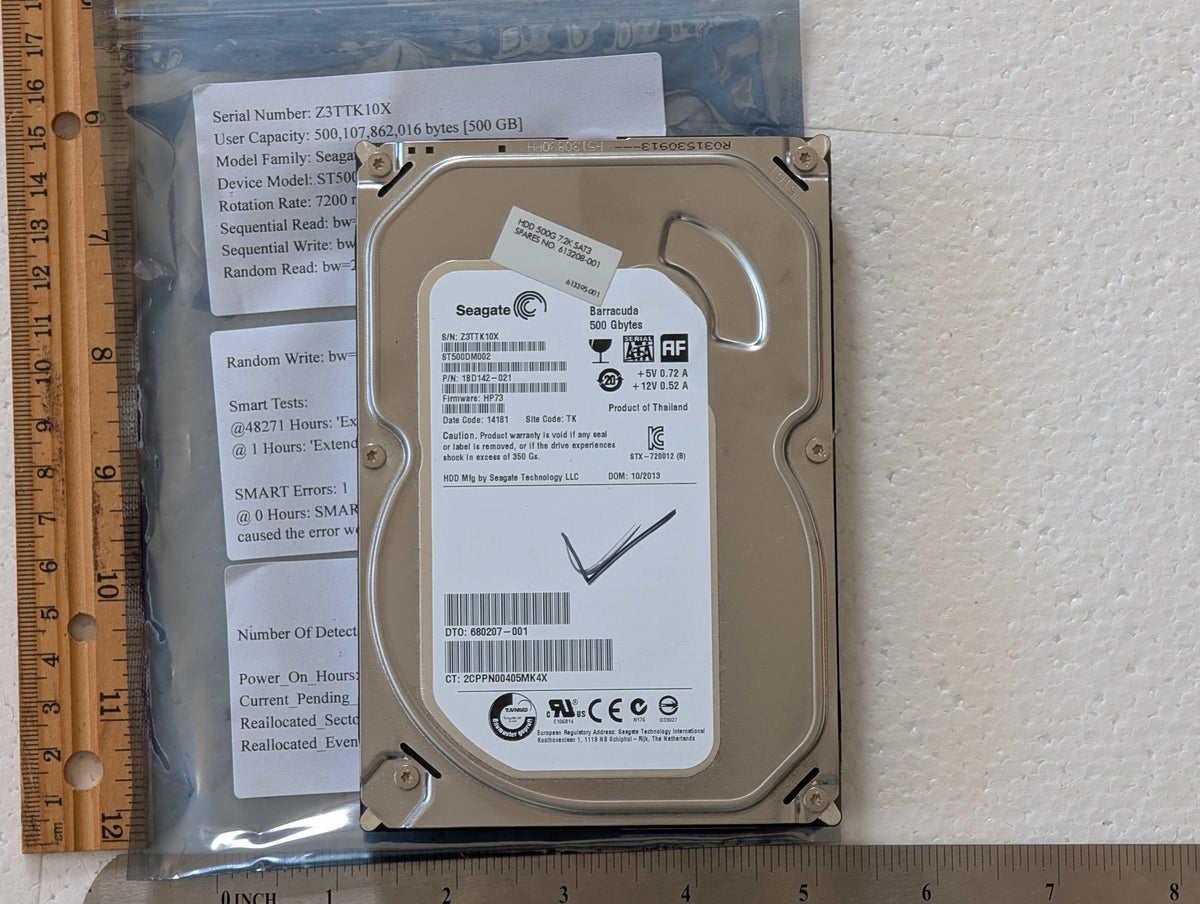

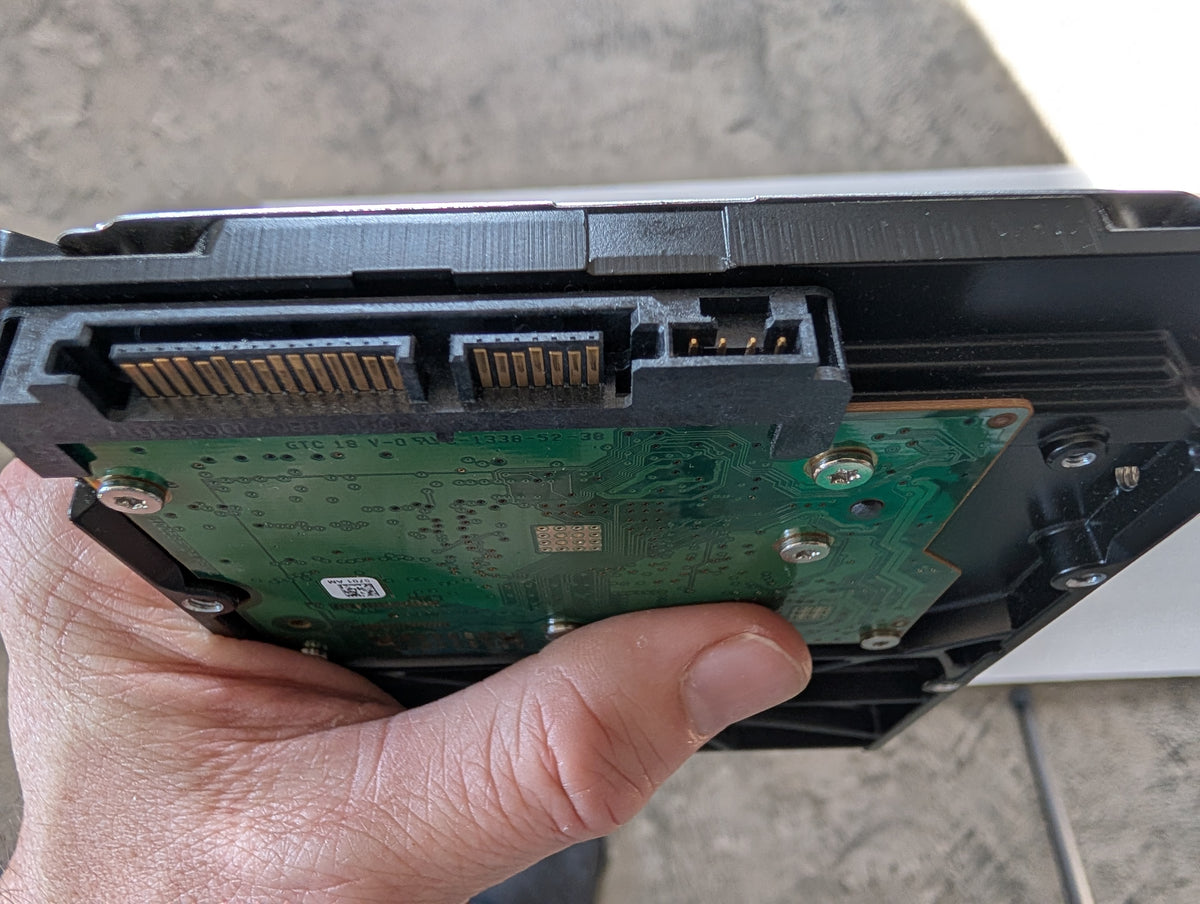

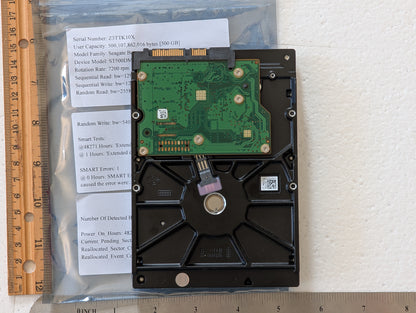

500GB Seagate, ST500DM002-1BD142, (smart_error_count=1)
500GB Seagate, ST500DM002-1BD142, (smart_error_count=1)
Regular price
$8.68 CAD
Regular price
Sale price
$8.68 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
500GB, Seagate ST500DM002-1BD142, used hard drive, 7200 RPM, SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s), with 48273 powered-on hours.
Diagnostic notes: smart_error_count=1. Review the recorded results below before purchase.
Important notes
- This drive weighs 415 grams.
- Pending sectors: 0
- Reallocated sectors: 0
- Logged SMART errors: 1
- CRC errors: 0
- spin_retry_count: 0
- Reallocation events: 0
- Offline uncorrectable sectors: 0
- Reported uncorrectable errors: 0
- Power cycles: 2905
- SMART overall health: PASSED
- Latest Extended offline self-test: Completed without error
- Badblocks was run using the standard four-pass pattern test, and 0 bad blocks were found.
You will receive this specific drive, identified in this listing as serial Z3TTK10X.
This used drive is sold 'as is', with no warranty on its functionality. I do warrant that the testing described in this listing was actually performed on this specific drive and that the SMART output reproduced below is the output obtained from this drive. In general, SMART data can be erased or tampered with, for example to reset the reported powered-on hours to zero. I certify that I have not erased, reset, or otherwise tampered with this drive's SMART data, but I cannot certify that a previous owner has not done so.
Counters such as powered-on hours and power-cycle counts may differ slightly from the recorded output because the drive may have been powered on again between the time the SMART output was captured and packaging for shipment.
Recorded fio performance tests
These tests were performed over a USB interface. The demonstrated transfer speeds may be artificially limited by the USB 3 interface.
SEQUENTIAL READ: bw=129MiB/s (136MB/s) SEQUENTIAL WRITE: bw=127MiB/s (133MB/s) RANDOM READ: bw=255KiB/s (261kB/s) RANDOM WRITE: bw=540KiB/s (553kB/s) RANDOM READ (Queue Depth=1): bw=251KiB/s (257kB/s)
Output from fdisk -l /dev/sdf
Disk /dev/sdf: 465.76 GiB, 500107862016 bytes, 976773168 sectors Disk model: USB3.0 DISK04 Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes
Output from hdparm -I /dev/sdf
/dev/sdf:
ATA device, with non-removable media
Model Number: ST500DM002-1BD142
Serial Number: Z3TTK10X
Firmware Revision: HP73
Transport: Serial, SATA Rev 3.0
Standards:
Used: unknown (minor revision code 0x0029)
Supported: 8 7 6 5
Likely used: 8
Configuration:
Logical max current
cylinders 16383 16383
heads 16 16
sectors/track 63 63
--
CHS current addressable sectors: 16514064
LBA user addressable sectors: 268435455
LBA48 user addressable sectors: 976773168
Logical Sector size: 512 bytes
Physical Sector size: 4096 bytes
Logical Sector-0 offset: 0 bytes
device size with M = 1024*1024: 476940 MBytes
device size with M = 1000*1000: 500107 MBytes (500 GB)
cache/buffer size = 16384 KBytes
Nominal Media Rotation Rate: 7200
Capabilities:
LBA, IORDY(can be disabled)
Queue depth: 32
Standby timer values: spec'd by Standard, no device specific minimum
R/W multiple sector transfer: Max = 16 Current = ?
Recommended acoustic management value: 208, current value: 0
DMA: mdma0 mdma1 *mdma2 udma0 udma1 udma2 udma3 udma4 udma5
Cycle time: min=120ns recommended=120ns
PIO: pio0 pio1 pio2 pio3 pio4
Cycle time: no flow control=120ns IORDY flow control=120ns
Commands/features:
Enabled Supported:
* SMART feature set
Security Mode feature set
* Power Management feature set
* Write cache
* Look-ahead
* WRITE_BUFFER command
* READ_BUFFER command
* DOWNLOAD_MICROCODE
* 48-bit Address feature set
* Device Configuration Overlay feature set
* Mandatory FLUSH_CACHE
* FLUSH_CACHE_EXT
* SMART error logging
* SMART self-test
* General Purpose Logging feature set
* WRITE_{DMA|MULTIPLE}_FUA_EXT
* 64-bit World wide name
Write-Read-Verify feature set
* WRITE_UNCORRECTABLE_EXT command
* {READ,WRITE}_DMA_EXT_GPL commands
* Segmented DOWNLOAD_MICROCODE
* Gen1 signaling speed (1.5Gb/s)
* Gen2 signaling speed (3.0Gb/s)
* Gen3 signaling speed (6.0Gb/s)
* Native Command Queueing (NCQ)
* Phy event counters
* READ_LOG_DMA_EXT equivalent to READ_LOG_EXT
Device-initiated interface power management
* Software settings preservation
* SMART Command Transport (SCT) feature set
* SCT Read/Write Long (AC1), obsolete
* SCT Error Recovery Control (AC3)
* SCT Features Control (AC4)
* SCT Data Tables (AC5)
unknown 206[12] (vendor specific)
Security:
Master password revision code = 65534
supported
not enabled
not locked
not frozen
not expired: security count
supported: enhanced erase
78min for SECURITY ERASE UNIT. 78min for ENHANCED SECURITY ERASE UNIT.
Logical Unit WWN Device Identifier: 5000c500654a95e0
NAA : 5
IEEE OUI : 000c50
Unique ID : 0654a95e0
Checksum: correct
Output from smartctl -x /dev/sdf
smartctl 7.5 2025-04-30 r5714 [x86_64-linux-7.0.0-31-generic] (local build)
Copyright (C) 2002-25, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Seagate Barracuda 7200.14 (AF)
Device Model: ST500DM002-1BD142
Serial Number: Z3TTK10X
LU WWN Device Id: 5 000c50 0654a95e0
Firmware Version: HP73
User Capacity: 500,107,862,016 bytes [500 GB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Rotation Rate: 7200 rpm
Device is: In smartctl database 7.5/5706
ATA Version is: ATA8-ACS T13/1699-D revision 4
SATA Version is: SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Tue Sep 15 03:03:28 2026 UTC
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Unavailable
APM feature is: Unavailable
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, NOT FROZEN [SEC1]
=== START OF READ SMART DATA SECTION ===
SMART Status not supported: Incomplete response, ATA output registers missing
SMART overall-health self-assessment test result: PASSED
Warning: This result is based on an Attribute check.
General SMART Values:
Offline data collection status: (0x82) Offline data collection activity
was completed without error.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 600) seconds.
Offline data collection
capabilities: (0x5b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
No Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 81) minutes.
SCT capabilities: (0x103b) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate POSR-K 108 099 006 - 30304
3 Spin_Up_Time PO---K 099 097 000 - 0
4 Start_Stop_Count -O--CK 098 098 020 - 2969
5 Reallocated_Sector_Ct PO--CK 100 100 036 - 0
7 Seek_Error_Rate POSR-K 085 060 030 - 9318404133
9 Power_On_Hours -O--CK 045 045 000 - 48273
10 Spin_Retry_Count PO--CK 100 100 097 - 0
12 Power_Cycle_Count -O--CK 098 098 020 - 2905
180 Unknown_HDD_Attribute PO-R-K 100 100 000 - 0
183 Runtime_Bad_Block -O--CK 100 100 000 - 0
184 End-to-End_Error PO--CK 100 100 097 - 0
187 Reported_Uncorrect -O--CK 100 100 000 - 0
188 Command_Timeout -O--CK 100 100 000 - 0 0 0
189 High_Fly_Writes -O-RCK 100 100 000 - 0
190 Airflow_Temperature_Cel -O---K 067 062 045 - 33 (Min/Max 21/37)
194 Temperature_Celsius -O---K 033 040 000 - 33 (0 17 0 0 0)
195 Hardware_ECC_Recovered -O-RCK 045 027 000 - 30304
196 Reallocated_Event_Count -O--CK 100 100 036 - 0
197 Current_Pending_Sector -O--CK 100 100 000 - 0
198 Offline_Uncorrectable ----CK 100 100 000 - 0
199 UDMA_CRC_Error_Count -O--CK 200 200 000 - 0
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x02 SL R/O 5 Comprehensive SMART error log
0x03 GPL R/O 5 Ext. Comprehensive SMART error log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x09 SL R/W 1 Selective self-test log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x21 GPL R/O 1 Write stream error log
0x22 GPL R/O 1 Read stream error log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xa1 GPL,SL VS 20 Device vendor specific log
0xa2 GPL VS 2248 Device vendor specific log
0xa8 GPL,SL VS 129 Device vendor specific log
0xa9 GPL,SL VS 1 Device vendor specific log
0xab GPL VS 1 Device vendor specific log
0xb0 GPL VS 2928 Device vendor specific log
0xbd GPL VS 252 Device vendor specific log
0xbe-0xbf GPL VS 65535 Device vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (5 sectors)
Device Error Count: 1
CR = Command Register
FEATR = Features Register
COUNT = Count (was: Sector Count) Register
LBA_48 = Upper bytes of LBA High/Mid/Low Registers ] ATA-8
LH = LBA High (was: Cylinder High) Register ] LBA
LM = LBA Mid (was: Cylinder Low) Register ] Register
LL = LBA Low (was: Sector Number) Register ]
DV = Device (was: Device/Head) Register
DC = Device Control Register
ER = Error register
ST = Status register
Powered_Up_Time is measured from power on, and printed as
DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,
SS=sec, and sss=millisec. It "wraps" after 49.710 days.
Error 1 [0] occurred at disk power-on lifetime: 0 hours (0 days + 0 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
08 -- 51 00 00 00 00 00 00 00 00 00 00 Error:
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
3f 00 00 00 01 00 24 00 00 59 be 40 00 00:00:11.029 WRITE LOG EXT
2f 00 00 00 02 00 24 00 00 59 bf 40 00 00:00:11.028 READ LOG EXT
3f 00 00 00 01 00 24 00 00 59 be 40 00 00:00:11.027 WRITE LOG EXT
2f 00 00 00 02 00 24 00 00 59 bf 40 00 00:00:11.027 READ LOG EXT
3f 00 00 00 01 00 24 00 00 59 be 40 00 00:00:11.026 WRITE LOG EXT
SMART Extended Self-test Log Version: 1 (1 sectors)
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Extended offline Completed without error 00% 48271 -
# 2 Extended offline Interrupted (host reset) 90% 1 -
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
SCT Status Version: 3
SCT Version (vendor specific): 522 (0x020a)
Device State: Active (0)
Current Temperature: 33 Celsius
Power Cycle Min/Max Temperature: 21/38 Celsius
Lifetime Min/Max Temperature: 17/38 Celsius
Under/Over Temperature Limit Count: 0/0
SCT Temperature History Version: 2
Temperature Sampling Period: 1 minute
Temperature Logging Interval: 59 minutes
Min/Max recommended Temperature: 14/55 Celsius
Min/Max Temperature Limit: 10/60 Celsius
Temperature History Size (Index): 128 (27)
Index Estimated Time Temperature Celsius
28 2026-09-09 21:16 34 ***************
29 2026-09-09 22:15 35 ****************
... ..( 6 skipped). .. ****************
36 2026-09-10 05:08 35 ****************
37 2026-09-10 06:07 37 ******************
38 2026-09-10 07:06 35 ****************
... ..( 3 skipped). .. ****************
42 2026-09-10 11:02 35 ****************
43 2026-09-10 12:01 34 ***************
... ..( 3 skipped). .. ***************
47 2026-09-10 15:57 34 ***************
48 2026-09-10 16:56 35 ****************
49 2026-09-10 17:55 36 *****************
50 2026-09-10 18:54 35 ****************
... ..( 4 skipped). .. ****************
55 2026-09-10 23:49 35 ****************
56 2026-09-11 00:48 36 *****************
57 2026-09-11 01:47 36 *****************
58 2026-09-11 02:46 35 ****************
... ..( 3 skipped). .. ****************
62 2026-09-11 06:42 35 ****************
63 2026-09-11 07:41 34 ***************
64 2026-09-11 08:40 34 ***************
65 2026-09-11 09:39 36 *****************
66 2026-09-11 10:38 36 *****************
67 2026-09-11 11:37 35 ****************
68 2026-09-11 12:36 35 ****************
69 2026-09-11 13:35 36 *****************
70 2026-09-11 14:34 35 ****************
71 2026-09-11 15:33 ? -
72 2026-09-11 16:32 26 *******
73 2026-09-11 17:31 ? -
74 2026-09-11 18:30 26 *******
75 2026-09-11 19:29 ? -
76 2026-09-11 20:28 21 **
77 2026-09-11 21:27 35 ****************
78 2026-09-11 22:26 34 ***************
... ..( 2 skipped). .. ***************
81 2026-09-12 01:23 34 ***************
82 2026-09-12 02:22 33 **************
... ..( 3 skipped). .. **************
86 2026-09-12 06:18 33 **************
87 2026-09-12 07:17 32 *************
... ..( 2 skipped). .. *************
90 2026-09-12 10:14 32 *************
91 2026-09-12 11:13 31 ************
92 2026-09-12 12:12 31 ************
93 2026-09-12 13:11 32 *************
... ..( 2 skipped). .. *************
96 2026-09-12 16:08 32 *************
97 2026-09-12 17:07 33 **************
98 2026-09-12 18:06 33 **************
99 2026-09-12 19:05 34 ***************
... ..( 5 skipped). .. ***************
105 2026-09-13 00:59 34 ***************
106 2026-09-13 01:58 33 **************
107 2026-09-13 02:57 34 ***************
108 2026-09-13 03:56 34 ***************
109 2026-09-13 04:55 33 **************
... ..( 2 skipped). .. **************
112 2026-09-13 07:52 33 **************
113 2026-09-13 08:51 32 *************
... ..( 5 skipped). .. *************
119 2026-09-13 14:45 32 *************
120 2026-09-13 15:44 33 **************
... ..( 17 skipped). .. **************
10 2026-09-14 09:26 33 **************
11 2026-09-14 10:25 35 ****************
12 2026-09-14 11:24 35 ****************
13 2026-09-14 12:23 35 ****************
14 2026-09-14 13:22 36 *****************
15 2026-09-14 14:21 36 *****************
16 2026-09-14 15:20 35 ****************
17 2026-09-14 16:19 36 *****************
18 2026-09-14 17:18 37 ******************
19 2026-09-14 18:17 37 ******************
20 2026-09-14 19:16 38 *******************
21 2026-09-14 20:15 37 ******************
22 2026-09-14 21:14 34 ***************
23 2026-09-14 22:13 34 ***************
24 2026-09-14 23:12 34 ***************
25 2026-09-15 00:11 37 ******************
26 2026-09-15 01:10 35 ****************
27 2026-09-15 02:09 34 ***************
SMART WRITE LOG does not return COUNT and LBA_LOW register
SCT (Get) Error Recovery Control command failed
Device Statistics (GP/SMART Log 0x04) not supported
Pending Defects log (GP Log 0x0c) not supported
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x000a 2 13 Device-to-host register FISes sent due to a COMRESET
0x0001 2 0 Command failed due to ICRC error
0x0003 2 0 R_ERR response for device-to-host data FIS
0x0004 2 0 R_ERR response for host-to-device data FIS
0x0006 2 0 R_ERR response for device-to-host non-data FIS
0x0007 2 0 R_ERR response for host-to-device non-data FIS
Share
