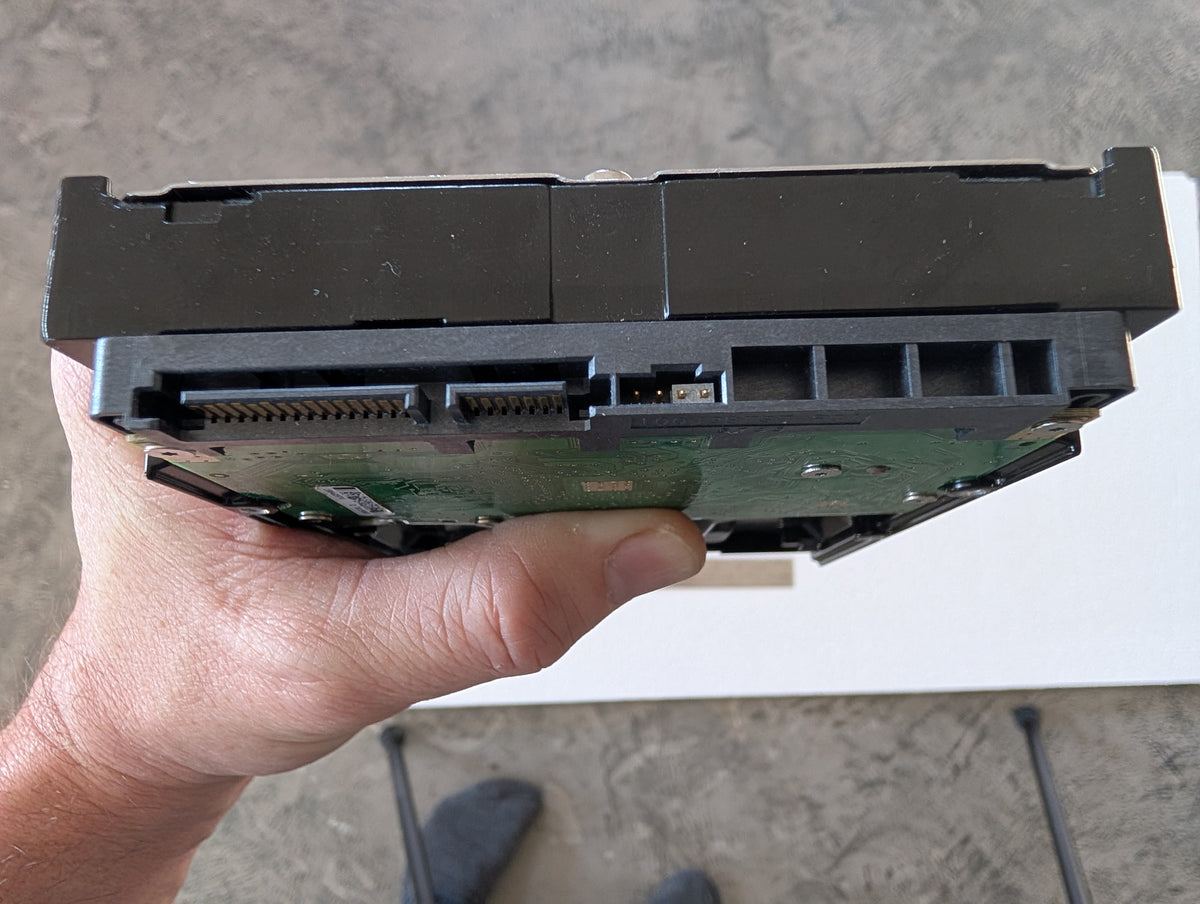

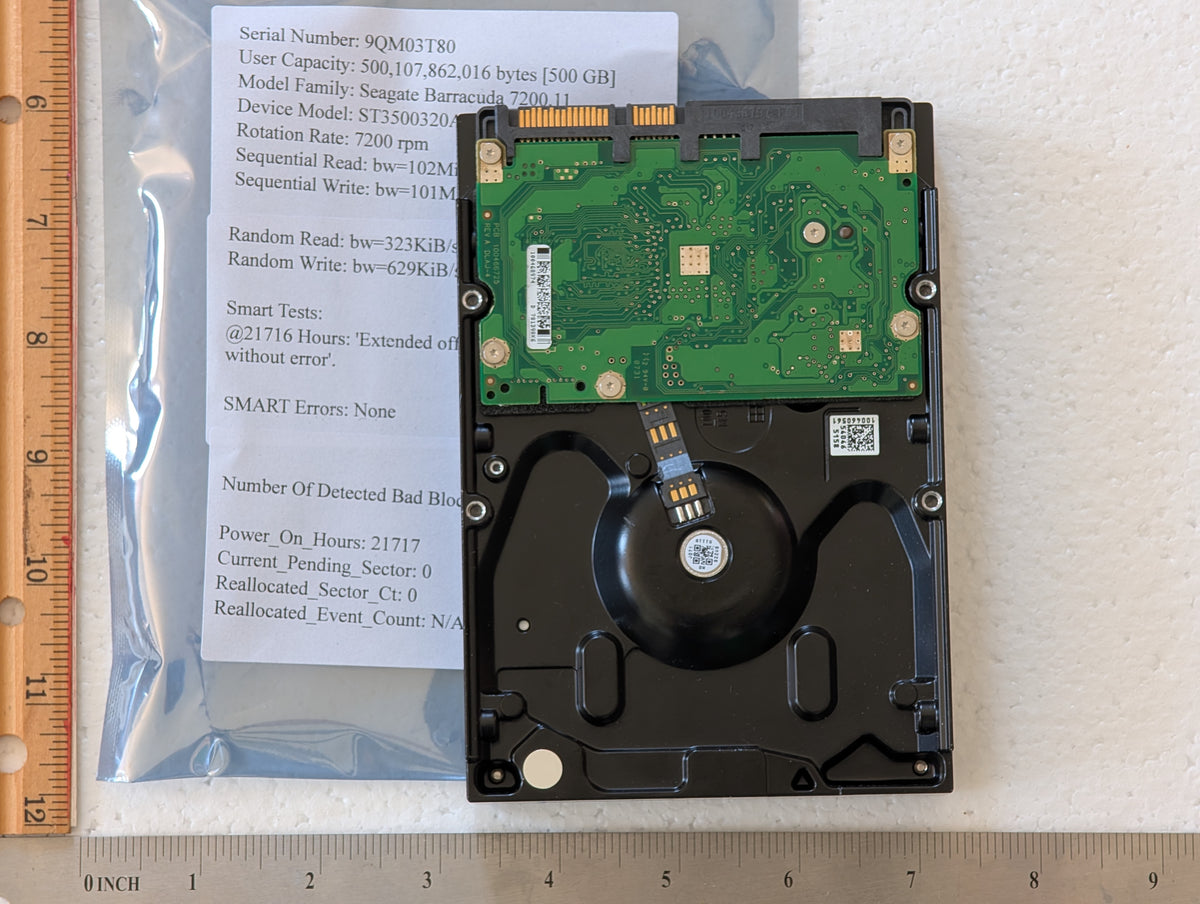

500GB Seagate, ST3500320AS, (21717 Powered On Hours)
500GB Seagate, ST3500320AS, (21717 Powered On Hours)
Regular price
$11.27 CAD
Regular price
Sale price
$11.27 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
500GB, Seagate ST3500320AS, used hard drive, 7200 RPM, with 21717 powered-on hours.
The recorded SMART overall-health assessment and latest logged self-test passed. This describes the saved test results, not a guarantee of future reliability.
Important notes
- This drive weighs 540 grams.
- Pending sectors: 0
- Reallocated sectors: 0
- Logged SMART errors: 0
- CRC errors: 0
- spin_retry_count=1; disclosed as recorded, not treated by itself as a failed health assessment.
- Offline uncorrectable sectors: 0
- Reported uncorrectable errors: 0
- Power cycles: 466
- SMART overall health: PASSED
- Latest Extended offline self-test: Completed without error
- Badblocks was run using the standard four-pass pattern test, and 0 bad blocks were found.

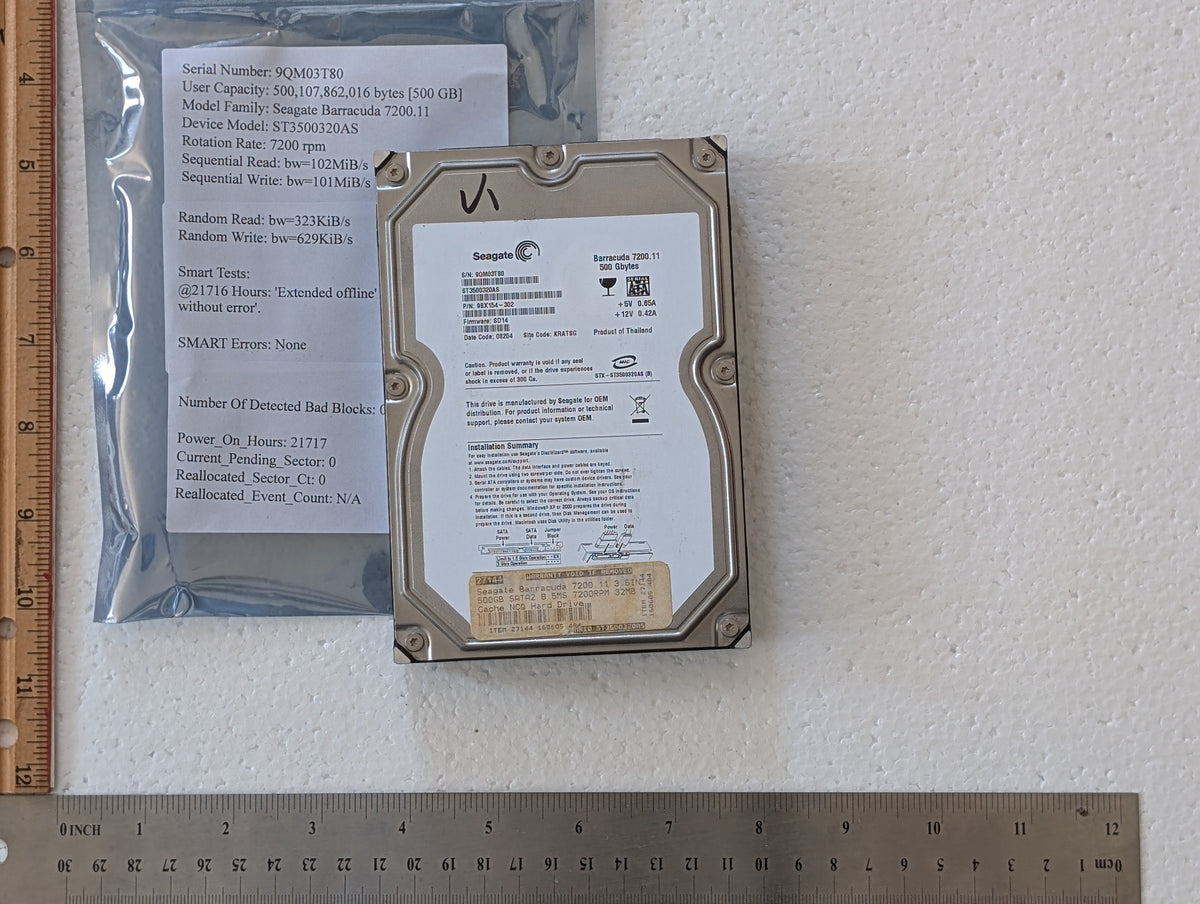

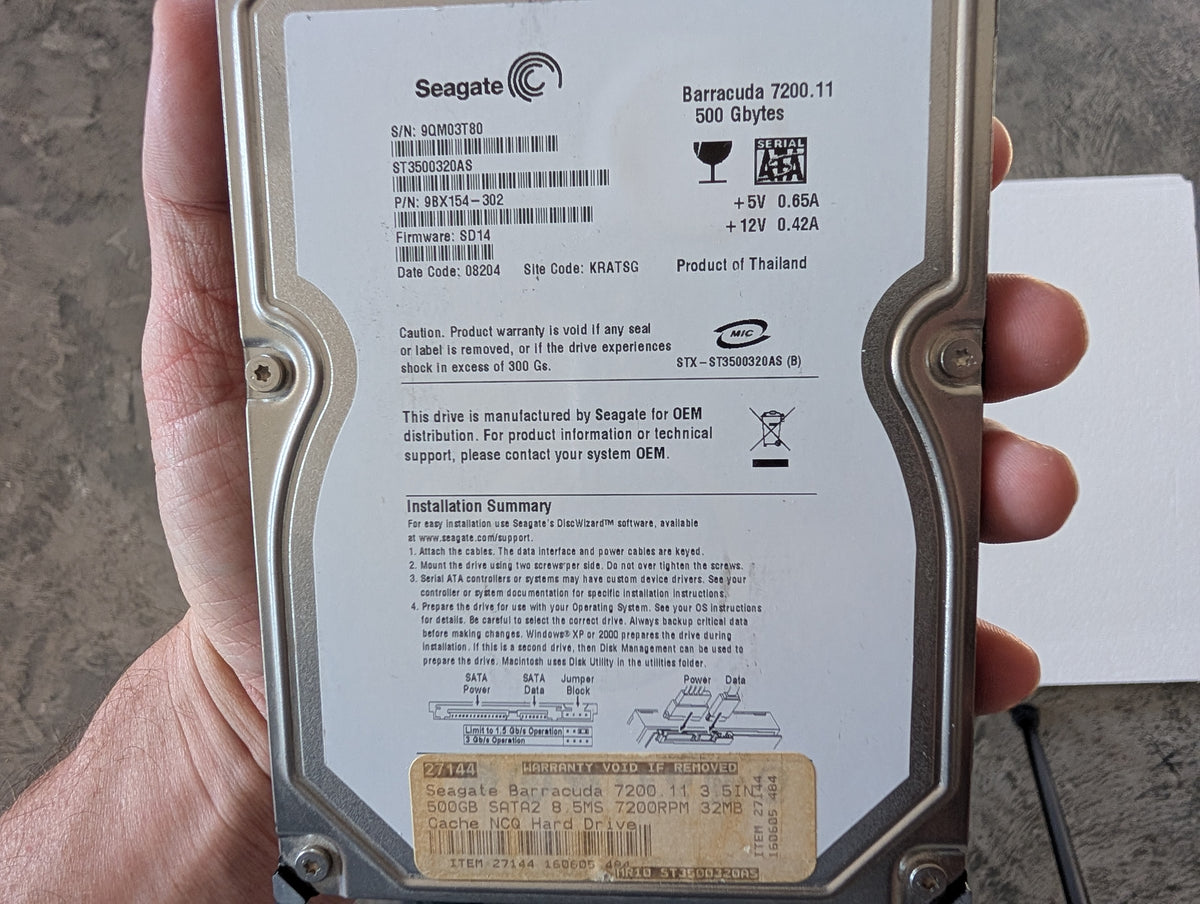

You will receive this specific drive, identified in this listing as serial 9QM03T80.
This used drive is sold 'as is', with no warranty on its functionality. I do warrant that the testing described in this listing was actually performed on this specific drive and that the SMART output reproduced below is the output obtained from this drive. In general, SMART data can be erased or tampered with, for example to reset the reported powered-on hours to zero. I certify that I have not erased, reset, or otherwise tampered with this drive's SMART data, but I cannot certify that a previous owner has not done so.
Counters such as powered-on hours and power-cycle counts may differ slightly from the recorded output because the drive may have been powered on again between the time the SMART output was captured and packaging for shipment.
Recorded fio performance tests
These tests were performed over a USB interface. The demonstrated transfer speeds may be artificially limited by the USB 3 interface.
SEQUENTIAL READ: bw=102MiB/s (107MB/s) SEQUENTIAL WRITE: bw=101MiB/s (106MB/s) RANDOM READ: bw=323KiB/s (331kB/s) RANDOM WRITE: bw=629KiB/s (644kB/s) RANDOM READ (Queue Depth=1): bw=313KiB/s (321kB/s)
Output from fdisk -l /dev/sdc
Disk /dev/sdc: 465.76 GiB, 500107862016 bytes, 976773168 sectors Disk model: USB3.0 DISK01 Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes
Output from hdparm -I /dev/sdc
/dev/sdc: ATA device, with non-removable media Model Number: ST3500320AS Serial Number: 9QM03T80 Firmware Revision: SD14 Standards: Supported: 7 6 5 4 Likely used: 8 Configuration: Logical max current cylinders 16383 16383 heads 16 16 sectors/track 63 63 -- CHS current addressable sectors: 16514064 LBA user addressable sectors: 268435455 LBA48 user addressable sectors: 976773168 Logical/Physical Sector size: 512 bytes device size with M = 1024*1024: 476940 MBytes device size with M = 1000*1000: 500107 MBytes (500 GB) cache/buffer size = unknown Nominal Media Rotation Rate: 7200 Capabilities: LBA, IORDY(can be disabled) Queue depth: 32 Standby timer values: spec'd by Standard, no device specific minimum R/W multiple sector transfer: Max = 16 Current = ? Recommended acoustic management value: 254, current value: 0 DMA: mdma0 mdma1 mdma2 udma0 udma1 udma2 udma3 udma4 udma5 *udma6 Cycle time: min=120ns recommended=120ns PIO: pio0 pio1 pio2 pio3 pio4 Cycle time: no flow control=120ns IORDY flow control=120ns Commands/features: Enabled Supported: * SMART feature set Security Mode feature set * Power Management feature set * Write cache * Look-ahead * Host Protected Area feature set * WRITE_BUFFER command * READ_BUFFER command * DOWNLOAD_MICROCODE SET_MAX security extension * 48-bit Address feature set * Device Configuration Overlay feature set * Mandatory FLUSH_CACHE * FLUSH_CACHE_EXT * SMART error logging * SMART self-test General Purpose Logging feature set * 64-bit World wide name * Write-Read-Verify feature set * WRITE_UNCORRECTABLE_EXT command * Gen1 signaling speed (1.5Gb/s) * Native Command Queueing (NCQ) * Phy event counters * Software settings preservation * SMART Command Transport (SCT) feature set * SCT Read/Write Long (AC1), obsolete * SCT Error Recovery Control (AC3) * SCT Features Control (AC4) * SCT Data Tables (AC5) Security: Master password revision code = 65534 supported not enabled not locked not frozen not expired: security count supported: enhanced erase Logical Unit WWN Device Identifier: 5000c50009a4840e NAA : 5 IEEE OUI : 000c50 Unique ID : 009a4840e Checksum: correct
Output from smartctl -x /dev/sdc
smartctl 7.5 2025-04-30 r5714 [x86_64-linux-7.0.0-31-generic] (local build)
Copyright (C) 2002-25, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Seagate Barracuda 7200.11
Device Model: ST3500320AS
Serial Number: 9QM03T80
LU WWN Device Id: 5 000c50 009a4840e
Firmware Version: SD14
User Capacity: 500,107,862,016 bytes [500 GB]
Sector Size: 512 bytes logical/physical
Rotation Rate: 7200 rpm
Device is: In smartctl database 7.5/5706
ATA Version is: ATA/ATAPI-7 (minor revision not indicated)
Local Time is: Tue Sep 15 03:03:27 2026 UTC
==> WARNING: There are known problems with these drives,
see the following Seagate web pages:
http://knowledge.seagate.com/articles/en_US/FAQ/207931en
http://knowledge.seagate.com/articles/en_US/FAQ/207951en
http://knowledge.seagate.com/articles/en_US/FAQ/207957en
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Unavailable
APM feature is: Unavailable
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, NOT FROZEN [SEC1]
=== START OF READ SMART DATA SECTION ===
SMART Status not supported: Incomplete response, ATA output registers missing
SMART overall-health self-assessment test result: PASSED
Warning: This result is based on an Attribute check.
General SMART Values:
Offline data collection status: (0x82) Offline data collection activity
was completed without error.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 634) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 1) minutes.
Extended self-test routine
recommended polling time: ( 106) minutes.
Conveyance self-test routine
recommended polling time: ( 2) minutes.
SCT capabilities: (0x003b) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate POSR-- 118 099 006 - 177213299
3 Spin_Up_Time PO---- 095 091 000 - 0
4 Start_Stop_Count -O--CK 100 100 020 - 527
5 Reallocated_Sector_Ct PO--CK 100 100 036 - 0
7 Seek_Error_Rate POSR-- 075 060 030 - 8648801822
9 Power_On_Hours -O--CK 076 076 000 - 21717
10 Spin_Retry_Count PO--C- 100 100 097 - 1
12 Power_Cycle_Count -O--CK 100 037 020 - 466
184 End-to-End_Error -O--CK 100 100 099 - 0
187 Reported_Uncorrect -O--CK 100 100 000 - 0
188 Command_Timeout -O--CK 100 099 000 - 7
189 High_Fly_Writes -O-RCK 100 100 000 - 0
190 Airflow_Temperature_Cel -O---K 065 052 045 - 35 (Min/Max 21/37)
194 Temperature_Celsius -O---K 035 048 000 - 35 (0 17 0 0 0)
195 Hardware_ECC_Recovered -O-RC- 042 021 000 - 177213299
197 Current_Pending_Sector -O--C- 100 100 000 - 0
198 Offline_Uncorrectable ----C- 100 100 000 - 0
199 UDMA_CRC_Error_Count -OSRCK 200 200 000 - 0
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 GPL,SL R/O 1 Summary SMART error log
0x02 GPL,SL R/O 5 Comprehensive SMART error log
0x03 GPL,SL R/O 5 Ext. Comprehensive SMART error log
0x06 GPL,SL R/O 1 SMART self-test log
0x07 GPL,SL R/O 1 Extended self-test log
0x09 GPL,SL R/W 1 Selective self-test log
0x10 GPL,SL R/O 1 NCQ Command Error log
0x11 GPL,SL R/O 1 SATA Phy Event Counters log
0x21 GPL,SL R/O 1 Write stream error log
0x22 GPL,SL R/O 1 Read stream error log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xa1 GPL,SL VS 20 Device vendor specific log
0xa2 GPL VS 2248 Device vendor specific log
0xa8 GPL,SL VS 20 Device vendor specific log
0xa9 GPL,SL VS 1 Device vendor specific log
0xb0 GPL VS 2819 Device vendor specific log
0xbe-0xbf GPL VS 65535 Device vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (5 sectors)
No Errors Logged
SMART Extended Self-test Log Version: 1 (1 sectors)
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Extended offline Completed without error 00% 21716 -
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
SCT Status Version: 3
SCT Version (vendor specific): 522 (0x020a)
Device State: Active (0)
Current Temperature: 35 Celsius
Power Cycle Min/Max Temperature: 21/39 Celsius
Lifetime Min/Max Temperature: 17/48 Celsius
Under/Over Temperature Limit Count: 0/426
SCT Temperature History Version: 2
Temperature Sampling Period: 1 minute
Temperature Logging Interval: 1 minute
Min/Max recommended Temperature: 0/ 0 Celsius
Min/Max Temperature Limit: 0/ 0 Celsius
Temperature History Size (Index): 128 (56)
Index Estimated Time Temperature Celsius
57 2026-09-15 00:56 34 ***************
... ..( 47 skipped). .. ***************
105 2026-09-15 01:44 34 ***************
106 2026-09-15 01:45 35 ****************
... ..( 32 skipped). .. ****************
11 2026-09-15 02:18 35 ****************
12 2026-09-15 02:19 36 *****************
... ..( 11 skipped). .. *****************
24 2026-09-15 02:31 36 *****************
25 2026-09-15 02:32 35 ****************
... ..( 15 skipped). .. ****************
41 2026-09-15 02:48 35 ****************
42 2026-09-15 02:49 36 *****************
43 2026-09-15 02:50 35 ****************
44 2026-09-15 02:51 35 ****************
45 2026-09-15 02:52 37 ******************
... ..( 5 skipped). .. ******************
51 2026-09-15 02:58 37 ******************
52 2026-09-15 02:59 36 *****************
53 2026-09-15 03:00 35 ****************
... ..( 2 skipped). .. ****************
56 2026-09-15 03:03 35 ****************
SMART WRITE LOG does not return COUNT and LBA_LOW register
SCT (Get) Error Recovery Control command failed
Device Statistics (GP/SMART Log 0x04) not supported
Pending Defects log (GP Log 0x0c) not supported
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x000a 2 11 Device-to-host register FISes sent due to a COMRESET
0x0001 2 0 Command failed due to ICRC error
0x0003 2 0 R_ERR response for device-to-host data FIS
0x0004 2 0 R_ERR response for host-to-device data FIS
0x0006 2 0 R_ERR response for device-to-host non-data FIS
0x0007 2 0 R_ERR response for host-to-device non-data FIS
