4TB Seagate IronWolf NAS Hard Drive (2709 Powered On Hours)
4TB Seagate IronWolf NAS Hard Drive (2709 Powered On Hours)
Regular price
$175.00 CAD
Regular price
Sale price
$175.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

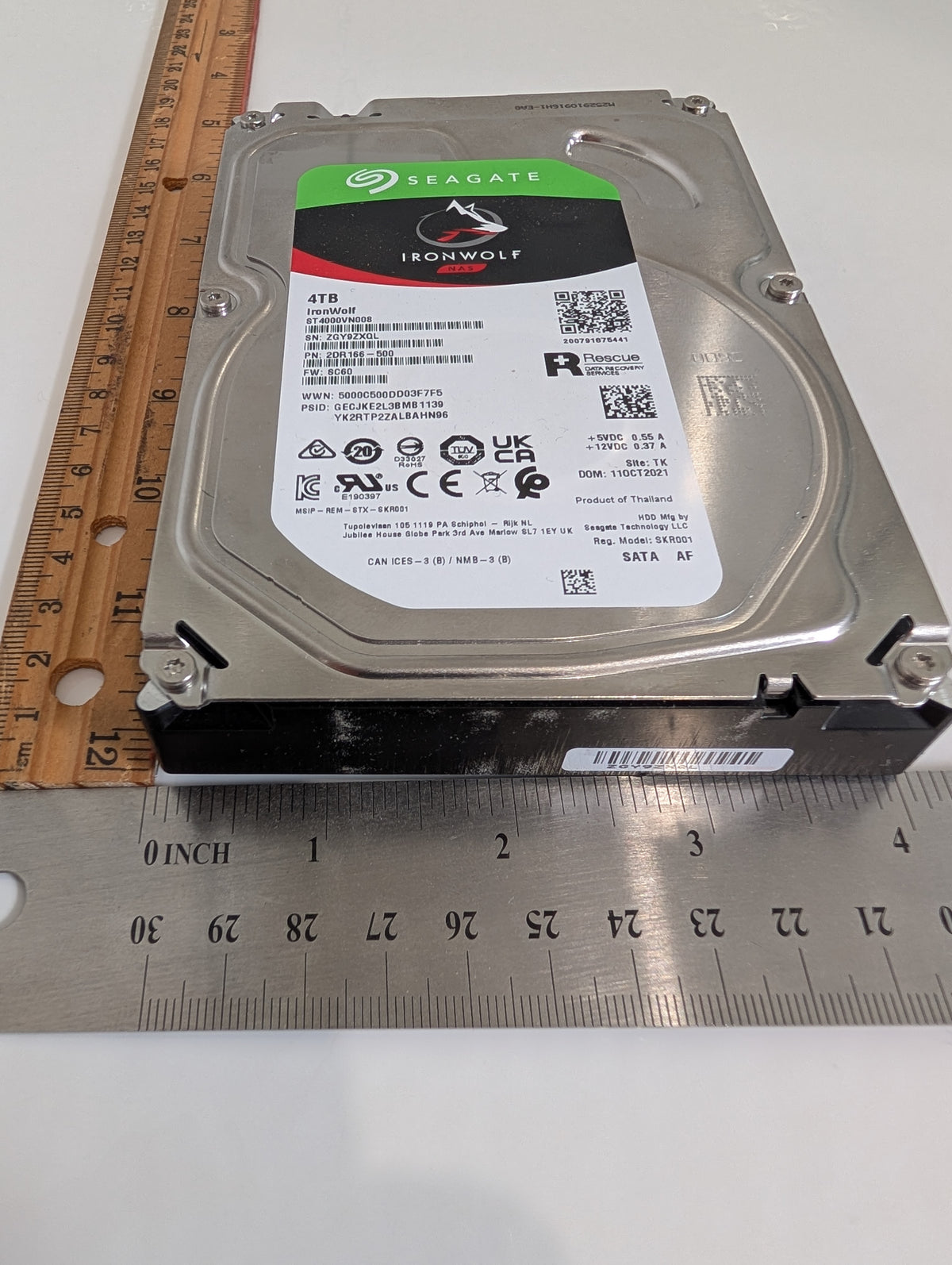

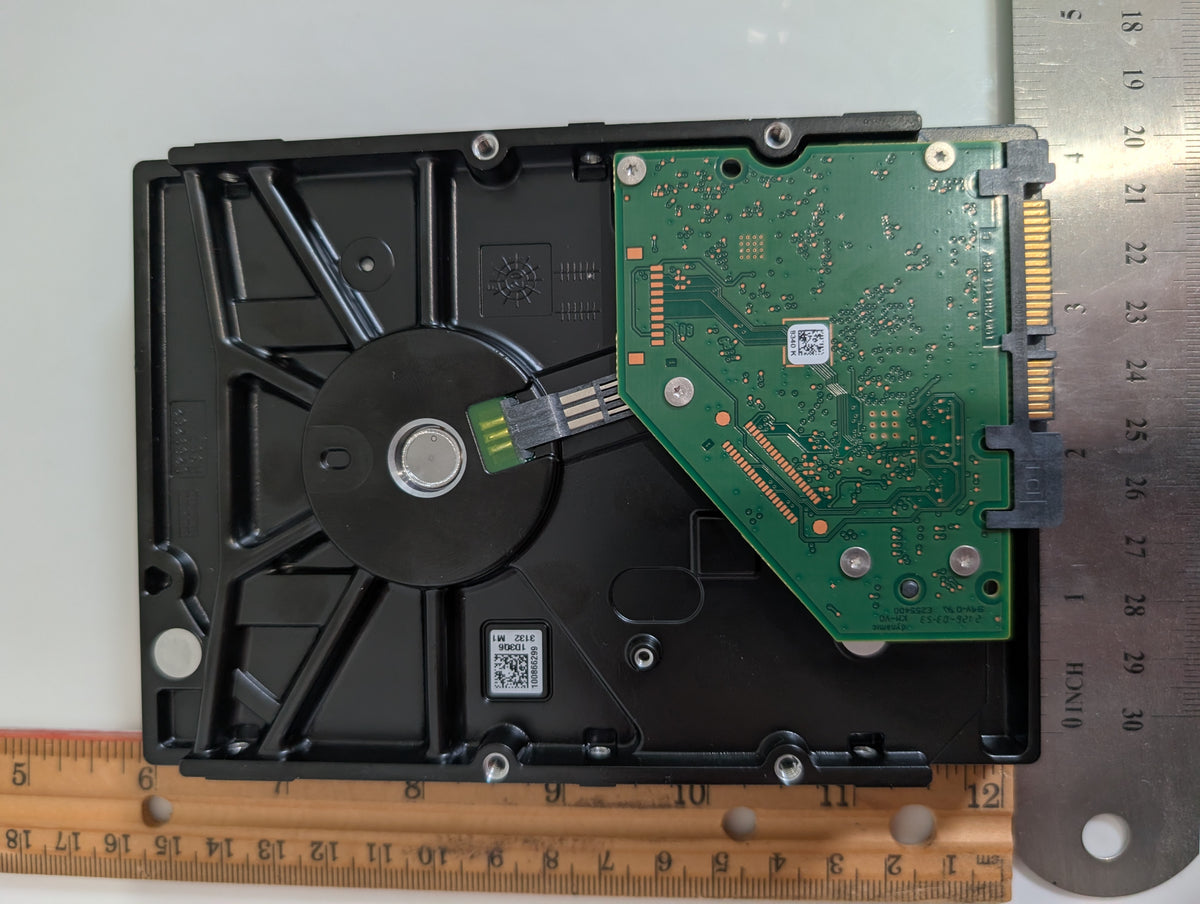

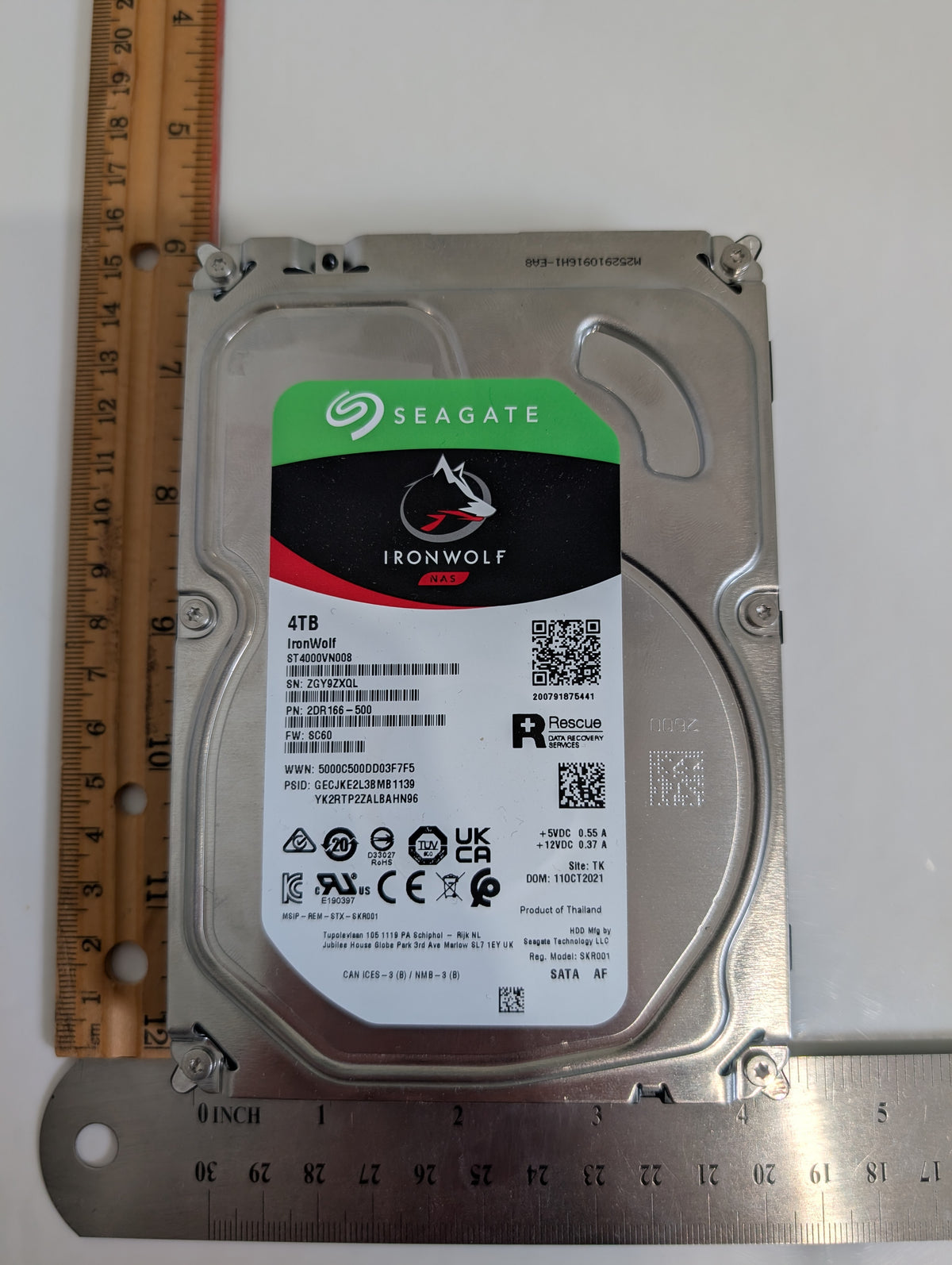

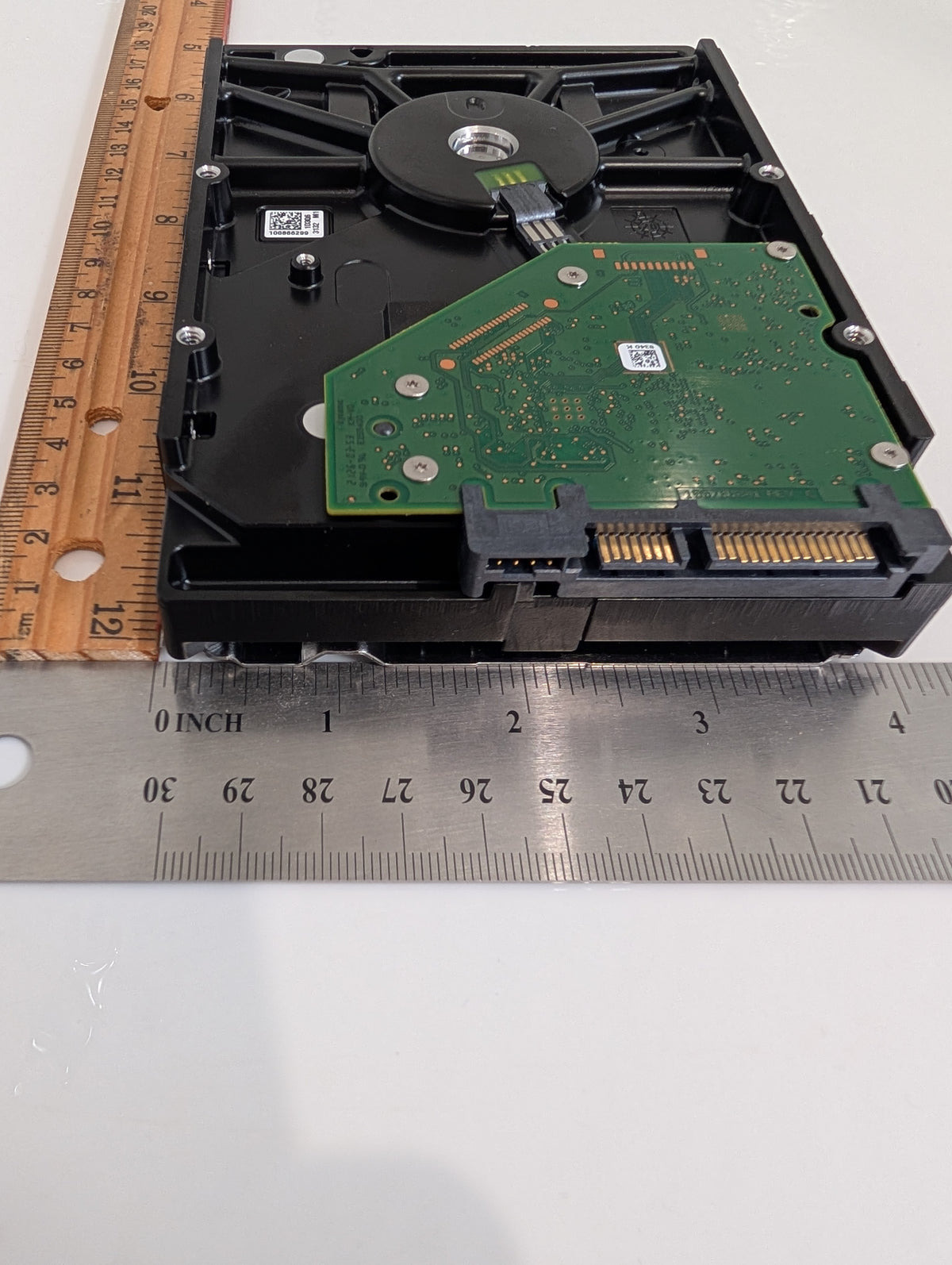

This is a used Seagate IronWolf 4TB NAS Hard Drive 5900 RPM 64MB Cache SATA 6.0Gb/s CMR 3.5" Internal HDD.
This drive still works perfectly and it passes multiple passes with badblocks and an extended smart test. It has ~2709 total hours powered on. I am selling this drive so I can replace it with a pool of much larger 16TB drives that take up less space.

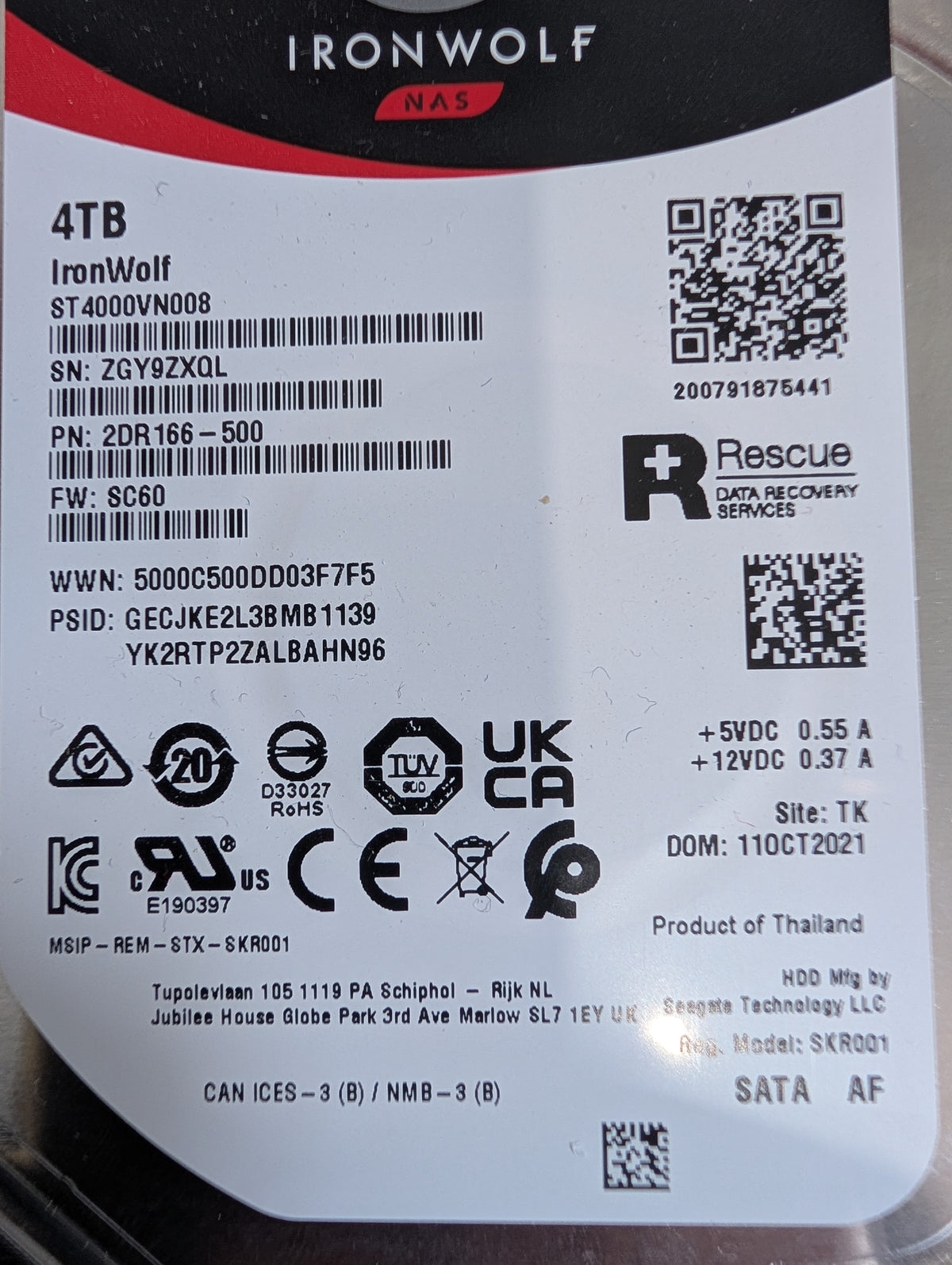

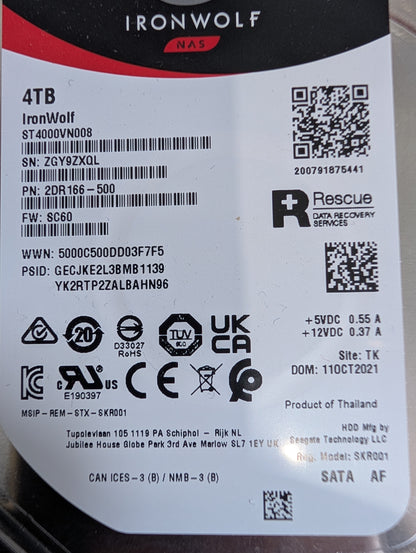

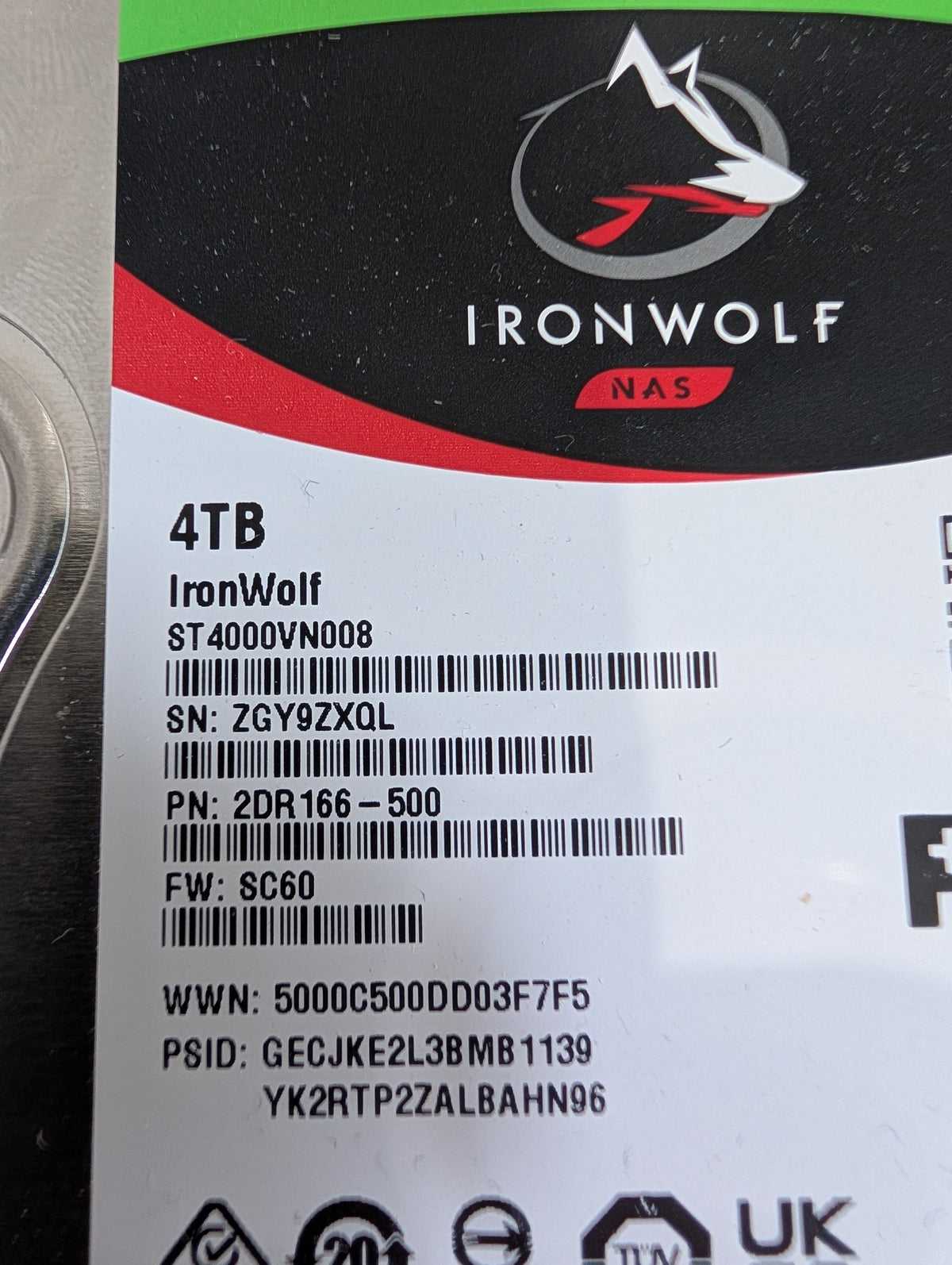

You will receive the exact same drive with the serial number shown in the images.
Since this is a used drive, it is being sold 'as is' and without warranty. I can personally certify that the output shown below is real and was actually run on this specific drive by me, and also that I ran badblocks tests on this specific drive and found no issues.
Here is the output from running fdisk -l /dev/sdb on this drive:
Disk /dev/sdb: 3.64 TiB, 4000787030016 bytes, 7814037168 sectors Disk model: 008-2DR166 Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 4096 bytes I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Here is the output from running hdparm -I /dev/sdb on this drive:
/dev/sdb:
ATA device, with non-removable media
Model Number: ST4000VN008-2DR166
Serial Number: ZGY9ZXQL
Firmware Revision: SC60
Transport: Serial, ATA8-AST, SATA 1.0a, SATA II Extensions, SATA Rev 2.5, SATA Rev 2.6, SATA Rev 3.0
Standards:
Used: unknown (minor revision code 0x006d)
Supported: 10 9 8 7 6 5
Likely used: 10
Configuration:
Logical max current
cylinders 16383 16383
heads 16 16
sectors/track 63 63
--
CHS current addressable sectors: 16514064
LBA user addressable sectors: 268435455
LBA48 user addressable sectors: 7814037168
Logical Sector size: 512 bytes
Physical Sector size: 4096 bytes
Logical Sector-0 offset: 0 bytes
device size with M = 1024*1024: 3815447 MBytes
device size with M = 1000*1000: 4000787 MBytes (4000 GB)
cache/buffer size = 8192 KBytes
Form Factor: 3.5 inch
Nominal Media Rotation Rate: 5980
Capabilities:
LBA, IORDY(can be disabled)
Queue depth: 32
Standby timer values: spec'd by Standard, no device specific minimum
R/W multiple sector transfer: Max = 16 Current = ?
Advanced power management level: 128
Recommended acoustic management value: 254, current value: 0
DMA: mdma0 mdma1 mdma2 udma0 udma1 udma2 udma3 udma4 udma5 *udma6
Cycle time: min=120ns recommended=120ns
PIO: pio0 pio1 pio2 pio3 pio4
Cycle time: no flow control=120ns IORDY flow control=120ns
Commands/features:
Enabled Supported:
* SMART feature set
Security Mode feature set
* Power Management feature set
* Write cache
* Look-ahead
* Host Protected Area feature set
* WRITE_BUFFER command
* READ_BUFFER command
* DOWNLOAD_MICROCODE
* Advanced Power Management feature set
Power-Up In Standby feature set
* SET_FEATURES required to spinup after power up
SET_MAX security extension
* 48-bit Address feature set
* Device Configuration Overlay feature set
* Mandatory FLUSH_CACHE
* FLUSH_CACHE_EXT
* SMART error logging
* SMART self-test
* Media Card Pass-Through
* General Purpose Logging feature set
* WRITE_{DMA|MULTIPLE}_FUA_EXT
* 64-bit World wide name
* IDLE_IMMEDIATE with UNLOAD
Write-Read-Verify feature set
* WRITE_UNCORRECTABLE_EXT command
* {READ,WRITE}_DMA_EXT_GPL commands
* Segmented DOWNLOAD_MICROCODE
unknown 119[6]
* Gen1 signaling speed (1.5Gb/s)
* Gen2 signaling speed (3.0Gb/s)
* Gen3 signaling speed (6.0Gb/s)
* Native Command Queueing (NCQ)
* Phy event counters
* Idle-Unload when NCQ is active
* READ_LOG_DMA_EXT equivalent to READ_LOG_EXT
DMA Setup Auto-Activate optimization
Device-initiated interface power management
* Software settings preservation
unknown 78[7]
unknown 78[11]
* SMART Command Transport (SCT) feature set
* SCT Write Same (AC2)
* SCT Error Recovery Control (AC3)
* SCT Features Control (AC4)
* SCT Data Tables (AC5)
unknown 206[7]
unknown 206[12] (vendor specific)
unknown 206[14] (vendor specific)
* SANITIZE_ANTIFREEZE_LOCK_EXT command
* SANITIZE feature set
* OVERWRITE_EXT command
* DOWNLOAD MICROCODE DMA command
Security:
Master password revision code = 65534
supported
not enabled
not locked
not frozen
not expired: security count
supported: enhanced erase
428min for SECURITY ERASE UNIT. 428min for ENHANCED SECURITY ERASE UNIT.
Logical Unit WWN Device Identifier: 5000c500dd03f7f5
NAA : 5
IEEE OUI : 000c50
Unique ID : 0dd03f7f5
Checksum: correct
And here is the result from running smartctl -x /dev/sdb on this drive:
smartctl 7.5 2025-04-30 r5714 [x86_64-linux-7.0.0-30-generic] (local build)
Copyright (C) 2002-25, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Seagate IronWolf
Device Model: ST4000VN008-2DR166
Serial Number: ZGY9ZXQL
LU WWN Device Id: 5 000c50 0dd03f7f5
Firmware Version: SC60
User Capacity: 4,000,787,030,016 bytes [4.00 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Rotation Rate: 5980 rpm
Form Factor: 3.5 inches
Device is: In smartctl database 7.5/5706
ATA Version is: ACS-3 T13/2161-D revision 5
SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Fri Aug 28 13:54:35 2026 UTC
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Unavailable
APM level is: 128 (minimum power consumption without standby)
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, NOT FROZEN [SEC1]
=== START OF READ SMART DATA SECTION ===
SMART Status not supported: Incomplete response, ATA output registers missing
SMART overall-health self-assessment test result: PASSED
Warning: This result is based on an Attribute check.
General SMART Values:
Offline data collection status: (0x00) Offline data collection activity
was never started.
Auto Offline Data Collection: Disabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 581) seconds.
Offline data collection
capabilities: (0x73) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
No Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 1) minutes.
Extended self-test routine
recommended polling time: ( 594) minutes.
Conveyance self-test routine
recommended polling time: ( 2) minutes.
SCT capabilities: (0x50bd) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate POSR-- 100 064 044 - 0
3 Spin_Up_Time PO---- 094 094 000 - 0
4 Start_Stop_Count -O--CK 100 100 020 - 476
5 Reallocated_Sector_Ct PO--CK 100 100 010 - 0
7 Seek_Error_Rate POSR-- 084 060 045 - 278000070
9 Power_On_Hours -O--CK 097 097 000 - 2709 (125 170 0)
10 Spin_Retry_Count PO--C- 100 100 097 - 0
12 Power_Cycle_Count -O--CK 100 100 020 - 93
184 End-to-End_Error -O--CK 100 100 099 - 0
187 Reported_Uncorrect -O--CK 100 100 000 - 0
188 Command_Timeout -O--CK 100 099 000 - 0 0 1
189 High_Fly_Writes -O-RCK 100 100 000 - 0
190 Airflow_Temperature_Cel -O---K 070 062 040 - 30 (Min/Max 23/37)
191 G-Sense_Error_Rate -O--CK 100 100 000 - 0
192 Power-Off_Retract_Count -O--CK 100 100 000 - 491
193 Load_Cycle_Count -O--CK 097 097 000 - 6094
194 Temperature_Celsius -O---K 030 040 000 - 30 (0 17 0 0 0)
197 Current_Pending_Sector -O--C- 100 100 000 - 0
198 Offline_Uncorrectable ----C- 100 100 000 - 0
199 UDMA_CRC_Error_Count -OSRCK 200 200 000 - 0
240 Head_Flying_Hours ------ 100 253 000 - 1773h+15m+11.077s
241 Total_LBAs_Written ------ 100 253 000 - 135902946113
242 Total_LBAs_Read ------ 100 253 000 - 213060568360
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x02 SL R/O 5 Comprehensive SMART error log
0x03 GPL R/O 5 Ext. Comprehensive SMART error log
0x04 GPL,SL R/O 8 Device Statistics log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x09 SL R/W 1 Selective self-test log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x13 GPL R/O 1 SATA NCQ Send and Receive log
0x15 GPL R/W 1 Rebuild Assist log
0x21 GPL R/O 1 Write stream error log
0x22 GPL R/O 1 Read stream error log
0x24 GPL R/O 512 Current Device Internal Status Data log
0x30 GPL,SL R/O 9 IDENTIFY DEVICE data log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xa1 GPL,SL VS 24 Device vendor specific log
0xa2 GPL VS 8160 Device vendor specific log
0xa6 GPL VS 192 Device vendor specific log
0xa8-0xa9 GPL,SL VS 136 Device vendor specific log
0xab GPL VS 1 Device vendor specific log
0xb0 GPL VS 9048 Device vendor specific log
0xbe-0xbf GPL VS 65535 Device vendor specific log
0xc1 GPL,SL VS 16 Device vendor specific log
0xd1 GPL VS 136 Device vendor specific log
0xd2 GPL VS 10000 Device vendor specific log
0xd3 GPL VS 1920 Device vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (5 sectors)
No Errors Logged
SMART Extended Self-test Log Version: 1 (1 sectors)
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Extended offline Completed without error 00% 2706 -
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
SCT Status Version: 3
SCT Version (vendor specific): 522 (0x020a)
Device State: Active (0)
Current Temperature: 30 Celsius
Power Cycle Min/Max Temperature: 23/37 Celsius
Lifetime Min/Max Temperature: 17/38 Celsius
Under/Over Temperature Limit Count: 0/84
SCT Temperature History Version: 2
Temperature Sampling Period: 3 minutes
Temperature Logging Interval: 59 minutes
Min/Max recommended Temperature: 0/ 0 Celsius
Min/Max Temperature Limit: 0/ 0 Celsius
Temperature History Size (Index): 128 (105)
Index Estimated Time Temperature Celsius
106 2026-08-23 08:24 33 **************
... ..( 2 skipped). .. **************
109 2026-08-23 11:21 33 **************
110 2026-08-23 12:20 32 *************
111 2026-08-23 13:19 31 ************
112 2026-08-23 14:18 31 ************
113 2026-08-23 15:17 31 ************
114 2026-08-23 16:16 30 ***********
115 2026-08-23 17:15 30 ***********
116 2026-08-23 18:14 29 **********
117 2026-08-23 19:13 30 ***********
118 2026-08-23 20:12 30 ***********
119 2026-08-23 21:11 30 ***********
120 2026-08-23 22:10 31 ************
121 2026-08-23 23:09 32 *************
122 2026-08-24 00:08 33 **************
123 2026-08-24 01:07 32 *************
... ..( 3 skipped). .. *************
127 2026-08-24 05:03 32 *************
0 2026-08-24 06:02 33 **************
1 2026-08-24 07:01 33 **************
2 2026-08-24 08:00 34 ***************
3 2026-08-24 08:59 33 **************
4 2026-08-24 09:58 33 **************
5 2026-08-24 10:57 33 **************
6 2026-08-24 11:56 34 ***************
7 2026-08-24 12:55 34 ***************
8 2026-08-24 13:54 ? -
9 2026-08-24 14:53 23 ****
10 2026-08-24 15:52 ? -
11 2026-08-24 16:51 25 ******
12 2026-08-24 17:50 35 ****************
13 2026-08-24 18:49 36 *****************
14 2026-08-24 19:48 36 *****************
15 2026-08-24 20:47 36 *****************
16 2026-08-24 21:46 34 ***************
17 2026-08-24 22:45 34 ***************
18 2026-08-24 23:44 35 ****************
19 2026-08-25 00:43 ? -
20 2026-08-25 01:42 24 *****
21 2026-08-25 02:41 ? -
22 2026-08-25 03:40 23 ****
23 2026-08-25 04:39 35 ****************
24 2026-08-25 05:38 35 ****************
25 2026-08-25 06:37 34 ***************
26 2026-08-25 07:36 35 ****************
27 2026-08-25 08:35 34 ***************
28 2026-08-25 09:34 34 ***************
29 2026-08-25 10:33 35 ****************
30 2026-08-25 11:32 36 *****************
31 2026-08-25 12:31 36 *****************
32 2026-08-25 13:30 35 ****************
... ..( 2 skipped). .. ****************
35 2026-08-25 16:27 35 ****************
36 2026-08-25 17:26 34 ***************
37 2026-08-25 18:25 32 *************
38 2026-08-25 19:24 34 ***************
39 2026-08-25 20:23 36 *****************
... ..( 3 skipped). .. *****************
43 2026-08-26 00:19 36 *****************
44 2026-08-26 01:18 35 ****************
45 2026-08-26 02:17 36 *****************
46 2026-08-26 03:16 36 *****************
47 2026-08-26 04:15 35 ****************
... ..( 5 skipped). .. ****************
53 2026-08-26 10:09 35 ****************
54 2026-08-26 11:08 34 ***************
... ..( 3 skipped). .. ***************
58 2026-08-26 15:04 34 ***************
59 2026-08-26 16:03 36 *****************
60 2026-08-26 17:02 37 ******************
... ..( 7 skipped). .. ******************
68 2026-08-27 00:54 37 ******************
69 2026-08-27 01:53 36 *****************
70 2026-08-27 02:52 35 ****************
71 2026-08-27 03:51 35 ****************
72 2026-08-27 04:50 35 ****************
73 2026-08-27 05:49 36 *****************
74 2026-08-27 06:48 36 *****************
75 2026-08-27 07:47 36 *****************
76 2026-08-27 08:46 35 ****************
77 2026-08-27 09:45 35 ****************
78 2026-08-27 10:44 35 ****************
79 2026-08-27 11:43 34 ***************
80 2026-08-27 12:42 35 ****************
... ..( 4 skipped). .. ****************
85 2026-08-27 17:37 35 ****************
86 2026-08-27 18:36 36 *****************
87 2026-08-27 19:35 37 ******************
88 2026-08-27 20:34 37 ******************
89 2026-08-27 21:33 37 ******************
90 2026-08-27 22:32 36 *****************
91 2026-08-27 23:31 35 ****************
92 2026-08-28 00:30 35 ****************
93 2026-08-28 01:29 34 ***************
94 2026-08-28 02:28 32 *************
95 2026-08-28 03:27 32 *************
96 2026-08-28 04:26 31 ************
97 2026-08-28 05:25 35 ****************
... ..( 3 skipped). .. ****************
101 2026-08-28 09:21 35 ****************
102 2026-08-28 10:20 34 ***************
103 2026-08-28 11:19 32 *************
104 2026-08-28 12:18 30 ***********
105 2026-08-28 13:17 30 ***********
SMART WRITE LOG does not return COUNT and LBA_LOW register
SCT (Get) Error Recovery Control command failed
Device Statistics (GP Log 0x04)
Page Offset Size Value Flags Description
0x01 ===== = = === == General Statistics (rev 1) ==
0x01 0x008 4 93 --- Lifetime Power-On Resets
0x01 0x010 4 2709 --- Power-on Hours
0x01 0x018 6 135892014017 --- Logical Sectors Written
0x01 0x020 6 661825138 --- Number of Write Commands
0x01 0x028 6 213060568336 --- Logical Sectors Read
0x01 0x030 6 942594650 --- Number of Read Commands
0x01 0x038 6 - --- Date and Time TimeStamp
0x03 ===== = = === == Rotating Media Statistics (rev 1) ==
0x03 0x008 4 2546261222 N-- Spindle Motor Power-on Hours
0x03 0x010 4 2546258875 N-- Head Flying Hours
0x03 0x018 4 6094 --- Head Load Events
0x03 0x020 4 0 --- Number of Reallocated Logical Sectors
0x03 0x028 4 0 --- Read Recovery Attempts
0x03 0x030 4 0 --- Number of Mechanical Start Failures
0x03 0x038 4 0 --- Number of Realloc. Candidate Logical Sectors
0x03 0x040 4 492 --- Number of High Priority Unload Events
0x04 ===== = = === == General Errors Statistics (rev 1) ==
0x04 0x008 4 0 --- Number of Reported Uncorrectable Errors
0x04 0x010 4 1 --- Resets Between Cmd Acceptance and Completion
0x05 ===== = = === == Temperature Statistics (rev 1) ==
0x05 0x008 1 30 --- Current Temperature
0x05 0x010 1 34 --- Average Short Term Temperature
0x05 0x018 1 29 --- Average Long Term Temperature
0x05 0x020 1 38 --- Highest Temperature
0x05 0x028 1 0 --- Lowest Temperature
0x05 0x030 1 35 --- Highest Average Short Term Temperature
0x05 0x038 1 26 --- Lowest Average Short Term Temperature
0x05 0x040 1 32 --- Highest Average Long Term Temperature
0x05 0x048 1 29 --- Lowest Average Long Term Temperature
0x05 0x050 4 0 --- Time in Over-Temperature
0x05 0x058 1 70 --- Specified Maximum Operating Temperature
0x05 0x060 4 0 --- Time in Under-Temperature
0x05 0x068 1 0 --- Specified Minimum Operating Temperature
0x06 ===== = = === == Transport Statistics (rev 1) ==
0x06 0x008 4 1131 --- Number of Hardware Resets
0x06 0x010 4 732 --- Number of ASR Events
0x06 0x018 4 0 --- Number of Interface CRC Errors
|||_ C monitored condition met
||__ D supports DSN
|___ N normalized value
Pending Defects log (GP Log 0x0c) not supported
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x000a 2 9 Device-to-host register FISes sent due to a COMRESET
0x0001 2 0 Command failed due to ICRC error
0x0003 2 0 R_ERR response for device-to-host data FIS
0x0004 2 0 R_ERR response for host-to-device data FIS
0x0006 2 0 R_ERR response for device-to-host non-data FIS
0x0007 2 0 R_ERR response for host-to-device non-data FIS
Seagate FARM log (GP Log 0xa6) supported [try: -l farm]
Share
