Robert Elder Software Inc's Store

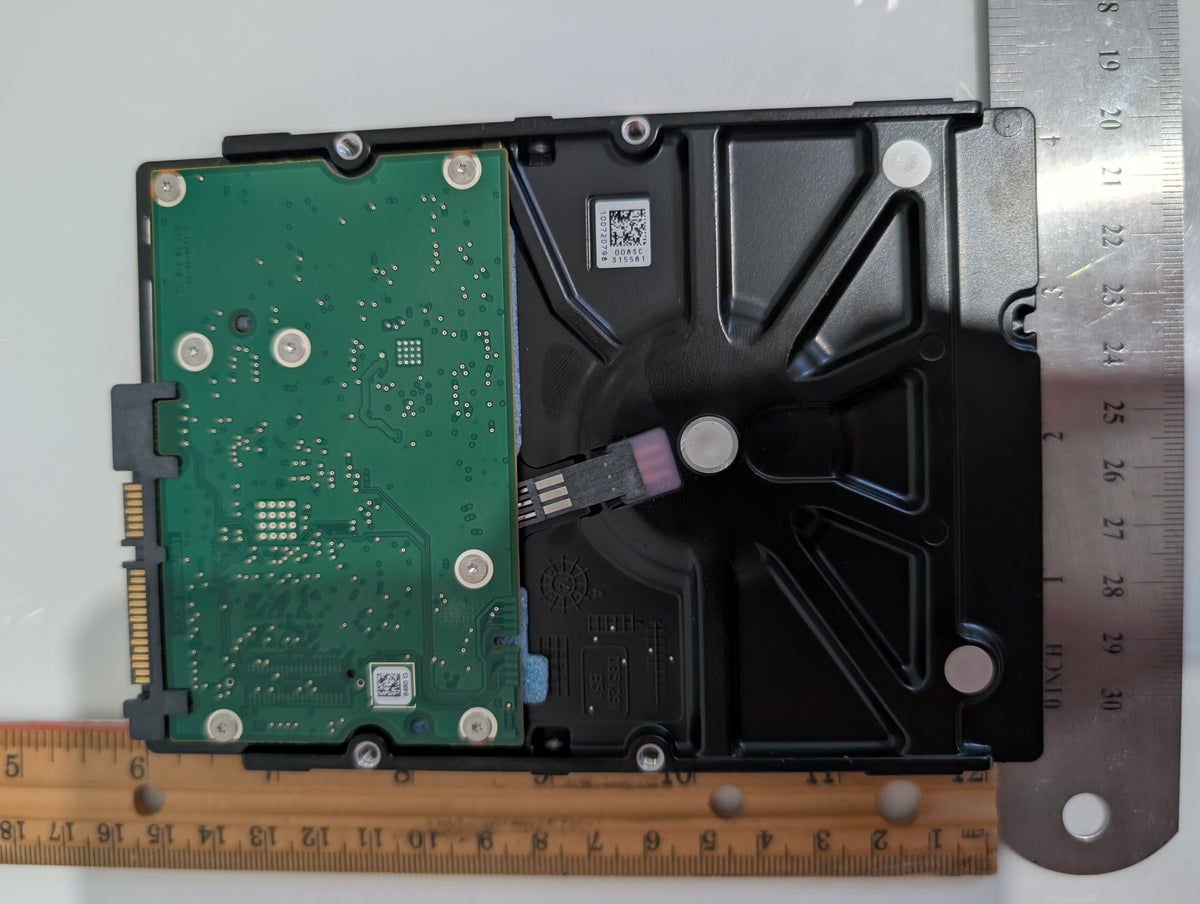

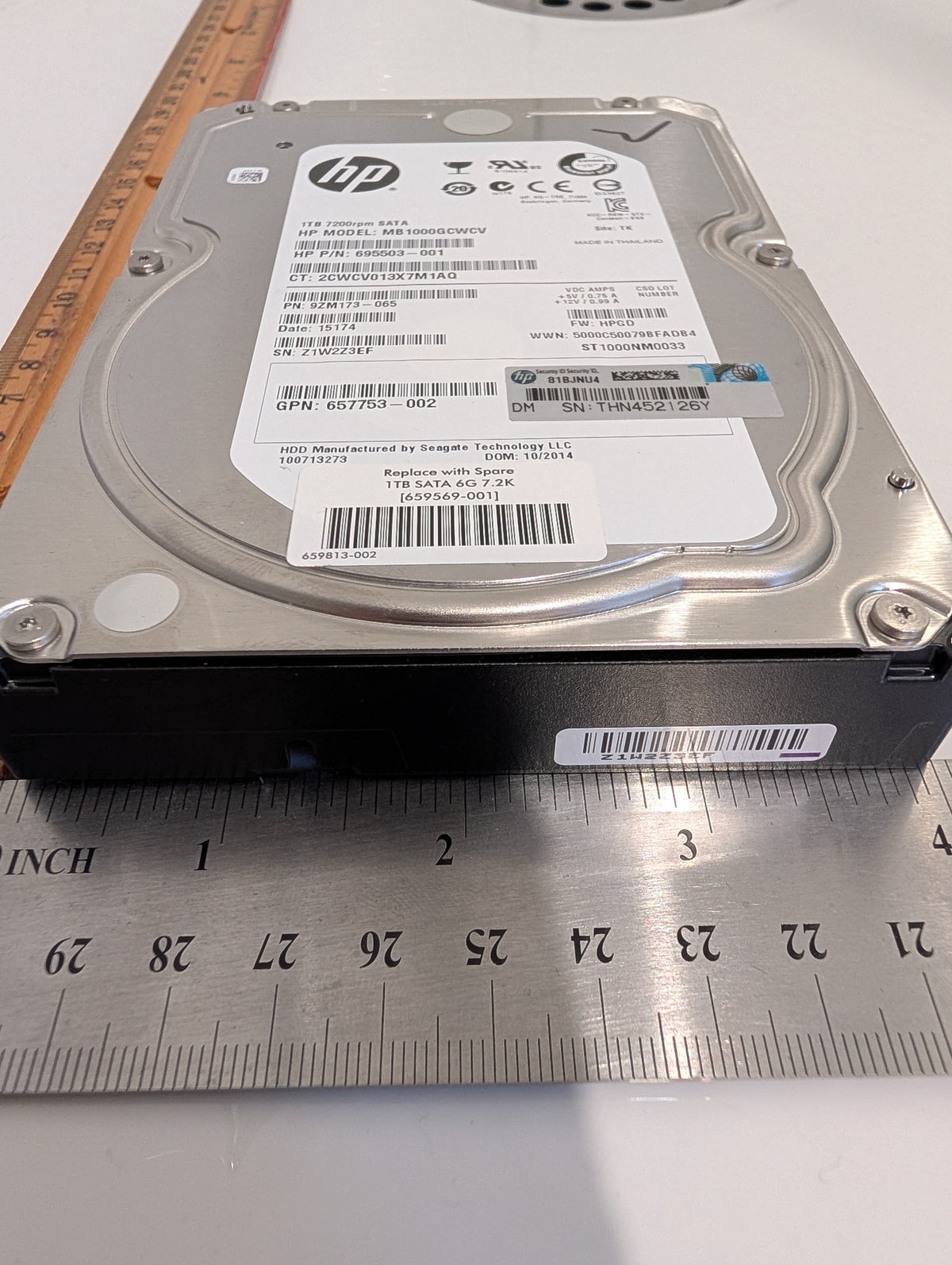

1TB Seagate Constellation ES.3 Enterprise Hard Drive (78 Powered On Hours)
1TB Seagate Constellation ES.3 Enterprise Hard Drive (78 Powered On Hours)
Regular price
$44.00 CAD
Regular price
Sale price
$44.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
This is a 'used' Seagate Constellation ES.3 Hard Drive 7200 RPM Serial, SATA Rev 3.0. with 78 powered on hours.
This drive still works perfectly and it passes multiple passes with badblocks and an extended smart test.
When I first started up this drive, it had 0 powered on hours. The 78 hours are from my initial testing.
NOTE: When this particular drive boots up it will have write caching *disabled* by default. This is not typical and may lead to unexpectedly poor write performance if you don't enable write caching. Since this is an enterprise drive, write caching was likely disabled on boot by default in the firmware to fit the customer's needs (which was probably higher reliability in the event of unexpected power loss). If you don't understand what this means, then you probably shouldn't buy this hard drive.It's possible that windows may automatically enable write caching at boot for this drive, but I don't know for sure and I offer no guarantee about such behaviour.
On Linux, you can turn on write caching using the 'hdparm' command:
sudo hdparm -W 1 /dev/sdX
However, this change will only last until the next reboot. To make the change permanent, you will probably need to add a custom udev rule.

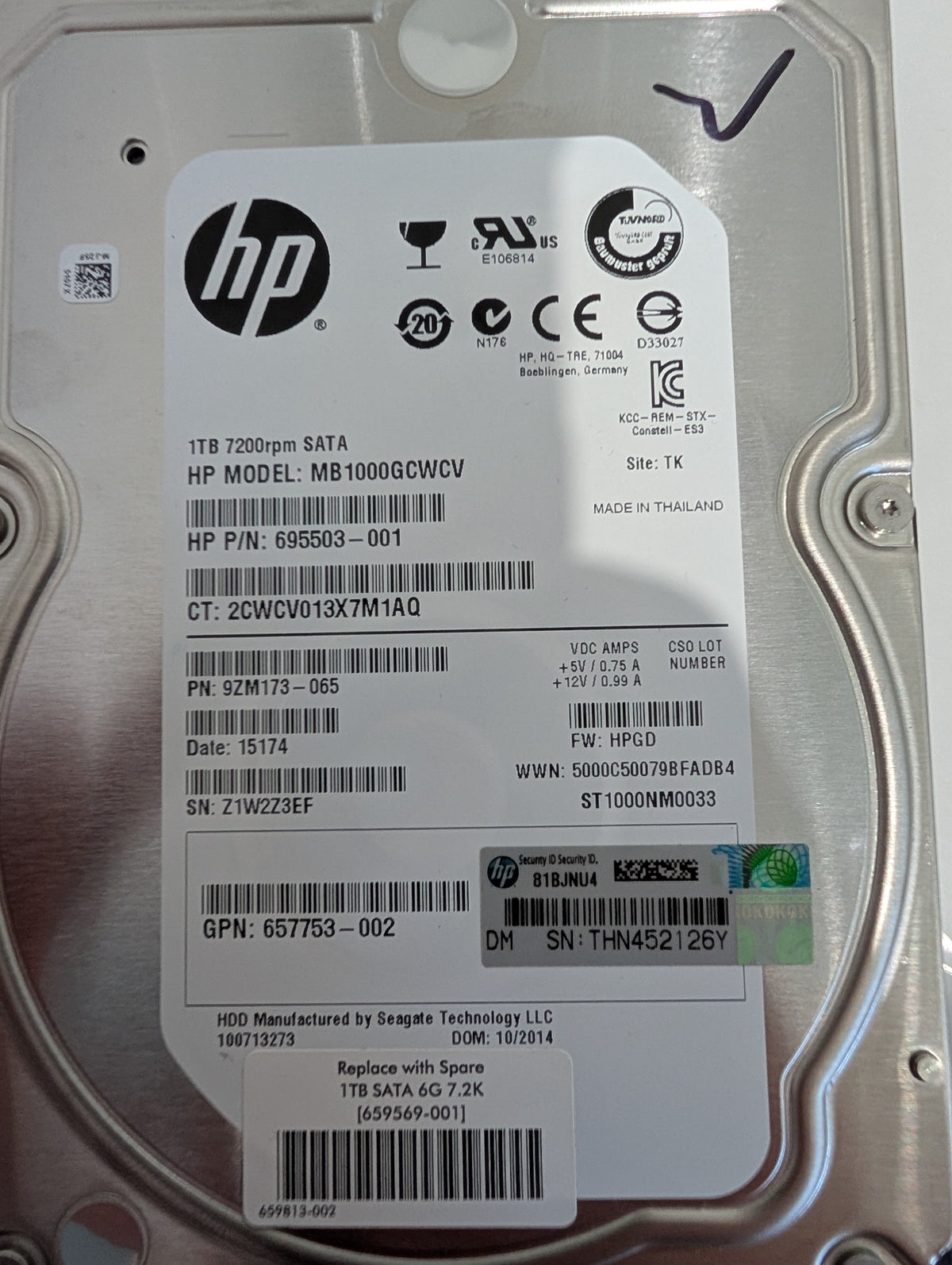

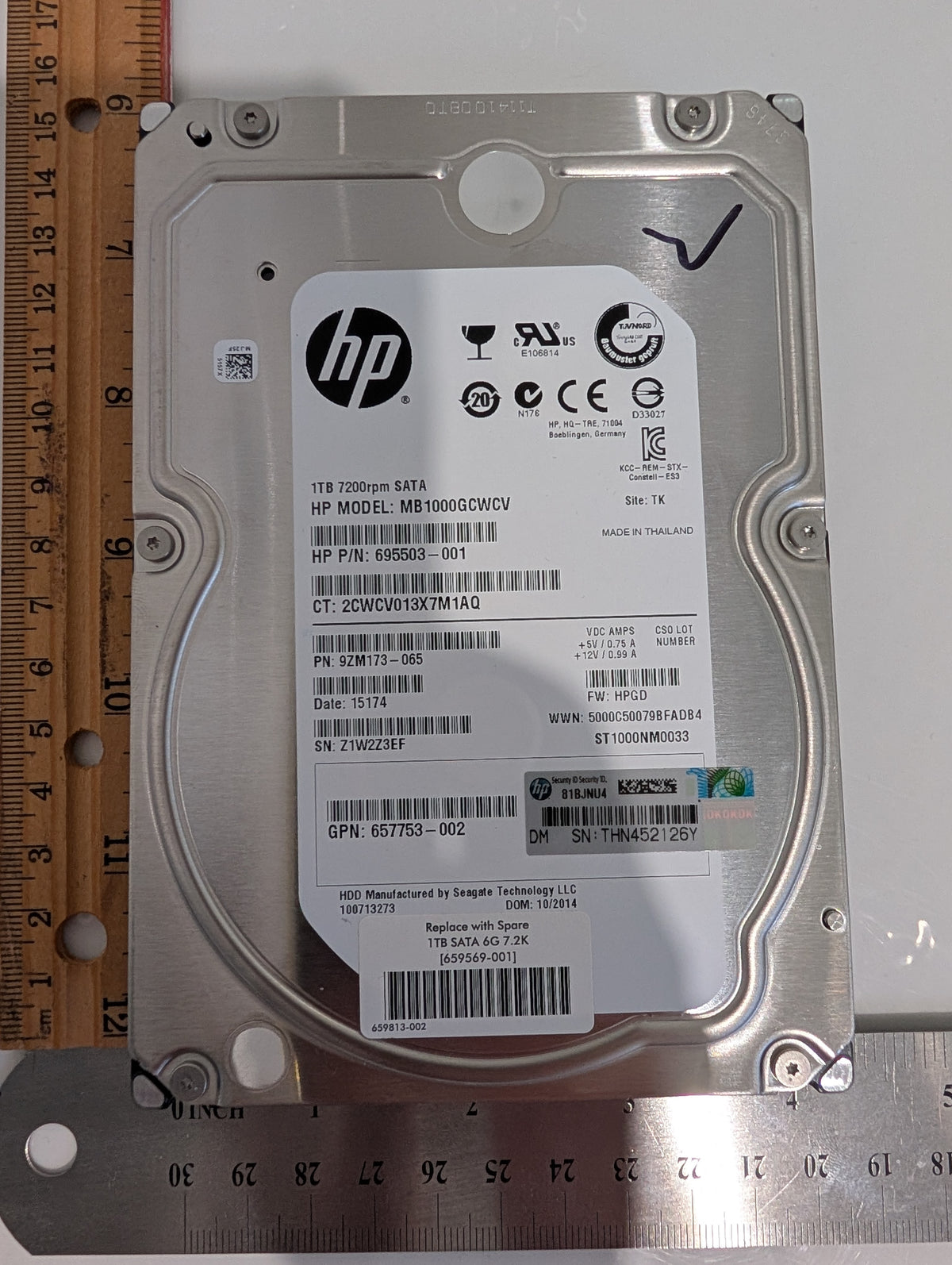

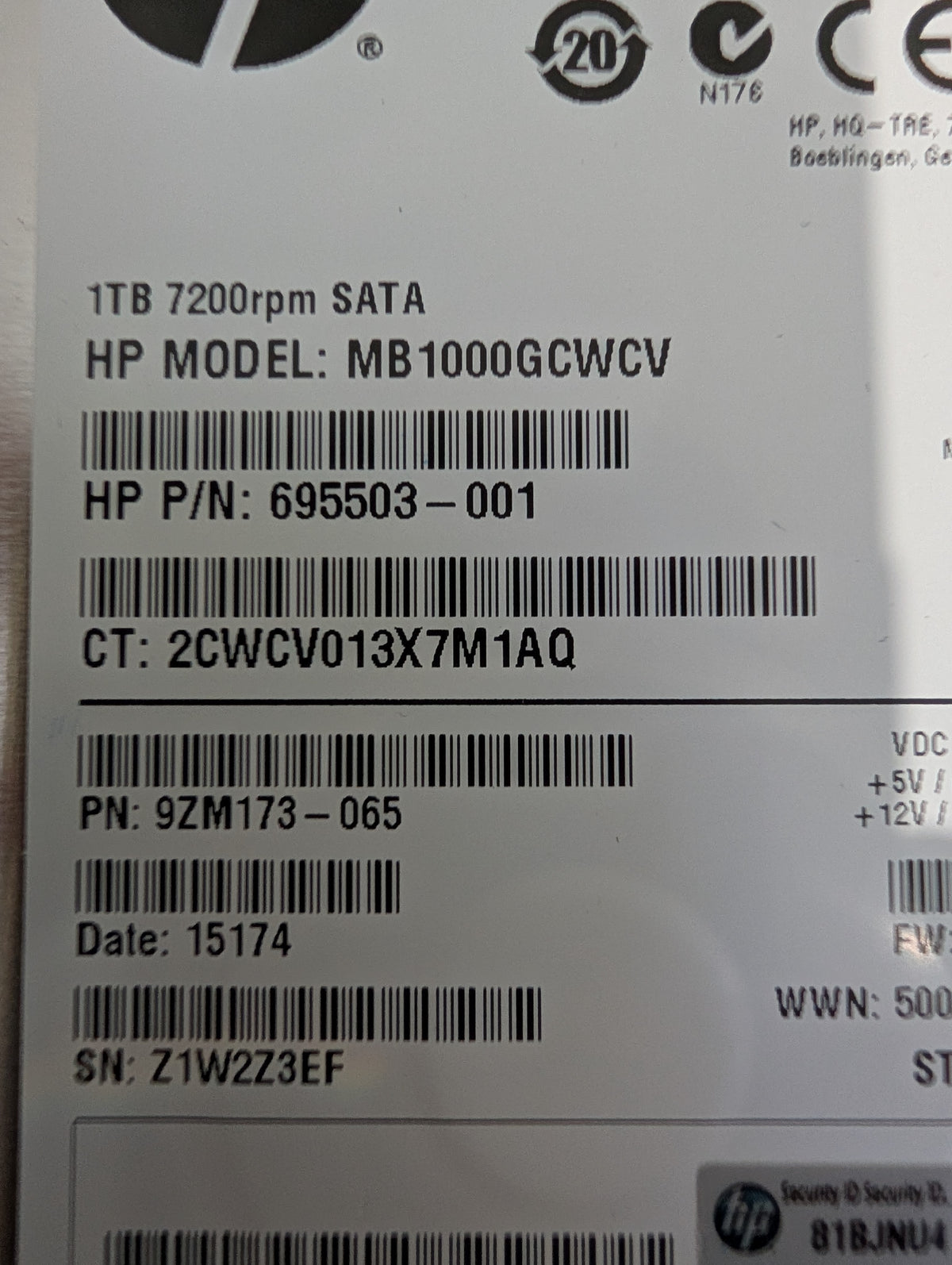

You will receive the exact same drive with the serial number shown in the images.
Since this is a used drive, it is being sold 'as is' and without warranty. I can personally certify that the output shown below is real and was actually run on this specific drive by me, and also that I ran badblocks tests on this specific drive and found no issues.
Here is the output from running fdisk -l /dev/sde on this drive:
Disk /dev/sde: 931.51 GiB, 1000204886016 bytes, 1953525168 sectors Disk model: USB3.0 DISK03 Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes
Here is the output from running hdparm -I /dev/sde on this drive:
/dev/sde:
ATA device, with non-removable media
Model Number: MB1000GCWCV
Serial Number: Z1W2Z3EF
Firmware Revision: HPGD
Transport: Serial, SATA Rev 3.0
Standards:
Used: unknown (minor revision code 0x0028)
Supported: 9 8 7 6 5
Likely used: 9
Configuration:
Logical max current
cylinders 16383 16383
heads 16 16
sectors/track 63 63
--
CHS current addressable sectors: 16514064
LBA user addressable sectors: 268435455
LBA48 user addressable sectors: 1953525168
Logical Sector size: 512 bytes
Physical Sector size: 512 bytes
Logical Sector-0 offset: 0 bytes
device size with M = 1024*1024: 953869 MBytes
device size with M = 1000*1000: 1000204 MBytes (1000 GB)
cache/buffer size = unknown
Form Factor: 3.5 inch
Nominal Media Rotation Rate: 7200
Capabilities:
LBA, IORDY(can be disabled)
Queue depth: 32
Standby timer values: spec'd by Standard, with device specific minimum
R/W multiple sector transfer: Max = 16 Current = ?
Recommended acoustic management value: 254, current value: 0
DMA: mdma0 mdma1 mdma2 udma0 udma1 udma2 udma3 udma4 udma5 *udma6
Cycle time: min=120ns recommended=120ns
PIO: pio0 pio1 pio2 pio3 pio4
Cycle time: no flow control=120ns IORDY flow control=120ns
Commands/features:
Enabled Supported:
* SMART feature set
* Power Management feature set
* Write cache
* Look-ahead
* WRITE_BUFFER command
* READ_BUFFER command
* NOP cmd
* DOWNLOAD_MICROCODE
* 48-bit Address feature set
* Device Configuration Overlay feature set
* Mandatory FLUSH_CACHE
* FLUSH_CACHE_EXT
* SMART error logging
* SMART self-test
* General Purpose Logging feature set
* WRITE_{DMA|MULTIPLE}_FUA_EXT
* 64-bit World wide name
* IDLE_IMMEDIATE with UNLOAD
Write-Read-Verify feature set
* WRITE_UNCORRECTABLE_EXT command
* {READ,WRITE}_DMA_EXT_GPL commands
* Segmented DOWNLOAD_MICROCODE
unknown 119[6]
* unknown 119[7]
* Gen1 signaling speed (1.5Gb/s)
* Gen2 signaling speed (3.0Gb/s)
* Gen3 signaling speed (6.0Gb/s)
* Native Command Queueing (NCQ)
* Phy event counters
* Idle-Unload when NCQ is active
* NCQ priority information
* READ_LOG_DMA_EXT equivalent to READ_LOG_EXT
DMA Setup Auto-Activate optimization
* Software settings preservation
unknown 78[7]
* SMART Command Transport (SCT) feature set
* SCT Write Same (AC2)
* SCT Error Recovery Control (AC3)
* SCT Features Control (AC4)
* SCT Data Tables (AC5)
unknown 206[12] (vendor specific)
Logical Unit WWN Device Identifier: 5000c50079bfadb4
NAA : 5
IEEE OUI : 000c50
Unique ID : 079bfadb4
Checksum: correct
And here is the result from running smartctl -x /dev/sde on this drive:
smartctl 7.5 2025-04-30 r5714 [x86_64-linux-7.0.0-31-generic] (local build)
Copyright (C) 2002-25, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Seagate Constellation ES.3
Device Model: MB1000GCWCV
Serial Number: Z1W2Z3EF
LU WWN Device Id: 5 000c50 079bfadb4
Firmware Version: HPGD
User Capacity: 1,000,204,886,016 bytes [1.00 TB]
Sector Size: 512 bytes logical/physical
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Device is: In smartctl database 7.5/5706
ATA Version is: ACS-2, ATA8-ACS T13/1699-D revision 6
SATA Version is: SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Tue Sep 15 03:03:27 2026 UTC
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Unavailable
APM feature is: Unavailable
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Unavailable
=== START OF READ SMART DATA SECTION ===
SMART Status not supported: Incomplete response, ATA output registers missing
SMART overall-health self-assessment test result: PASSED
Warning: This result is based on an Attribute check.
General SMART Values:
Offline data collection status: (0x82) Offline data collection activity
was completed without error.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 592) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 120) minutes.
Conveyance self-test routine
recommended polling time: ( 3) minutes.
SCT capabilities: (0x103d) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate POSR-- 081 066 044 - 123641667
3 Spin_Up_Time PO---- 097 097 070 - 0
5 Reallocated_Sector_Ct PO--CK 100 100 010 - 0
7 Seek_Error_Rate POSR-- 069 060 030 - 7617644
9 Power_On_Hours -O--CK 100 100 000 - 78
10 Spin_Retry_Count PO--C- 100 100 097 - 0
180 Unknown_HDD_Attribute PO-RCK 100 100 030 - 0
194 Temperature_Celsius -O---K 036 040 000 - 36 (0 21 0 0 0)
196 Reallocated_Event_Count PO--CK 100 100 010 - 0
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x02 SL R/O 5 Comprehensive SMART error log
0x03 GPL R/O 5 Ext. Comprehensive SMART error log
0x04 GPL,SL R/O 8 Device Statistics log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x08 GPL,SL R/O 2 Power Conditions log
0x09 SL R/W 1 Selective self-test log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x21 GPL R/O 1 Write stream error log
0x22 GPL R/O 1 Read stream error log
0x24 GPL R/O 512 Current Device Internal Status Data log
0x30 GPL,SL R/O 9 IDENTIFY DEVICE data log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xa1 GPL,SL VS 20 Device vendor specific log
0xa2 GPL VS 4496 Device vendor specific log
0xa8 GPL,SL VS 129 Device vendor specific log
0xa9 GPL,SL VS 1 Device vendor specific log
0xb0 GPL VS 5176 Device vendor specific log
0xb5 SL VS 1 Device vendor specific log
0xb6 GPL VS 1918 Device vendor specific log
0xbd GPL VS 512 Device vendor specific log
0xbe-0xbf GPL VS 65535 Device vendor specific log
0xc1 GPL,SL VS 10 Device vendor specific log
0xc2 GPL,SL VS 50 Device vendor specific log
0xc3 GPL,SL VS 8 Device vendor specific log
0xc4 GPL,SL VS 5 Device vendor specific log
0xd0 GPL VS 1 Device vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (5 sectors)
No Errors Logged
SMART Extended Self-test Log Version: 1 (1 sectors)
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Extended offline Completed without error 00% 77 -
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
SCT Status Version: 3
SCT Version (vendor specific): 522 (0x020a)
Device State: Active (0)
Current Temperature: 36 Celsius
Power Cycle Min/Max Temperature: 21/40 Celsius
Lifetime Min/Max Temperature: 21/40 Celsius
Specified Max Operating Temperature: 60 Celsius
Under/Over Temperature Limit Count: 0/471
SCT Temperature History Version: 2
Temperature Sampling Period: 1 minute
Temperature Logging Interval: 10 minutes
Min/Max recommended Temperature: 0/ 0 Celsius
Min/Max Temperature Limit: 0/ 0 Celsius
Temperature History Size (Index): 128 (96)
Index Estimated Time Temperature Celsius
97 2026-09-14 05:50 38 *******************
... ..( 26 skipped). .. *******************
124 2026-09-14 10:20 38 *******************
125 2026-09-14 10:30 37 ******************
... ..( 2 skipped). .. ******************
0 2026-09-14 11:00 37 ******************
1 2026-09-14 11:10 36 *****************
2 2026-09-14 11:20 35 ****************
... ..( 22 skipped). .. ****************
25 2026-09-14 15:10 35 ****************
26 2026-09-14 15:20 36 *****************
... ..( 15 skipped). .. *****************
42 2026-09-14 18:00 36 *****************
43 2026-09-14 18:10 37 ******************
... ..( 18 skipped). .. ******************
62 2026-09-14 21:20 37 ******************
63 2026-09-14 21:30 36 *****************
... ..( 15 skipped). .. *****************
79 2026-09-15 00:10 36 *****************
80 2026-09-15 00:20 37 ******************
81 2026-09-15 00:30 37 ******************
82 2026-09-15 00:40 38 *******************
83 2026-09-15 00:50 39 ********************
84 2026-09-15 01:00 40 *********************
... ..( 5 skipped). .. *********************
90 2026-09-15 02:00 40 *********************
91 2026-09-15 02:10 39 ********************
92 2026-09-15 02:20 39 ********************
93 2026-09-15 02:30 38 *******************
94 2026-09-15 02:40 37 ******************
95 2026-09-15 02:50 36 *****************
96 2026-09-15 03:00 36 *****************
SMART WRITE LOG does not return COUNT and LBA_LOW register
SCT (Get) Error Recovery Control command failed
Device Statistics (GP Log 0x04)
Page Offset Size Value Flags Description
0x01 ===== = = === == General Statistics (rev 2) ==
0x01 0x008 4 5 --- Lifetime Power-On Resets
0x01 0x010 4 78 --- Power-on Hours
0x01 0x018 6 7837870274 --- Logical Sectors Written
0x01 0x020 6 61073419 --- Number of Write Commands
0x01 0x028 6 7837745222 --- Logical Sectors Read
0x01 0x030 6 61143248 --- Number of Read Commands
0x01 0x038 6 - --- Date and Time TimeStamp
0x03 ===== = = === == Rotating Media Statistics (rev 1) ==
0x03 0x008 4 78 --- Spindle Motor Power-on Hours
0x03 0x010 4 78 --- Head Flying Hours
0x03 0x018 4 12 --- Head Load Events
0x03 0x020 4 0 --- Number of Reallocated Logical Sectors
0x03 0x028 4 0 --- Read Recovery Attempts
0x03 0x030 4 0 --- Number of Mechanical Start Failures
0x04 ===== = = === == General Errors Statistics (rev 1) ==
0x04 0x008 4 0 --- Number of Reported Uncorrectable Errors
0x04 0x010 4 0 --- Resets Between Cmd Acceptance and Completion
|||_ C monitored condition met
||__ D supports DSN
|___ N normalized value
Pending Defects log (GP Log 0x0c) not supported
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x000a 2 6 Device-to-host register FISes sent due to a COMRESET
0x0001 2 0 Command failed due to ICRC error
0x0003 2 0 R_ERR response for device-to-host data FIS
0x0004 2 0 R_ERR response for host-to-device data FIS
0x0006 2 0 R_ERR response for device-to-host non-data FIS
0x0007 2 0 R_ERR response for host-to-device non-data FIS
Share
